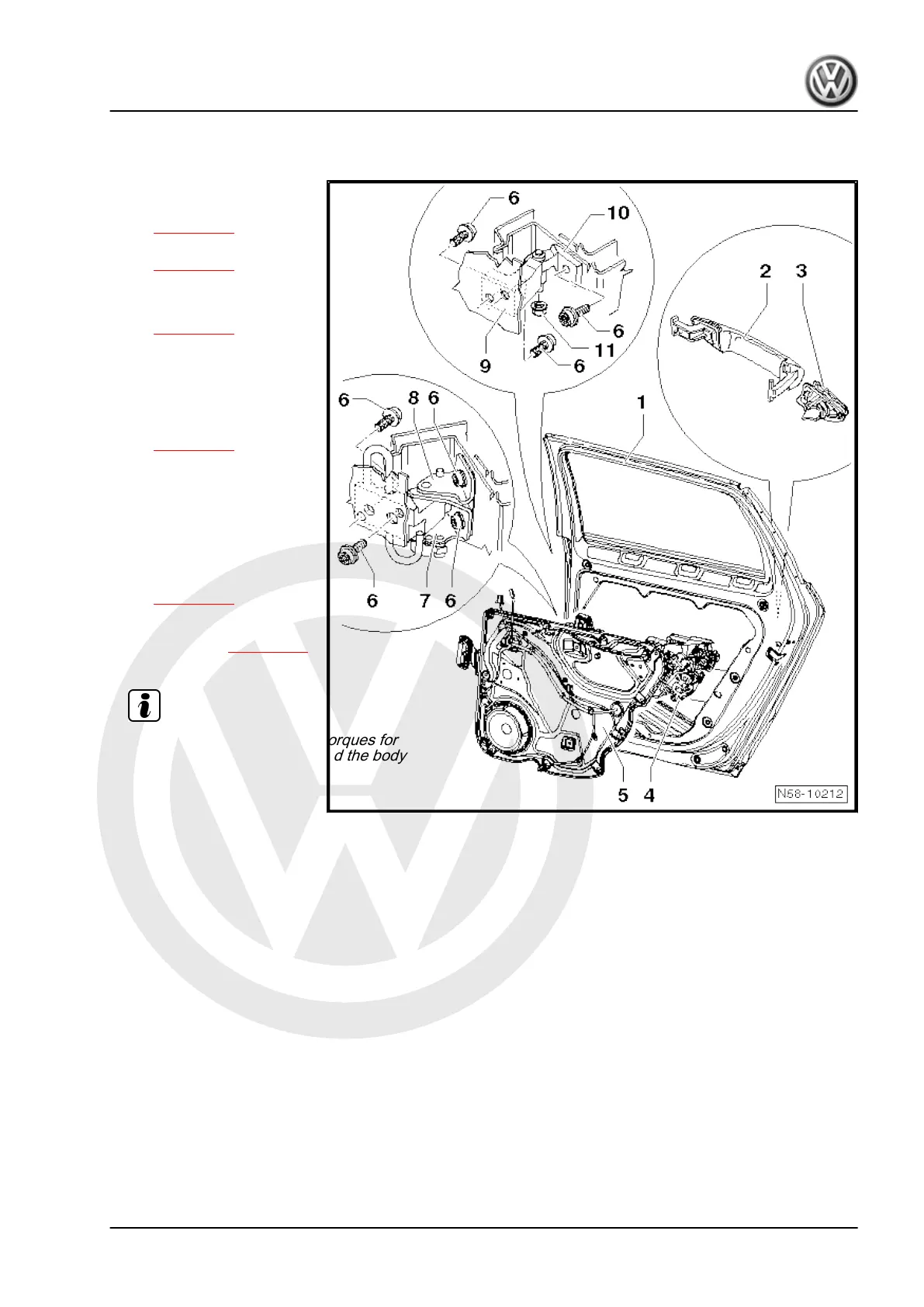

2.2 Assembly overview - rear door
1 - Door
❑ Removing and installing
⇒ page 142
❑ Adjusting door
⇒ page 145
2 - Door handle with base
❑ Removing and installing
⇒ page 158
❑ Removing door handle
for access and start au‐
thorisation
3 - Lock cylinder housing
❑ Removing and installing
⇒ page 157
❑ Without cylinder lock.
4 - Door lock
❑ The door lock can be re‐
moved only together
with the assembly carri‐
er.
❑ Removing and installing
⇒ page 161
5 - Subframe
❑ Removing ⇒ page 148
6 - Multi-point socket head bolt
Note
The different specified torques for
tightening to the door and the body
must be complied with.
❑ Specified torque to
body: 20 Nm +
1
/
4
turn
(90°) further
❑ Specified torque to door: (50 Nm)
❑ Always renew bolts after loosening.
7 - Door hinge with arrester
❑ Lower part
❑ The hinge is split.
8 - Door hinge
❑ Upper part is pushed onto lower part of hinge
❑ The hinge is split.
9 - Door hinge
❑ Lower part is attached to upper part of hinge with nut -11-
❑ The hinge is split.
10 - Door hinge
❑ Upper part is attached to lower part of hinge with nut -11-
❑ The hinge is split.
Passat 2011 ➤ , Passat Variant 2011 ➤
General body repairs, exterior - Edition 06.2019
2. Rear door (estate) 139
