7 Skid plate

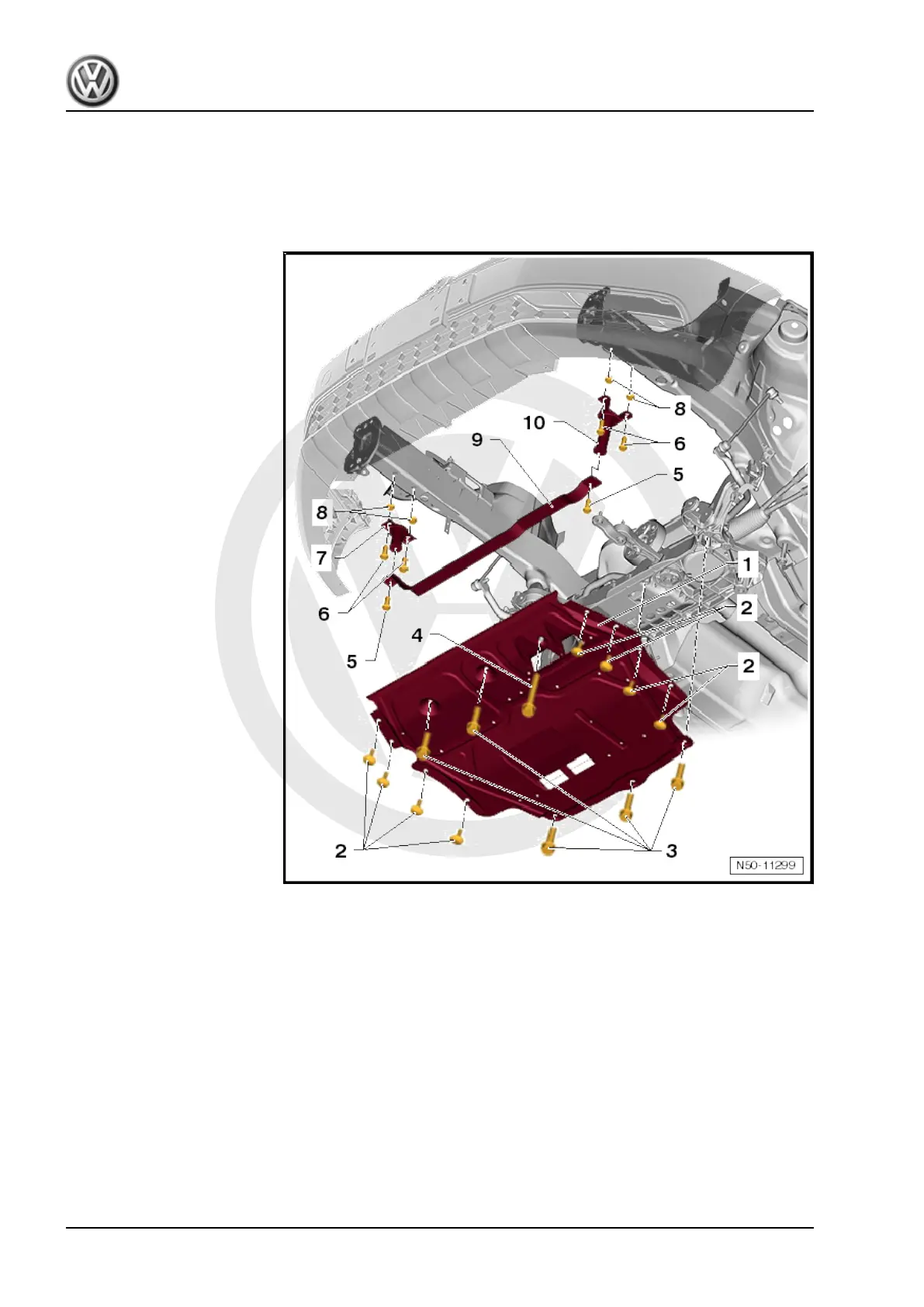

7.1 Assembly overview - skid plate
1 - Skid plate
2 - Bolt
❑ Qty. 8
❑ Specified torque: 2 Nm
3 - Bolt
❑ Bolts are microencap‐
sulated.
❑ Bolts must always be re‐
placed by new ones af‐
ter being removed.
❑ Qty. 5
❑ Specified torque: 20 Nm
4 - Bolt
❑ Qty. 1
❑ Specified torque: 20 Nm
5 - Bolt
❑ Qty. 2
❑ Specified torque: 20 Nm
6 - Bolt
❑ Qty. 2 on each side
❑ Specified torque: 35 Nm
7 - Right bracket for cross-
piece
8 - Threaded rivet
❑ Qty. 2 on each side
9 - Cross-piece
10 - Left bracket for cross piece
Passat 2011 ➤ , Passat Variant 2011 ➤
General body repairs, exterior - Edition 06.2019
426 Rep. gr.66 - Exterior equipment
