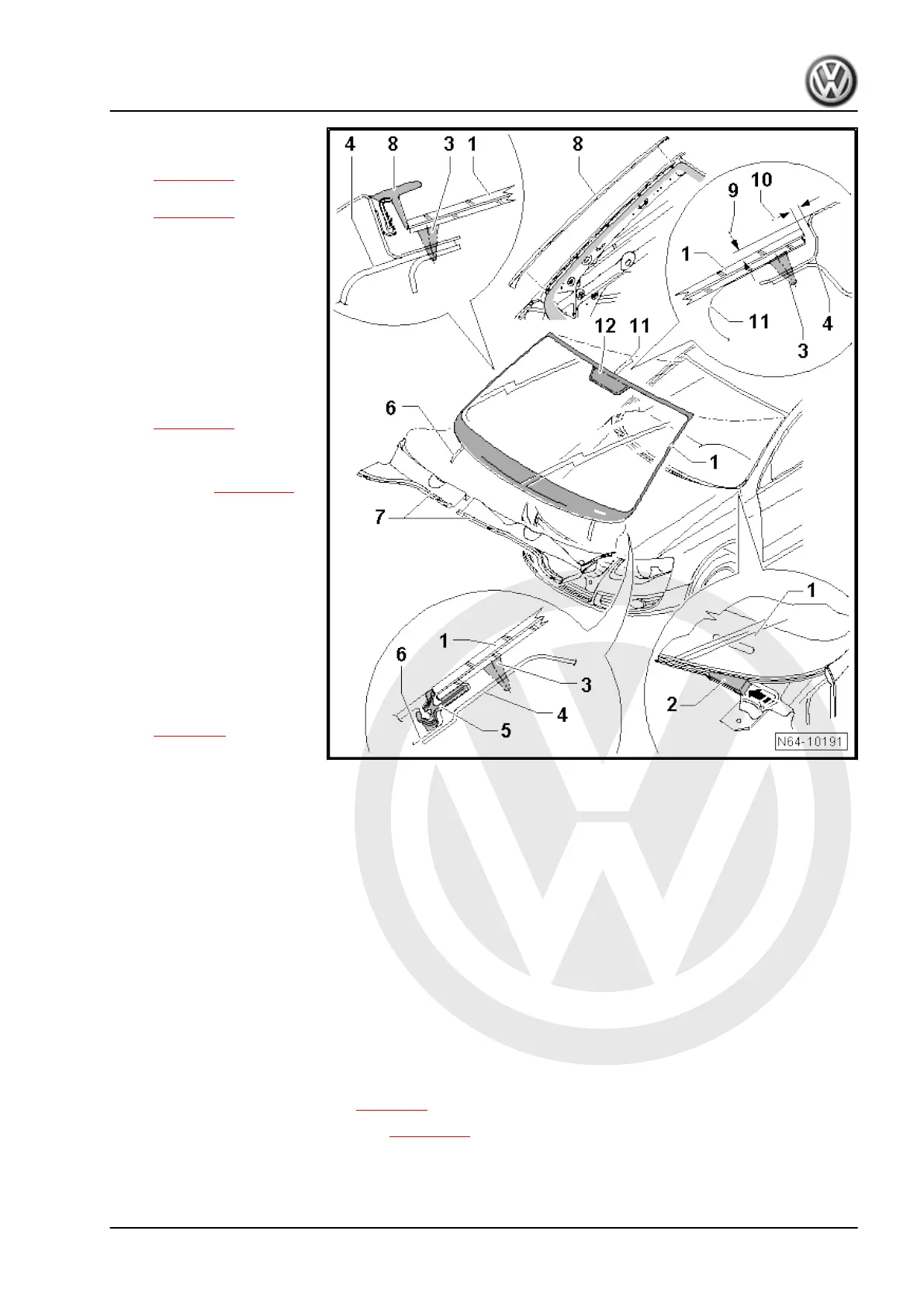

1 - Windscreen
❑ Removing windscreen
⇒ page 323 .
❑ Installing windscreen
⇒ page 325 .
2 - Windscreen adjuster
❑ 443 845 631 A
3 - PUR adhesive sealant
❑ Cross section of bead:
Width = 7 mm Height =
11 mm (including pre‐
coating, residual materi‐
al on window glass and
window flange).
❑ Minimum curing period
⇒ page 341 .
4 - Body flange
❑ Touch up paintwork
damage ⇒ page 341 .
5 - Windscreen seal
❑ Is part of windscreen.
6 - Electrical connections
❑ Wire for windscreen
heating
7 - Plenum chamber cover
❑ Must be removed from
windscreen seal by
hand only.
❑ Removing and installing
plenum chamber cover
⇒ page 17
8 - Water deflector
9 - Height dimension
❑ From windscreen surface to roof upper edge
❑ Set dimension equally to 2.5 mm using setting gauge - 3371- .
10 - Gaps/shut lines
❑ From windscreen upper edge to roof edge
❑ Set dimension equally to 2.5 mm using setting gauge - 3371- .
11 - Electrical connections
❑ Wire for earth connection
12 - Communication window
❑ For insulated glass only.
❑ No IR coating in this area; serves to allow electronic components (accessories) to function.
1.5 Removing windscreen
– Remove plenum chamber cover ⇒ page 17 .
– Remove left and right water deflector ⇒ page 410 .
– Remove A-pillar trim ⇒ General body repairs, interior; Rep.
gr. 70 ; Pillar trims .
Passat 2011 ➤ , Passat Variant 2011 ➤
General body repairs, exterior - Edition 06.2019
1. Flush bonded windows 323
