14 - Cover
❑ Qty. 2
15 - Bolt
❑ For door lock
❑ Qty. 2
❑ Specified torque: 20 Nm
16 - Clamping bracket
17 - Spreader pin
❑ For securing door window
18 - Spreader plug
❑ For securing door window
19 - Cover
20 - Loudspeakers
❑ Attached with 3 rivets.
21 - Rivet
❑ Qty. 3
22 - Bolt
❑ Qty. 10
❑ Specified torque: 8 Nm
23 - Connector
3.3 Removing and installing door window
Note
Removal and installation are described only for the right rear door
window. The removal and installation of the left rear door window
is similar.
3.3.1 Removing window slot seal
Note
Window slot seal should not be bent when removing.

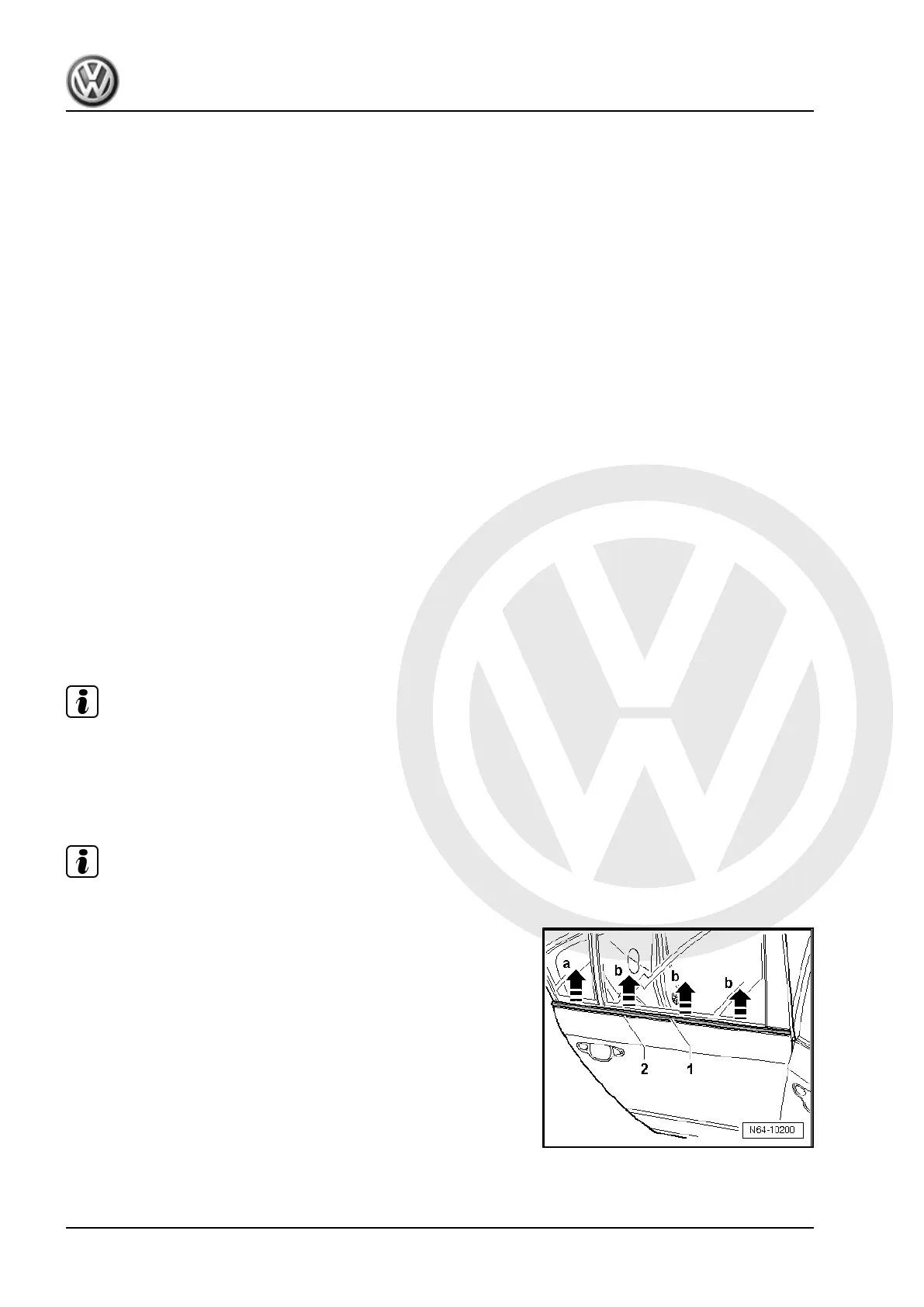

– Starting in rear area -arrow a-, carefully lift up window slot seal
-1-.
– Pull window slot seal -1- evenly, -arrows b- off door flange
-2-.
Passat 2011 ➤ , Passat Variant 2011 ➤
General body repairs, exterior - Edition 06.2019
356 Rep. gr.64 - Glazing
