– Install water drainage hoses -4-.
– Attach connector -3- on sliding/tilting sunroof glass panel drive
-5-.
1.19 Operating without current
Note
In the event of power failure, the sliding/tilting sunroof with glass
panel can be moved using a hexagon key directly on the drive.
Hexagon key (crank) is housed in moulded headliner on right next
to opening for rear interior light and reading lamp.

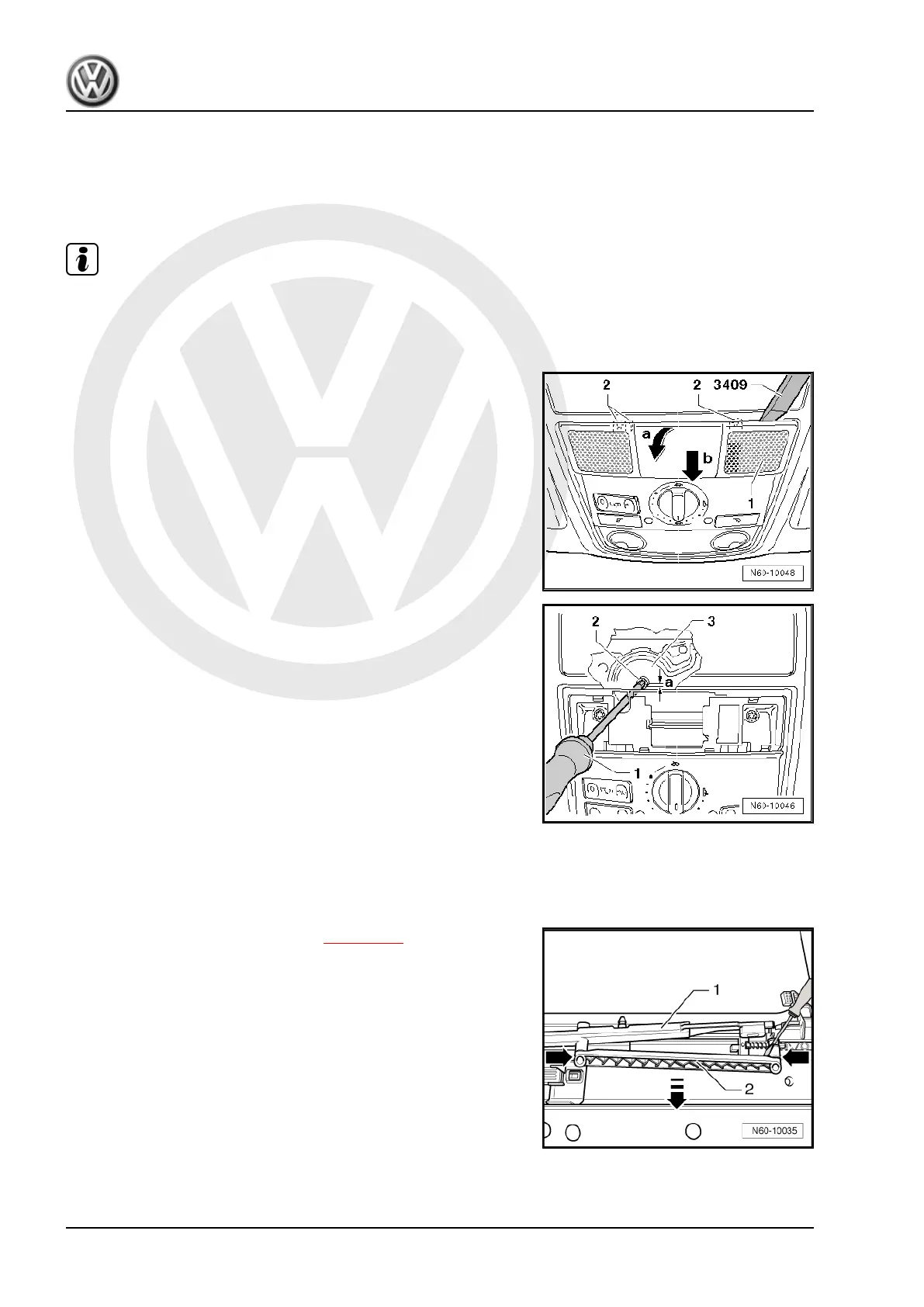

– Release catches -2- using removal wedge - 3409- .
– Fold down cover -1- -arrow a-.
– Pull cover downwards -arrow b- out of holder.
– Guide the hexagon key -1- through the opening in the bolt
-2- on the drive -3-.
– Press key -1- upwards to release the drive.
The bolt -2- will be pressed a few millimetres inwards -a-. Sliding/
tilting sunroof glass panel can only be moved in this position.
1.20 Removing and installing guide plate
1.20.1 Removing
– Removing glass panel for sunroof ⇒ page 180 .
– Unclip spacer -2- at front out of guide plate -1- and at rear out
of locking hook guide -arrows- using a screwdriver.
– Pull spacer -2- out of guide plate -1- and locking hook guide
in direction of -arrow-.
Passat 2011 ➤ , Passat Variant 2011 ➤
General body repairs, exterior - Edition 06.2019
192 Rep. gr.60 - Sunroof
