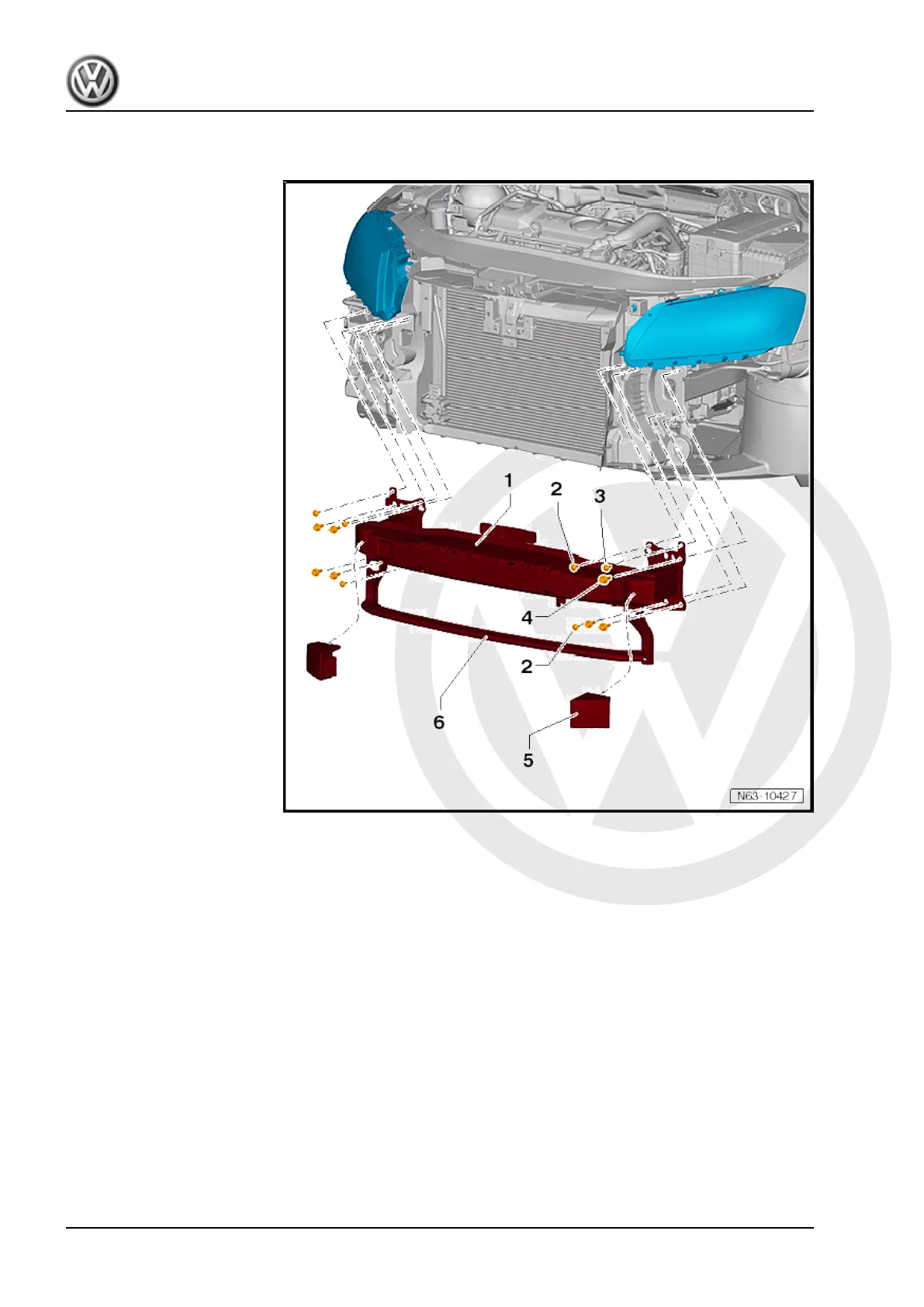

1.9 Assembly overview - front bumper carrier
1 - Bumper carrier
2 - Bolt
❑ Qty. 2 on each side
❑ Specified torque: 8 Nm
❑ For fastening bumper
carrier to lock carrier
3 - Bolt
❑ Qty. 1 on each side
❑ Specified torque:
3.5 Nm
❑ For fastening bumper
carrier to lock carrier
4 - Bolt
❑ Qty. 3 on left-hand side
❑ Qty. 4 on right-hand side
❑ Specified torque: 60 Nm
5 - Foam element
❑ Self-adhesive
6 - Pedestrian-protection
cross-member
Passat 2011 ➤ , Passat Variant 2011 ➤
General body repairs, exterior - Edition 06.2019
286 Rep. gr.63 - Bumpers
