1.3.4 Minimum curing period
Do not carry out any further work on bumper cover or brackets
until the minimum curing period of 30 minutes has expired.
In this time, the bumper cover must remain where it is. Do not
move it.

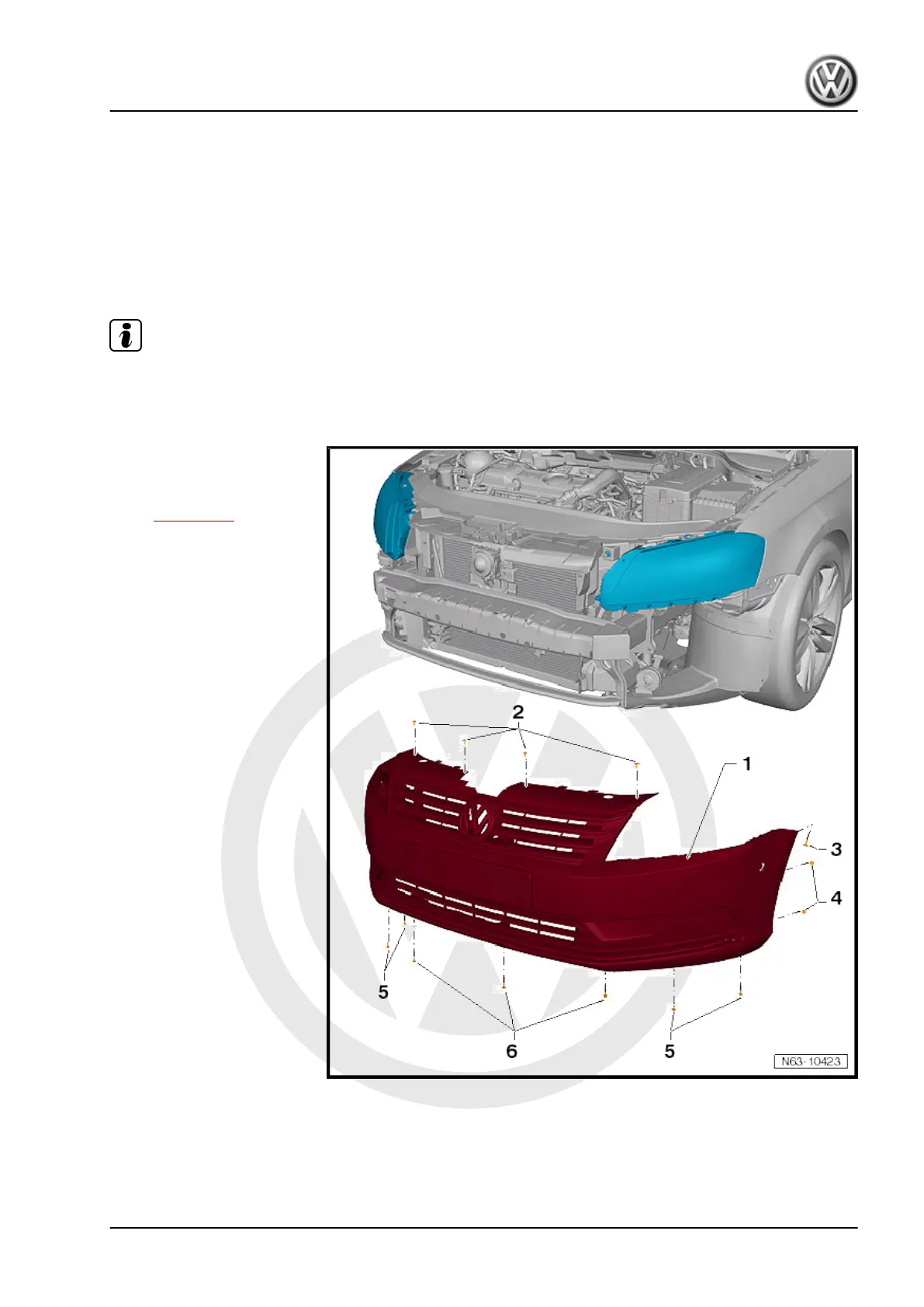

1.4 Assembly overview - front bumper cover
Volkswagen R GmbH, optional equipment, »R Line«
Note
♦ There may be minor differences between bumper covers, depending on vehicle model.
♦ The assembly overview applies to all models. The only differences are optical, depending on the model.
1 - Front bumper cover
❑ Material PP/EPDM.
❑ Removing and installing
⇒ page 280
2 - Bolt
❑ Qty. 4
❑ Specified torque: 2.0 ±
0.5 Nm
❑ Bolted to lock carrier
3 - Bolt
❑ Left and right
❑ Points upwards.
❑ Specified torque: 3.0 ±
0.5 Nm
4 - Bolt
❑ Qty. 2 on each side
❑ Specified torque: 2.0 ±
0.2 Nm
❑ Bolted to wheel housing
liner
5 - Bolt
❑ Qty. 2 on each side
❑ Specified torque: 2.0 ±
0.2 Nm
❑ Bolted to wheel housing
liner
6 - Bolt
❑ Qty. 3
❑ Specified torque: 2.0 ±
0.5 Nm
❑ Bolted to lock carrier
Passat 2011 ➤ , Passat Variant 2011 ➤
General body repairs, exterior - Edition 06.2019
1. Front bumper cover 279
