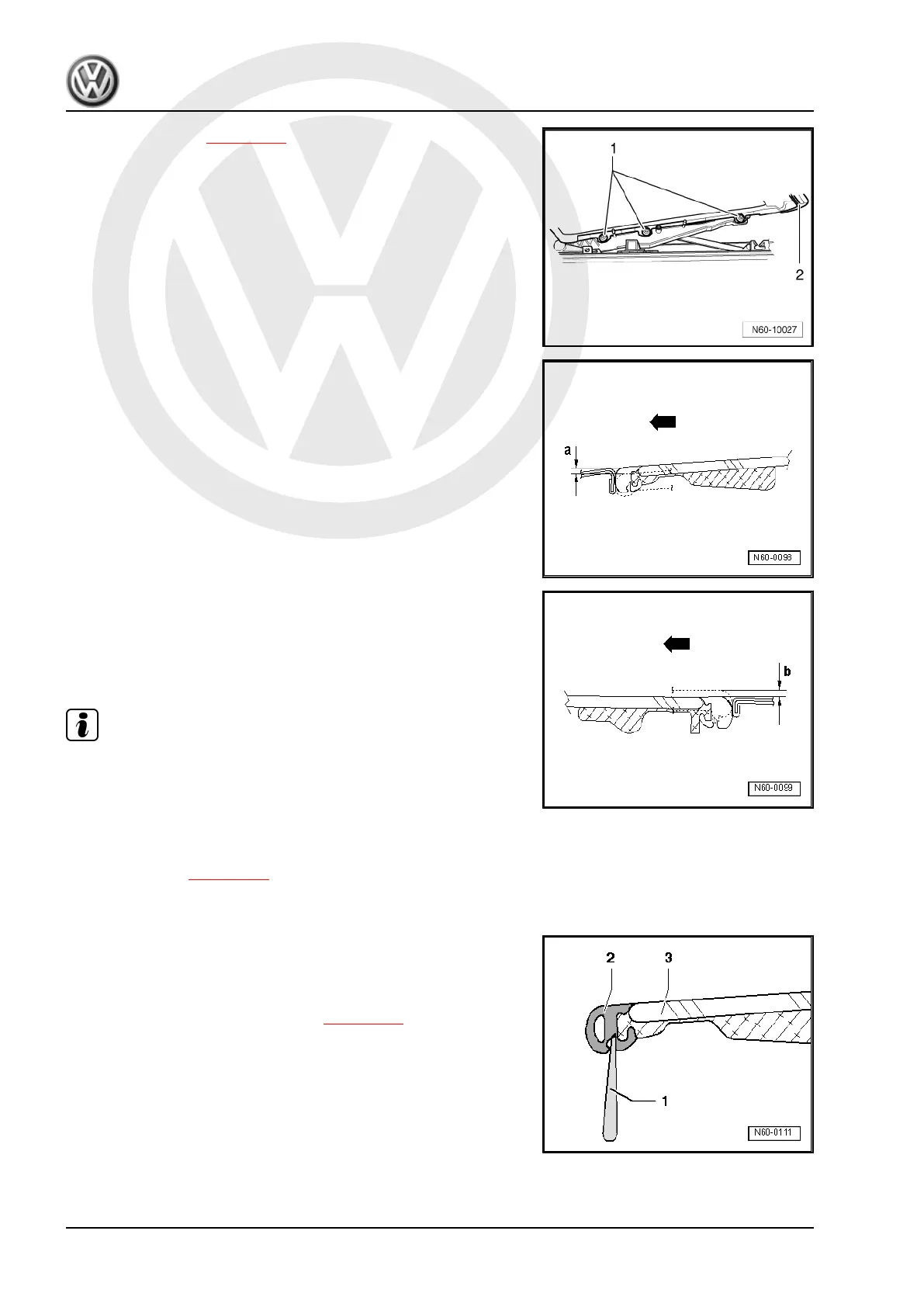

– Remove bellows ⇒ page 179 .
– Remove sliding/tilting sunroof glass panel -2- securing bolts
-1-.
– Run sliding/tilting sunroof glass panel to “open” position.
– Run sliding/tilting sunroof glass panel to “closed” position.
– Carry out height adjustment of sliding/tilting sunroof glass pan‐
el at front and rear on both sides as follows:
Front panel adjustment:
-a- = 0…1 mm lower than roof outer skin
-Arrow- = direction of travel
– Tighten front screws (5 Nm).
Rear panel adjustment:
-b- =0…1 mm higher than roof outer skin
-Arrow- = direction of travel
– First tighten middle and then rear screws (5 Nm).
Note
♦
To achieve the best possible optical appearance, ensure that
the adjustments on the left and right are as uniform as possible
(symmetric).
♦
The glass panel should not be higher than the roof at any point
at the front or lower than the roof at any point at the rear.
– Install bellows ⇒ page 180 .
1.8 Adjusting panel seal
– Check that the pre-loading between panel seal -2- and body
is uniform all-round using a 0.3 mm thick strip of paper (a vis‐
iting card for example). It must be possible to pull the paper
strip through tightly between the panel seal and body.
– Removing glass panel for sunroof ⇒ page 180 .
– If the pressure is too little, roof seal -2- can be pushed apart
with removal wedge - 3409- -1-.
Passat 2011 ➤ , Passat Variant 2011 ➤
General body repairs, exterior - Edition 06.2019
182 Rep. gr.60 - Sunroof
