11 - Nut
❑
Specified torque: 14 Nm

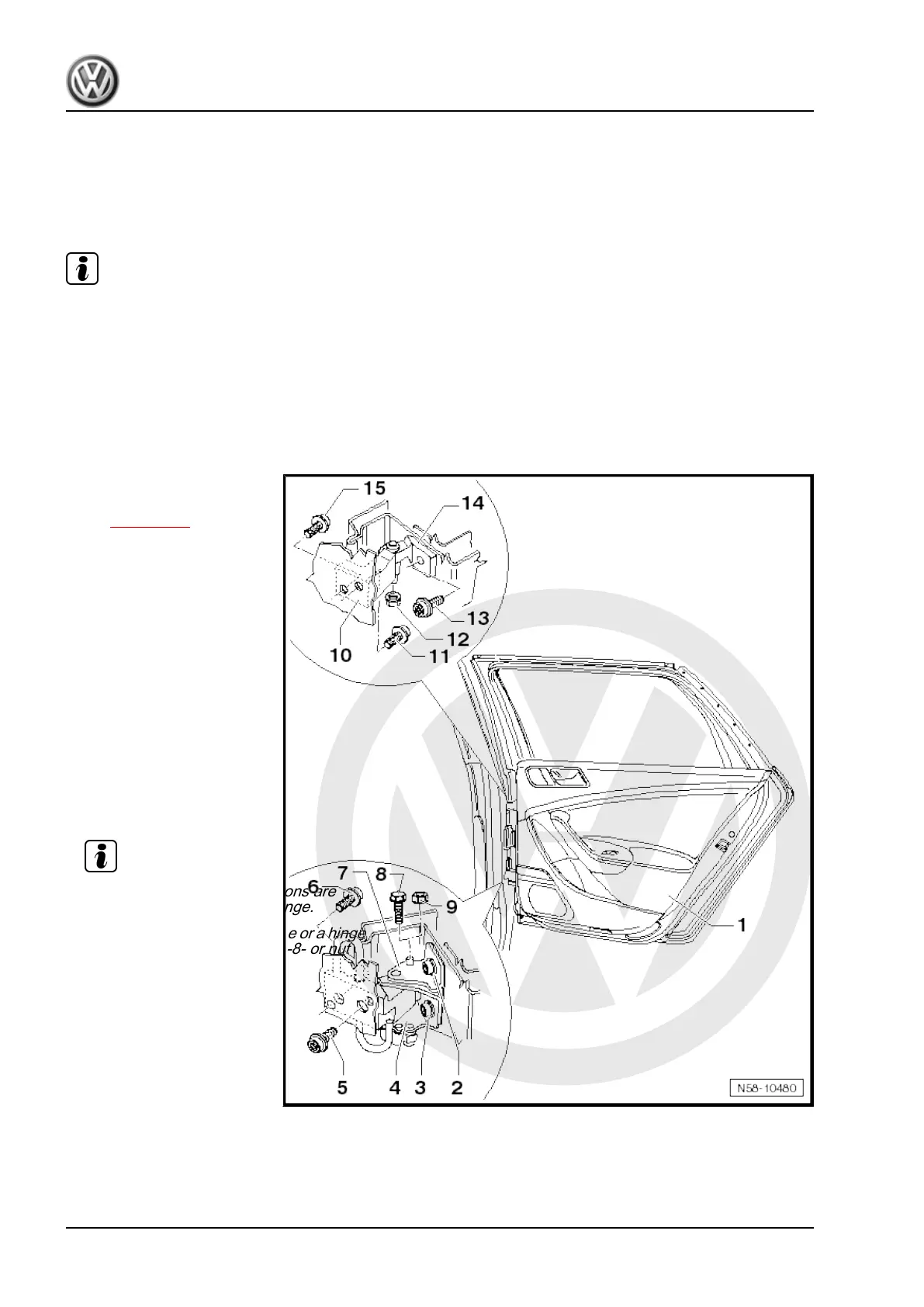

2.3 Assembly overview - door hinges
Note
♦
The right side is shown. The left side is similar.
♦ The hinge bolts must always be renewed if loosened.
♦ The parts of the lower hinge can also be bolted on with a bolt -8- or a nut -9-.
♦ The specified torque for the hinge bolts to the door (bolts -2, 4 and 11-) has been revised.
♦ If a new hinge is installed, it must be greased. Work specifications can be found in the “Maintenance manual”
⇒ Maintenance ; Booklet 21.1 .
1 - Door
❑ Removing and installing
⇒ page 142
2
- Multi-point socket head bolt
❑ Specified torque: 50 Nm
❑ Always renew bolts after
loosening.
3 - Multi-point socket head bolt
❑ If there is no bolt -8- or
nut -9-, only this bolt has
to be removed from the
hinge in order to remove
the door.
❑ Specified torque: 50 Nm
❑ Always renew bolts after
loosening.
4 - Door hinge with arrester
❑ The hinge is split.
Note
♦
3 different construct ons are
used for the lower h nge.
♦ Either a push-on hinge or a hinge
bolted on with a bolt -8- or nut
-9-.
5 - Multi-point socket head bolt
❑ Installed from inside ve‐
hicle.
❑ Remove lower B-pillar
trim ⇒ General body re‐
pairs, interior; Rep. gr.
70 ; Pillar and side panel
trim; Removing and installing B-pillar lower trim
❑
Specified torque 20 Nm +
1
/
4
turn (90°) further
❑ Always renew bolts after loosening.
Passat 2011 ➤ , Passat Variant 2011 ➤
General body repairs, exterior - Edition 06.2019
140 Rep. gr.58 - Rear doors, door components
