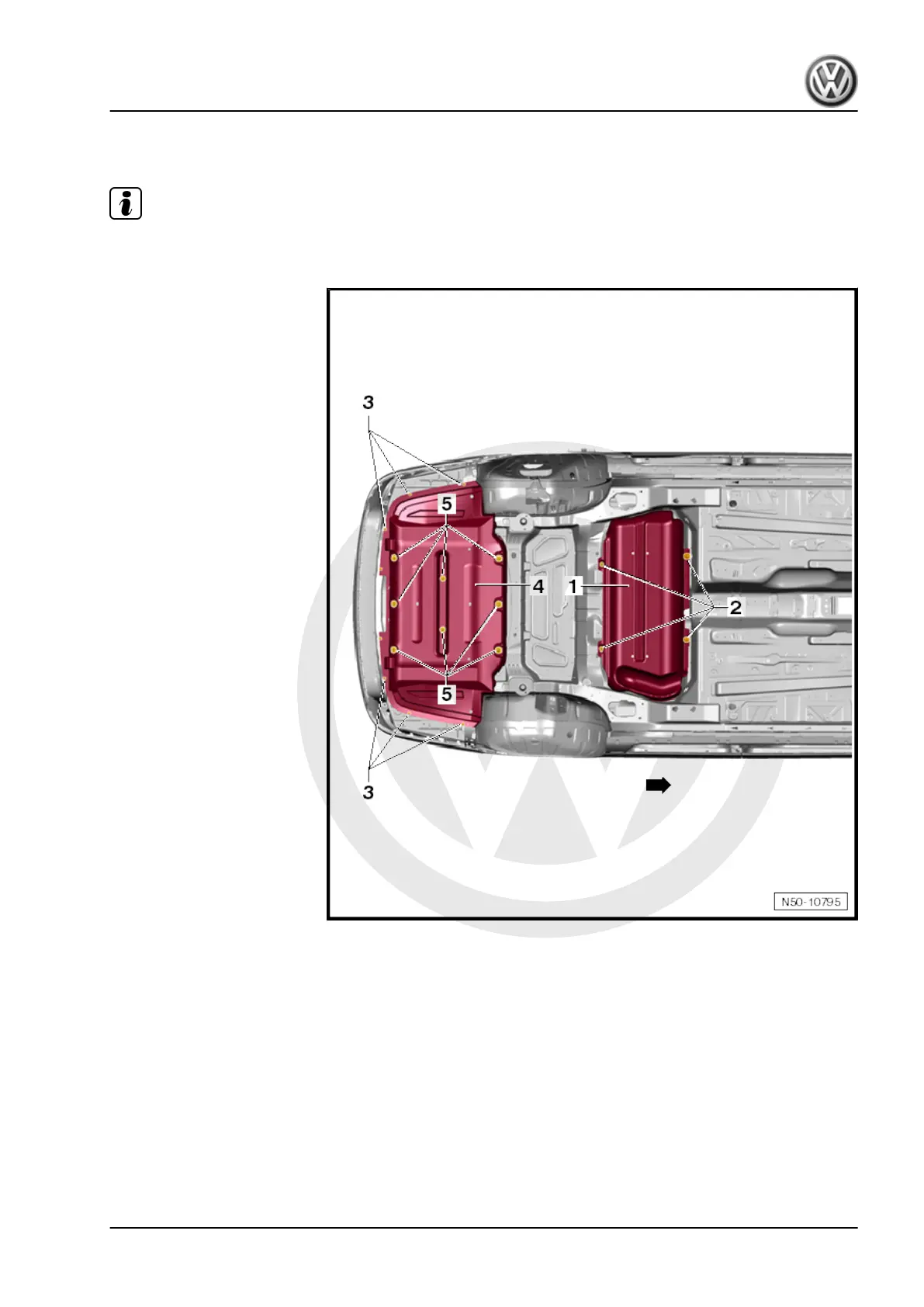

11 Fuel tank covers (natural gas vehicles)

Note

The -arrow- points in direction of travel.

1 - Front cover

Removing:

– Remove hexagon nuts

-2-.

Installing:

– Screw in hexagon nuts

-2-.

2 - Hexagon nut

❑ Qty. 4

❑ Specified torque: 3 Nm

❑ Threaded connection

for cover with fuel tank

mounting

3 - Bolts

❑ Qty. 8

❑ Specified torque: 3 Nm

❑ Threaded connection

for cover with bumper

cover

4 - Rear cover

Removing:

– Unscrew bolts -3- and

hexagon nuts -5-.

Installing:

– Screw in bolts -3- and

hexagon nuts -5-.

5 - Hexagon nut

❑ Qty. 8

❑ Specified torque: 3 Nm

❑ Threaded connection for cover with fuel tank mounting
