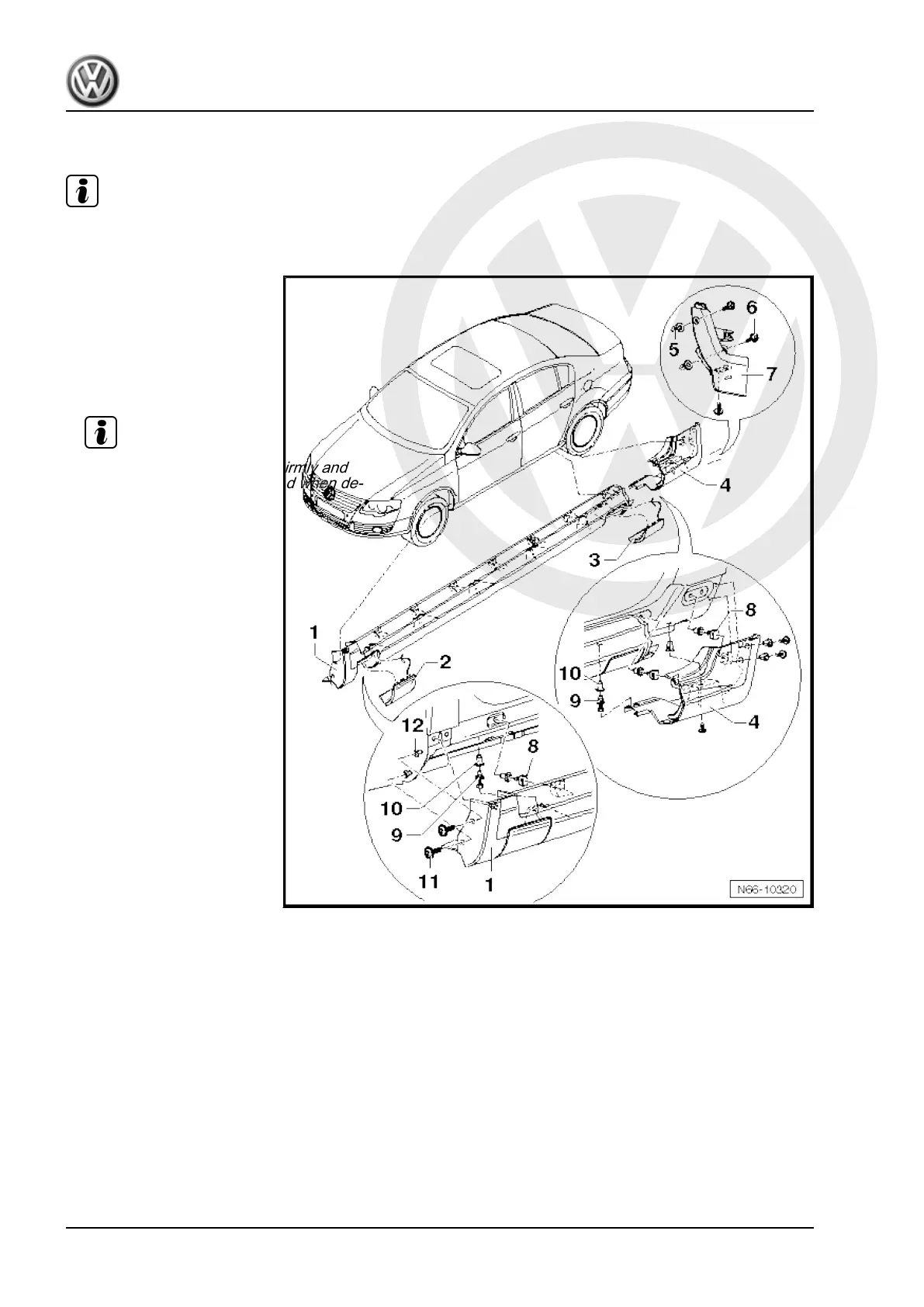

14.3 Assembly overview – side member extension
Note
The illustration shows the left side. The right side is analogous.
1 - Front side member exten‐
sion
❑ Removing:
– Release side member
extension clips -8- from
catches using removal
wedge - 3409- .
Note
The clips are engaged firmly and
care should be exercised when de‐
taching.
❑ Installing:
– Before installing, check
fasteners for damage,
and renew them as nec‐
essary.
2 - Front cover
❑ For jack clearance
3 - Rear cover
❑ For jack clearance
4 - Rear side member exten‐
sion
5 - Expansion nut
❑ Qty. 3
6 - Bolt
❑ Qty. 3
❑ Specified torque:
1.5 Nm
7 - Side member trim
8 - Clip
❑ Qty. 12
9 - Rivet
❑ Qty. 5
10 - Grommet
❑ Qty. 12
11 - Bolt
❑ Qty. 2
❑ Specified torque: 1.5 Nm
12 - Expansion nut
❑ Qty. 2
Passat 2011 ➤ , Passat Variant 2011 ➤
General body repairs, exterior - Edition 06.2019
448 Rep. gr.66 - Exterior equipment
