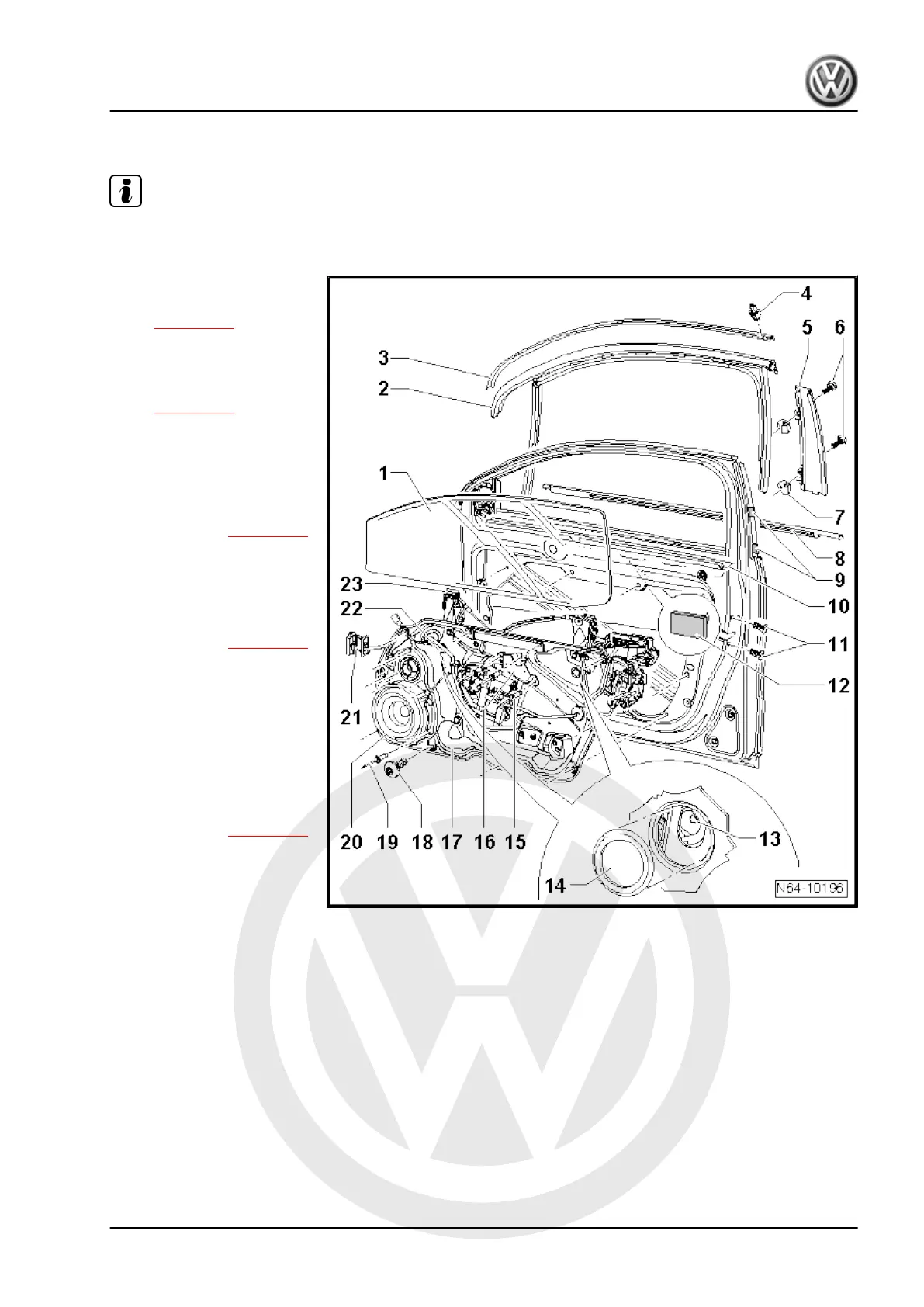

2.2 Assembly overview
Note
The right side is shown. The left side is similar.
1 - Door window
❑ Removing and installing
⇒ page 344
2 - Window channel
❑ Pushed onto flange.
❑ Removing and installing
⇒ page 349
❑ Version with and without
trim strip
3 - Trim strip
❑ Inserted in window
channel
❑ Removing ⇒ page 352
4 - Clip
❑ To secure trim strip in
window channel
5 - Trim
❑ Removing ⇒ page 349
6 - Cross-head screw
❑ Qty. 2
❑ Specified torque: 2 Nm
7 - Speed nut
❑ Qty. 2
8 - Window slot outer seal
❑ Pushed onto flange
❑ Removing ⇒ page 349
9 - Spacer
❑ Between door and trim.
10 - Window slot inner seal
❑ Pushed onto flange
❑ Version with and without trim strip
11 - Bolt
❑ For door lock
❑ Qty. 2
❑ Specified torque: 20 Nm
12 - Dampers
❑ Self-adhesive
❑ Between door inner panel and door window.
13 - Bolt (left-handed thread)
❑ Qty. 2
❑ Specified torque: 8 Nm
Passat 2011 ➤ , Passat Variant 2011 ➤
General body repairs, exterior - Edition 06.2019
2. Front door window 343
