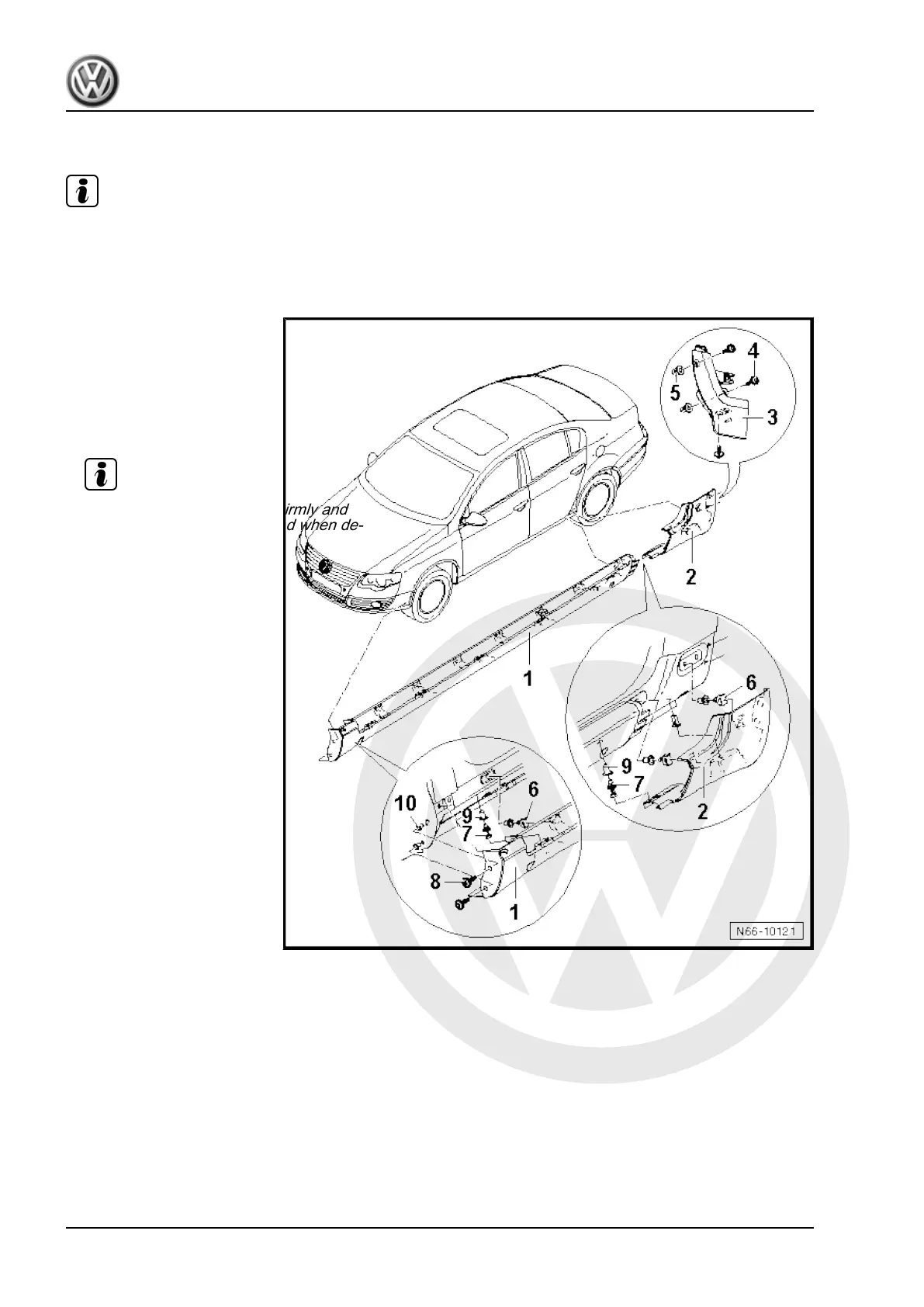

5.5 Assembly overview - side member extension
Note
♦
The illustration shows the left side. The right side is analogous.
♦
There may be minor differences between vehicle models in respect of side member widening and side
member trim.
1 - Front side member exten‐
sion
❑ Removing:
– Release side member
extension clips -6- from
catches using removal
wedge - 3409- .
Note
The clips are engaged firmly and
care should be exercised when de‐
taching.
❑ Installing:
– Before installing, check
fasteners for damage,
and renew them as nec‐
essary.
2 - Rear side member exten‐
sion
3 - Side member trim
4 - Bolt
❑ Qty. 3
❑ Specified torque:
1.5 Nm
5 - Expansion nut
❑ Qty. 3
6 - Clip
❑ Qty. 12
7 - Rivet
❑ Qty. 5
8 - Bolt
❑ Qty. 2
❑ Specified torque: 1.5 Nm
9 - Grommet
❑ Qty. 12
10 - Expansion nut
❑ Qty. 2
Passat 2011 ➤ , Passat Variant 2011 ➤
General body repairs, exterior - Edition 06.2019
416 Rep. gr.66 - Exterior equipment
