55 – Bonnet, rear lid
1 Bonnet (hood)
1.1 Assembly overview - bonnet

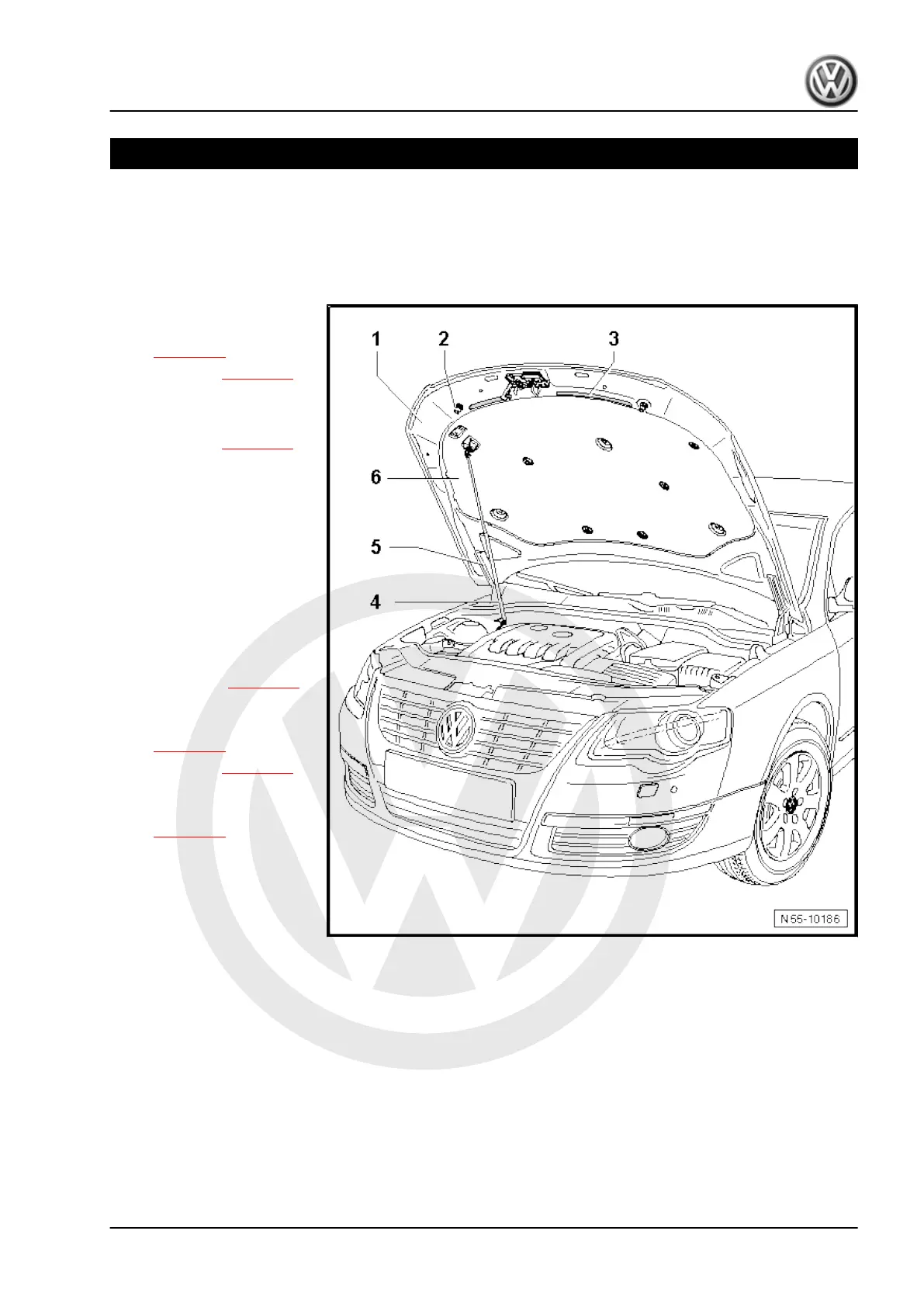

1 - Bonnet (hood)
❑ Removing
and installing
⇒ page 21
❑
Adjusting
⇒ page 33
2 - Adjusting buffer
❑
Left and right
❑ Adjusting
⇒ page 35
❑
On vehicles from
11.2010, an additional
adjustment buffer is fit‐
ted on the outside on the
left and right-hand sides
3 - Seal
❑ Left and right
❑ Clipped into bonnet.
❑ Only fitted on vehicles
up to 10.2010.
4 - Gas strut
❑ Removing
⇒ page 25
5 - Hinge
❑ Removing
and installing
⇒ page 26
❑
Adjusting
⇒ page 33
6 - Dampers
❑ Removing
and installing
⇒ page 29
1.2 Removing and installing bonnet
Special tools and workshop equipment required
Passat 2011 ➤ , Passat Variant 2011 ➤
General body repairs, exterior - Edition 06.2019
1. Bonnet (hood) 21
