❑ Specified torque: 12 Nm
❑ For fastening lock carrier support to bumper carrier
12 - Bolt
❑ Qty. 1
❑ Specified torque: 3.5 Nm
❑ For fastening lock carrier support to lock carrier
13 - Support for lock carrier
14 - Bolt
❑ Qty. 2
❑ Specified torque: 12 Nm
❑ For fastening lock carrier support to lock carrier and bonnet lock
15 - Air duct
❑ Right
❑ Clipped into lock carrier
1.2 Service position

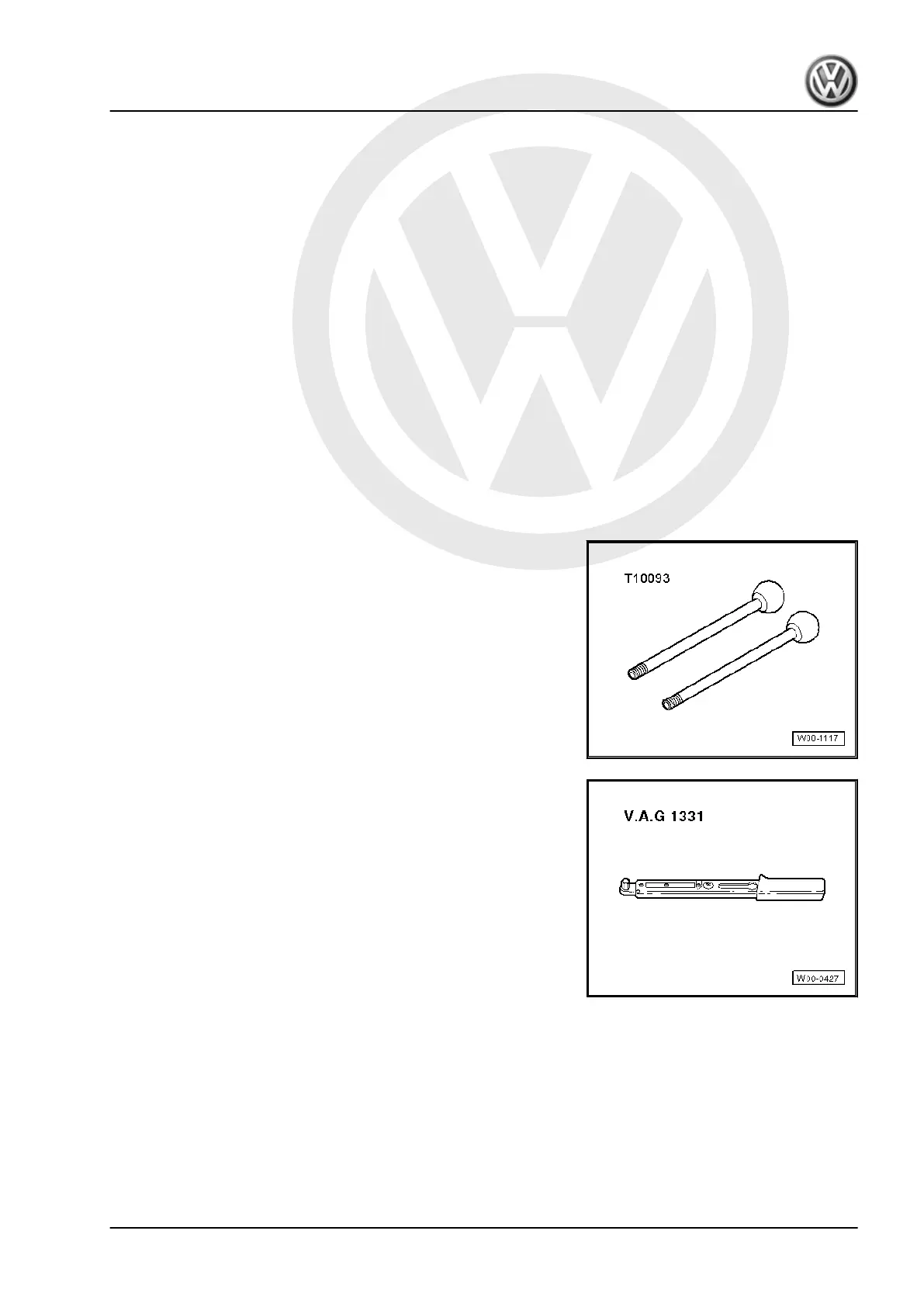

Special tools and workshop equipment required
♦ Guide pins - T 10093-
♦ Torque wrench - V.A.G 1331-
Passat 2011 ➤ , Passat Variant 2011 ➤
General body repairs, exterior - Edition 06.2019
1. Lock carrier 3
