3 Rear lid (estate)
3.1 Tools
Special tools and workshop equipment required
♦ Torque wrench - V.A.G 1331-

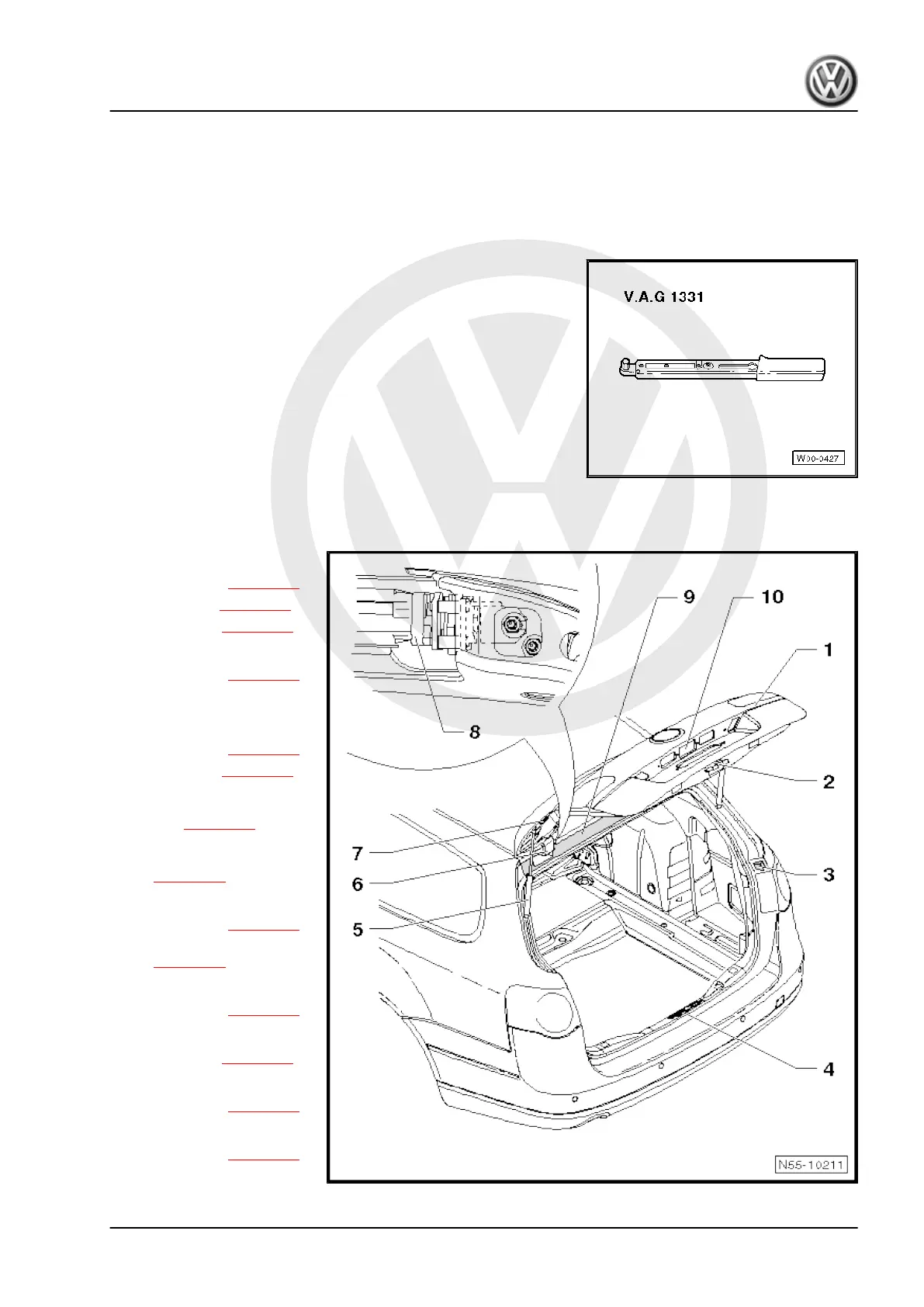

3.2 Assembly overview - rear lid
1 - Rear lid
❑ Removing ⇒ page 60
❑ Installing ⇒ page 61
❑ Adjusting ⇒ page 71
2 - Bonnet lock
❑ Removing ⇒ page 64
3 - Stop
4 - Striker
❑ Removing ⇒ page 66
❑ Adjusting ⇒ page 73
❑ Removing striker pin
with power latching sys‐
tem ⇒ page 66 .
❑ Adjusting striker pin for
power latching system
⇒ page 73 .
5 - Gas strut
❑ Removing ⇒ page 75
❑ Releasing gas
⇒ page 75
6 - Hinge
❑ Removing ⇒ page 62
7 - Buffer stop
❑ Adjusting ⇒ page 73
8 - Motor in rear lid control unit
❑ Removing ⇒ page 75
9 - Cover
❑ Removing ⇒ page 82
Passat 2011 ➤ , Passat Variant 2011 ➤
General body repairs, exterior - Edition 06.2019
3. Rear lid (estate) 59
