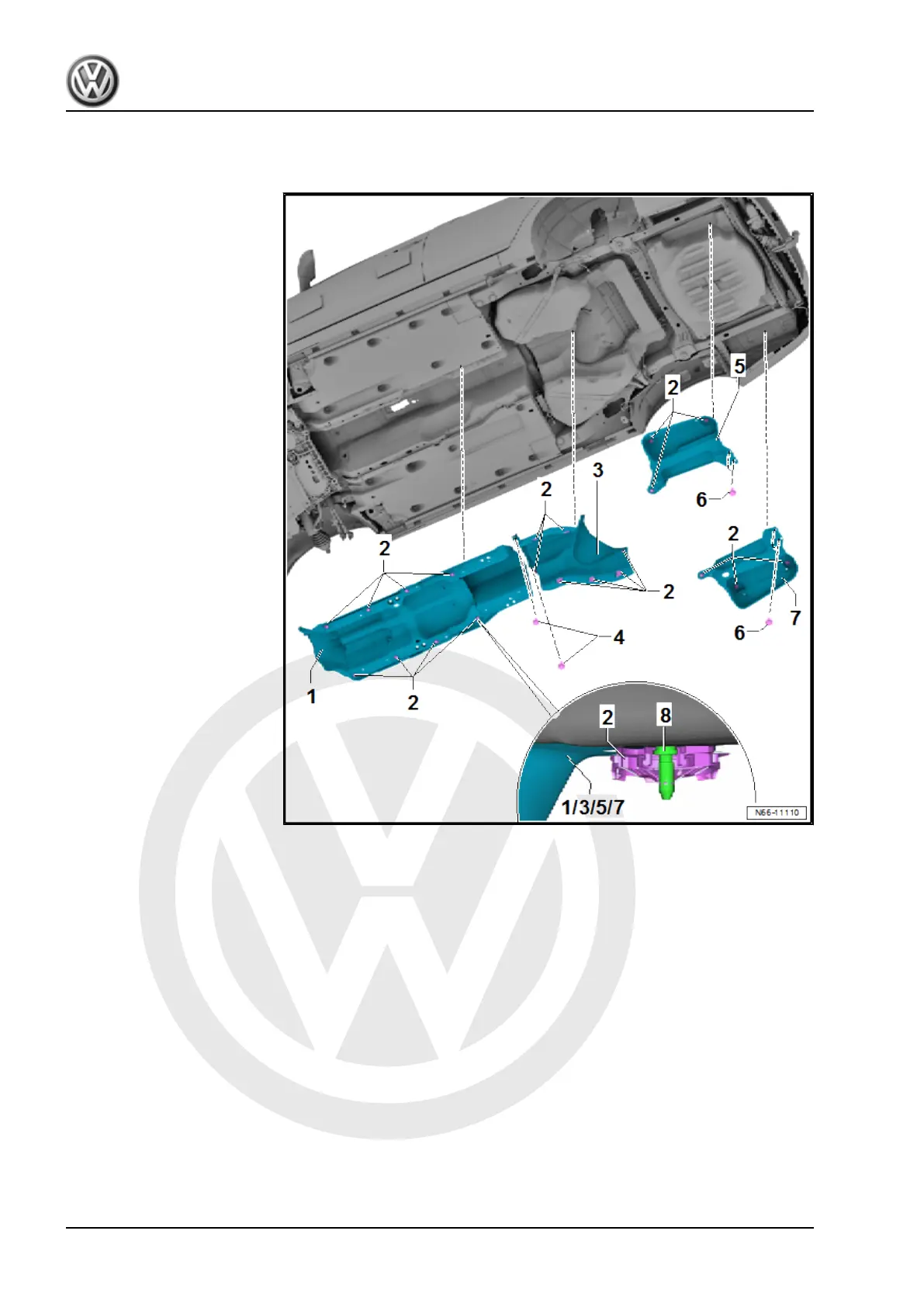

12 Assembly overview - heat shield
1 - Front heat shield
2 - Clamping washer
❑ Part of heat shield.
3 - Centre heat shield
4 - Bolt
❑
5 - Rear left heat shield
6 - Bolt
❑ Secured with bolt only
when exhaust system is
installed
❑ Specified torque ⇒ Ex‐
haust system; Rep. gr.
26 ; Exhaust pipes/si‐
lencers; Assembly over‐
view - silencers
7 - Rear right heat shield
❑ Only for vehicles with
dual exhaust system
8 - Threaded pin
❑ To secure retainer
Passat 2011 ➤ , Passat Variant 2011 ➤
General body repairs, exterior - Edition 06.2019
434 Rep. gr.66 - Exterior equipment
