13.6 Side member extension

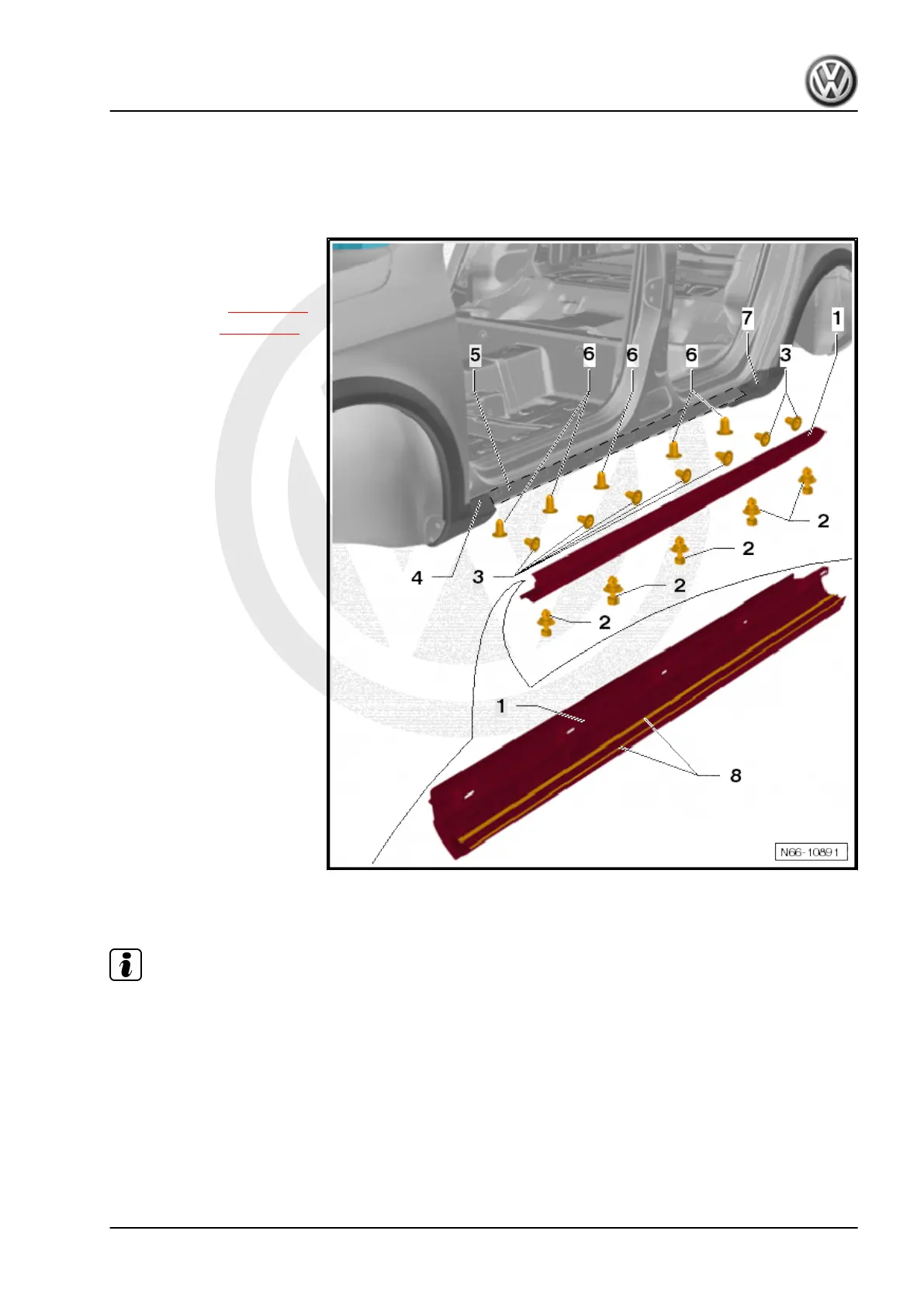

13.6.1 Assembly overview - side member extension
1 - Side member extension
❑ Material: PP + PE +
EPDM.
❑ Removing ⇒ page 437
❑ Installing ⇒ page 439
2 - Spreader rivet
❑ Qty. 5 on each side
3 - Grommet for clips
❑ Qty. 7 on each side
4 - Front wheel housing trim
5 - Side member
❑ Bonding surface
6 - Grommet for expanding riv‐
et
❑ Qty. 5 on each side
7 - Front wheel housing trim
8 - Double-sided adhesive
tape
13.6.2 Removing side member extension
Note
♦
Installation of the side member extension is described only for
the left side. The right side is analogous.
♦
The side member extension cannot be removed without being
damaged.
