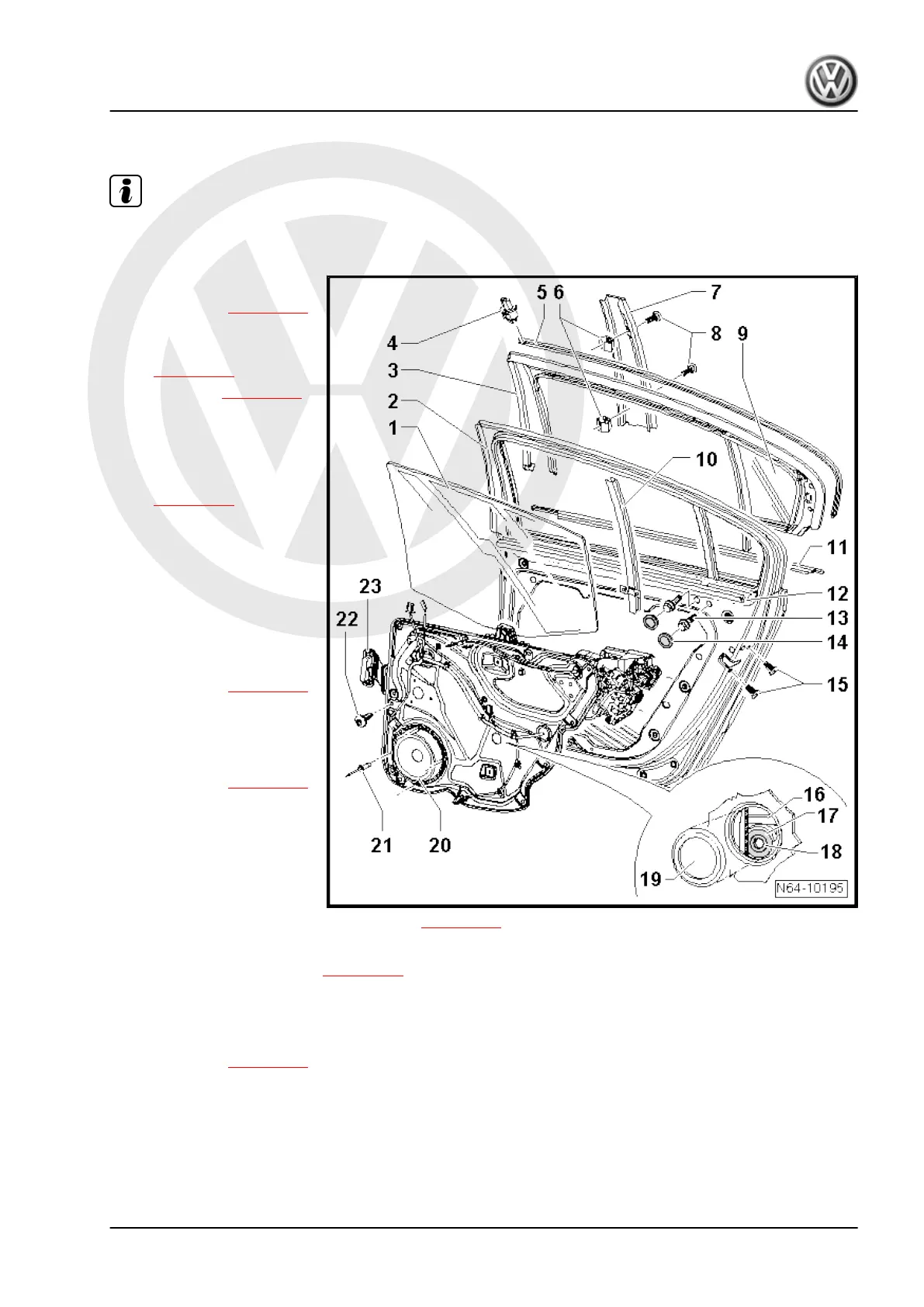

3.2 Assembly overview
Note
The right side is shown. The left side is similar.
1 - Door window
❑ Removing ⇒ page 356
2 - Door
❑ Removing and installing
⇒ page 134
❑ Adjusting ⇒ page 136
3 - Window channel
❑ With fixed window.
❑ Pushed onto flange
❑ Removing and installing
⇒ page 361
❑ Version with and without
trim strip
4 - Clip
❑ To secure trim strip in
window channel
5 - Trim strip
❑ Inserted in window
channel
❑ Removing ⇒ page 363
6 - Speed nut
❑ Qty. 2
7 - Trim
❑ Removing ⇒ page 357
8 - Bolt
❑ Qty. 2
❑ Specified torque: 2 Nm
9 - Fixed door window
❑ Part of window channel
❑ Removing and installing window guide ⇒ page 361
10 - Guide rail
❑ Removing and installing ⇒ page 361
11 - Window slot outer seal
❑ Pushed onto flange
❑ Version with and without trim strip
❑ Removing ⇒ page 356
12 - Window slot inner seal
❑ Pushed onto flange
13 - Bolt
❑ For middle frame
❑ Qty. 2
❑ Specified torque: 6 Nm
