4 Roof railing

4.1 Tools

Special tools and workshop equipment required

♦ Torque wrench - V.A.G 1331-

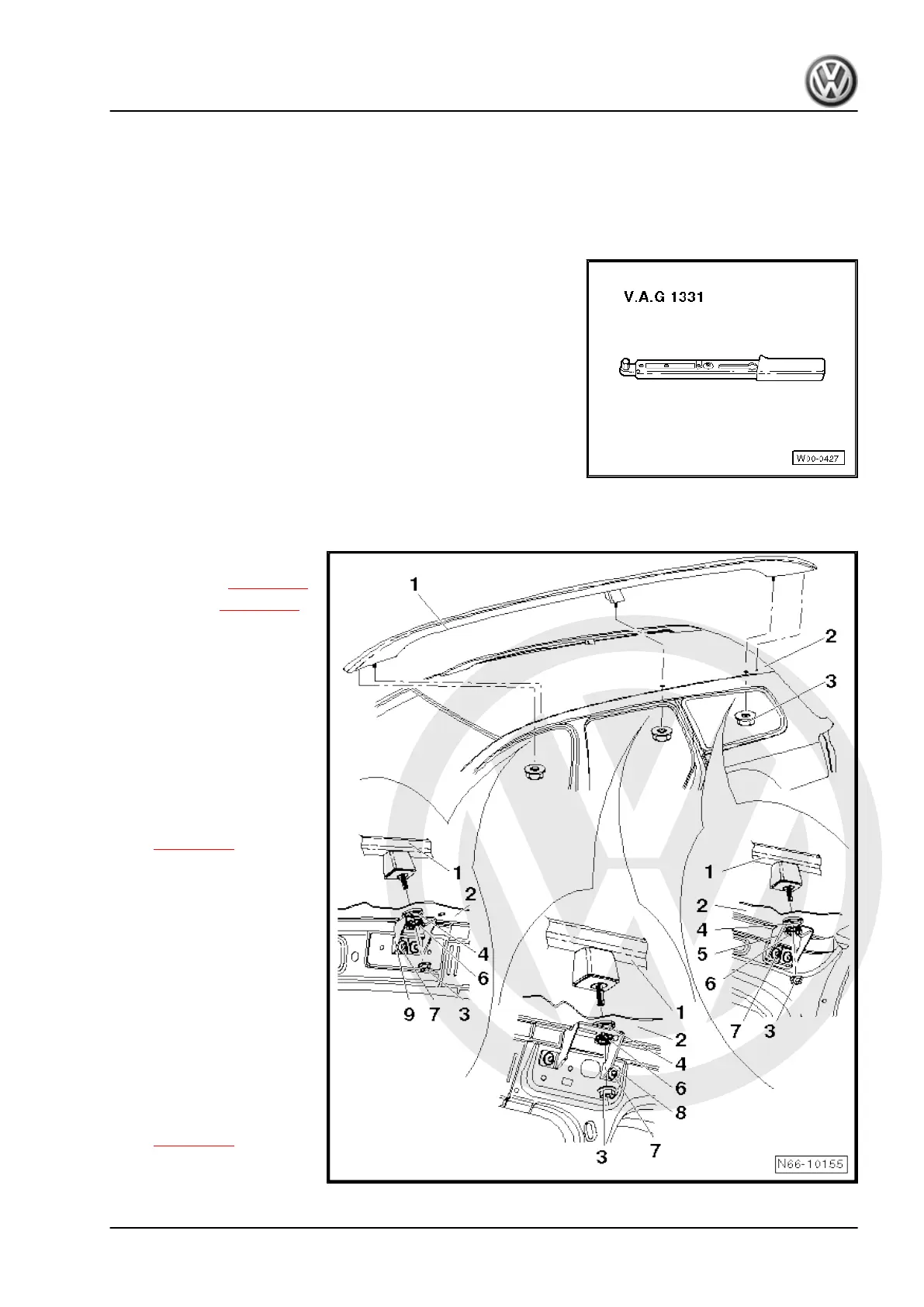

4.2 Assembly overview - roof railing

1 - Roof railing

❑ Removing ⇒ page 402

❑ Installing ⇒ page 404

2 - Roof

3 - Hexagon nut

❑ Qty. 3 on each side

❑ Specified torque: 23 Nm

4 - Upper tolerance compen‐

sation

❑ Comprised of upper and

lower wedges.

5 - Rear retaining bracket

❑ Removing and installing

⇒ page 406

❑ Various different retain‐

ing brackets have been

installed and these are

not interchangeable.

6 - Lower tolerance compen‐

sation

❑ Comprised of upper and

lower wedges and the

bracket.

7 - Bolt

❑ Qty. 2 for each bracket

❑ Specified torque: 20 Nm

8 - Centre retaining bracket

❑ Removing and installing

⇒ page 406

❑ Various different retain‐

ing brackets have been

Passat 2011 ➤ , Passat Variant 2011 ➤

General body repairs, exterior - Edition 06.2019

4. Roof railing 401
