50 – Body - front
1 Lock carrier
⇒ “1.1 Assembly overview – lock carrier”, page 2
⇒ “1.2 Service position”, page 3
⇒ “1.3 Removing and installing lock carrier”, page 8

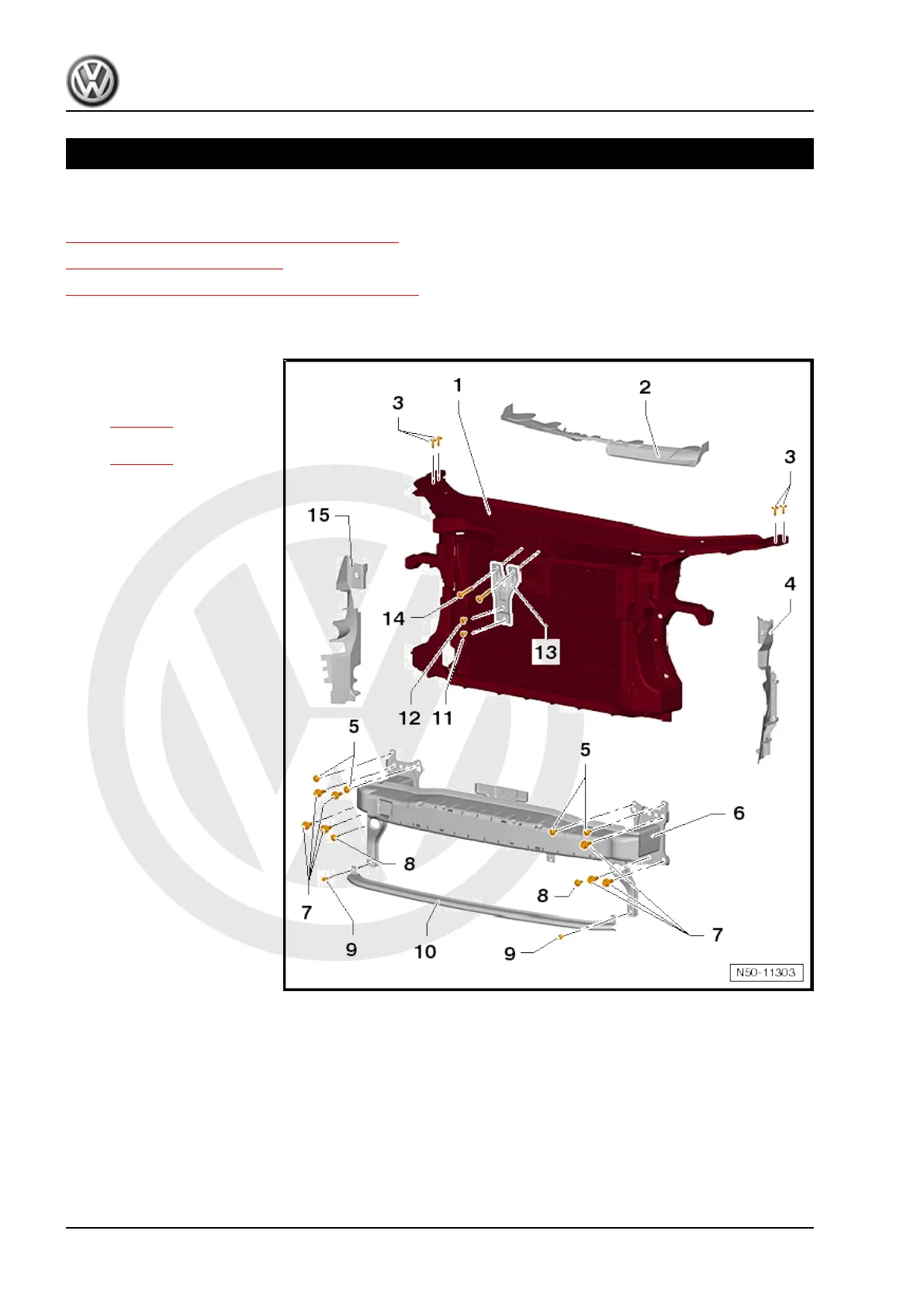

1.1 Assembly overview – lock carrier
1 - Lock carrier with add-on
parts
❑ Removing
and installing
⇒ page 8
❑
Service position
⇒ page 3
2 - Air duct
❑
Top
❑ Clipped into lock carrier
3 - Bolt
❑ Qty. 2 on each side
❑ Specified torque: 8 Nm
4 - Air duct
❑ Left
❑ Clipped into lock carrier
5 - Bolt
❑ Qty. 2 on each side
❑ Specified torque: 8 Nm
❑ For fastening bumper
carrier to lock carrier
6 - Bumper carrier
7 - Bolt
❑ Qty. 3 on left-hand side
❑ Qty. 4 on right-hand side
❑ Specified torque: 60 Nm
8 - Bolt
❑ Qty. 1 on each side
❑ Specified torque:
3.5 Nm
❑ For fastening bumper
carrier to lock carrier
9 - Bolt
❑ Qty. 1 on each side
❑ Specified torque: 12 Nm
❑ For fastening pedestrian-protection cross-member to bumper carrier
10 - Pedestrian-protection cross-member
❑ Only in some markets
11 - Bolt
❑ Qty. 1
Passat 2011 ➤ , Passat Variant 2011 ➤
General body repairs, exterior - Edition 06.2019
2 Rep. gr.50 - Body - front
