del 2461 Interactive SourceMeter® Instrument Reference Manual Section 2:
2461-901-01 A/November 2015 2-9
Select items on the touchscreen
To select an item on the displayed screen, do one of the following:
• Touch it with your finger
• Turn the navigation control to highlight the item, and then press the navigation control to select it
The following topics describe the Model 2461 touchscreen in more detail.
Scroll bars
Some of the interactive screens have additional options that are only visible when you scroll down the
screen. A scroll indicator on the right side of the touchscreen identifies these screens. Swipe the
screen up or down to view the additional options.
The figure below shows a screen with a scroll bar.

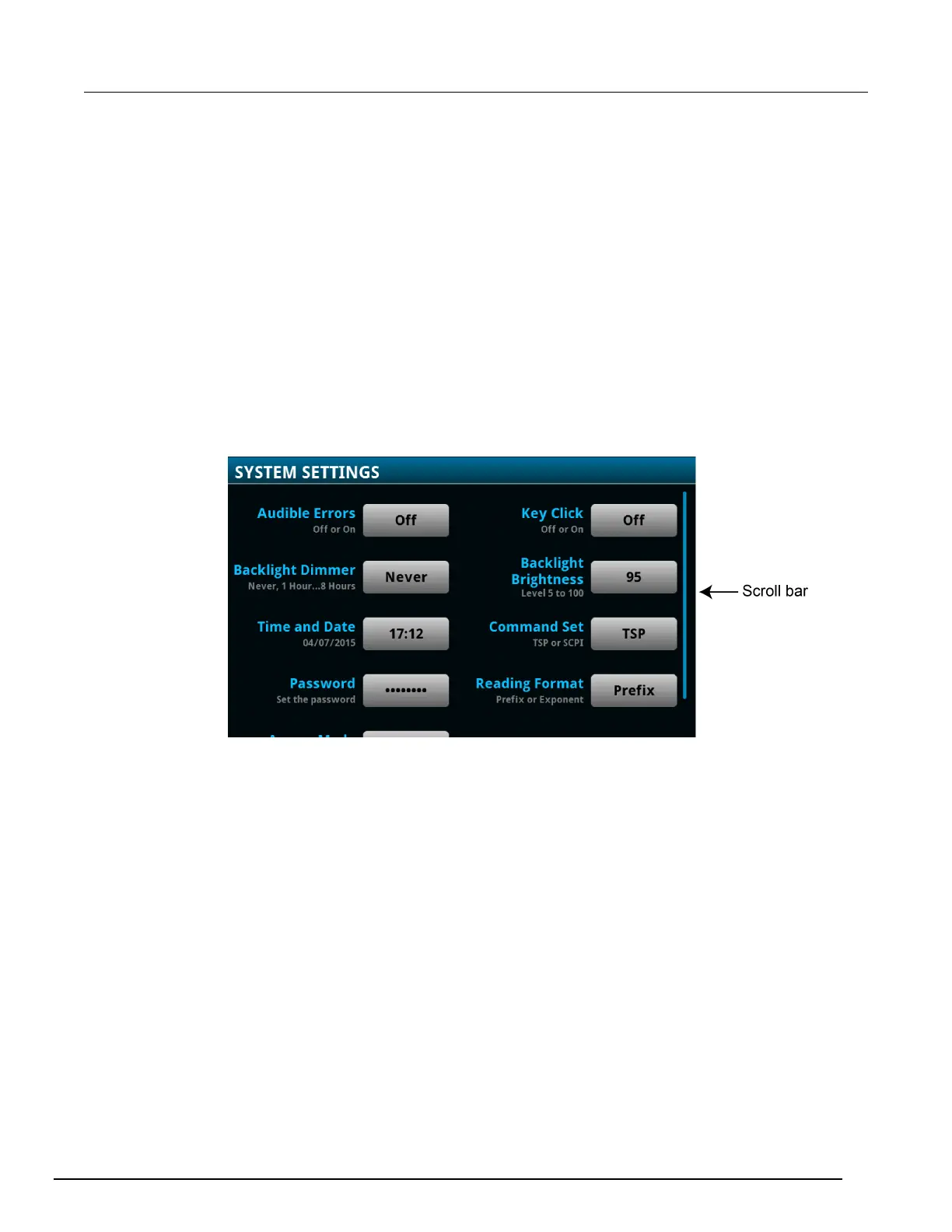

Figure 4: Touchscreen window with a scroll bar indicator
