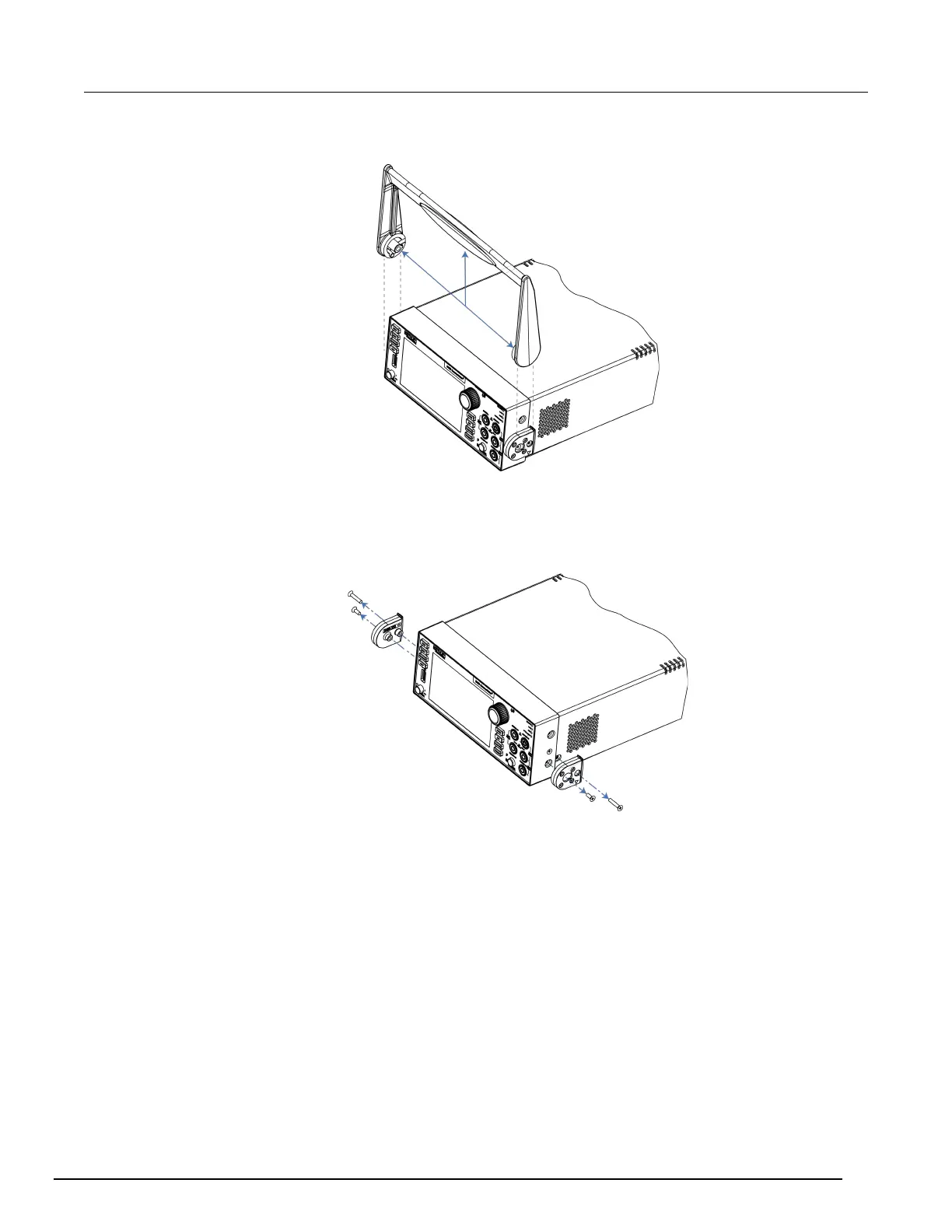

Figure 32: Removing the handle
2. Using a Phillips screwdriver, loosen and remove the two screws holding the handle-mount
assembly to one side of the Model 2461. The handle-mount assembly will fall away from the
instrument chassis when the screws are removed.
Figure 33: Removing the handle mount
3. Repeat step 2 on the other side of the Model 2461.
4. Store the handle-mount assembly, screws, and handle together for future use.
Dimensions
The following figures show the mounting screw locations and the dimensions of the instrument with
and without the handle and bumpers.
The instrument weighs 4.75 kg (10.5 lb) with the bumpers and handle and 4.35 kg (9.6 lb) without
them.
