Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 1.1, REP 1.2
Launch Issue
Repairs and Adjustments
7. Remove the HVPS, Figure 4:
a. Disconnect the connector (1).
b. Remove five screws (2).
c. Remove the HVPS (3).

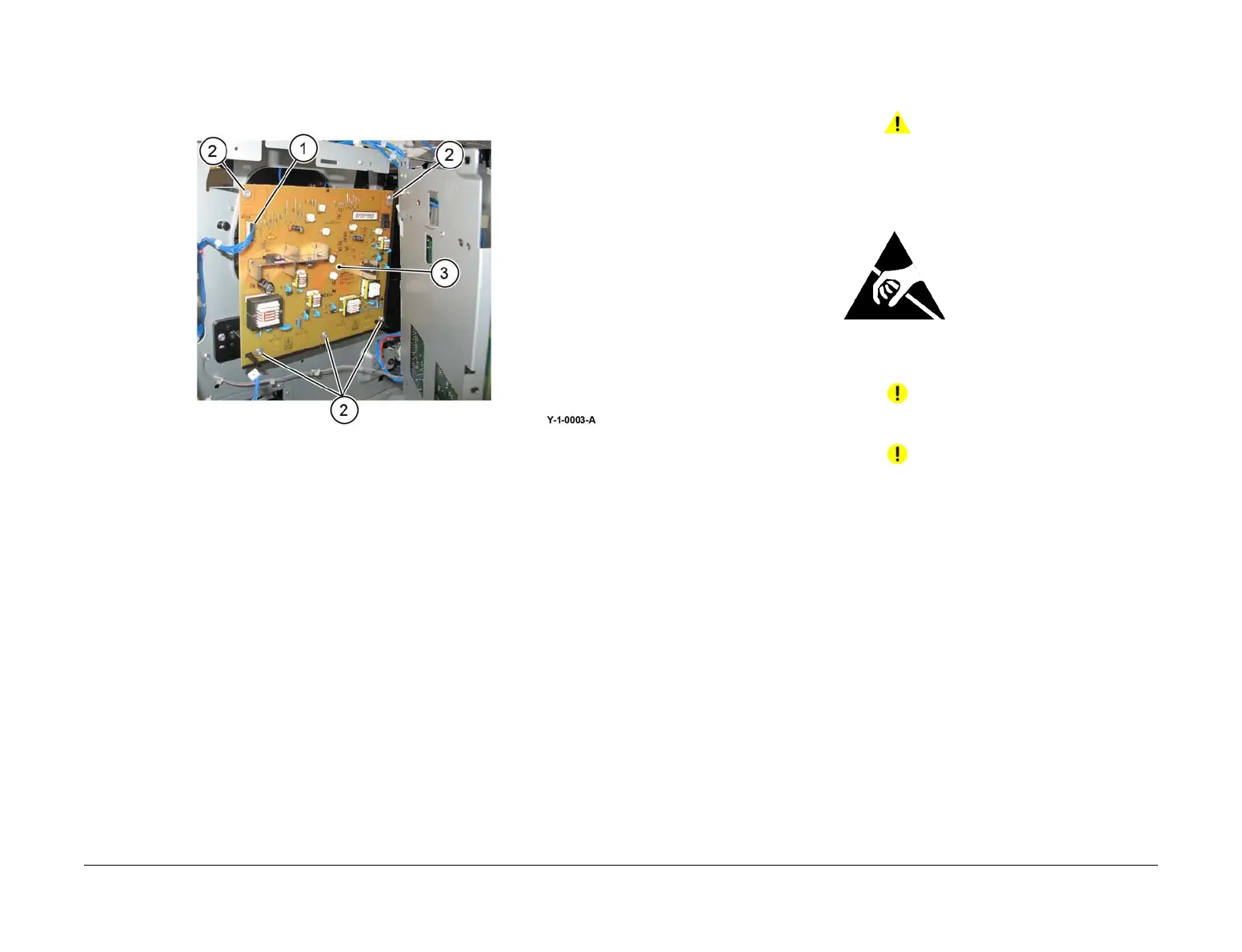

Figure 4 HVPS Removal
Replacement
The replacement is the reverse of the removal procedure.
REP 1.2 Drive PWB
Parts List on PL 1.10
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
Figure 1 ESD Symbol
CAUTION
Observe ESD procedures during this procedure.
CAUTION
When installing a new drive PWB and a new ESS PWB at the same time, first install the new
ESS PWB, then switch on the machine, GP 10. If the new ESS PWB installation is successful,
switch off the machine, then install the new drive PWB.
1. If possible, record the current software level by either:
• Printing the configuration report, GP 14.
• From the user interface Home screen, touch Device, then About. Scroll down to view
the Software Version.
2. Remove the upper rear cover, REP 28.5.
3. Remove the lower rear cover, REP 28.6.
