Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 80.21
Launch Issue
Repairs and Adjustments
REP 80.21 HCF Feeder
Parts List on PL 80.60, PL 80.61 and PL 80.62
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Move the HCF away form the machine.
2. Open the feeder top cover, PL 70.55 Item 7.
3. Remove two screws (1) that secure the HCF feeder to the rail, Figure 1.

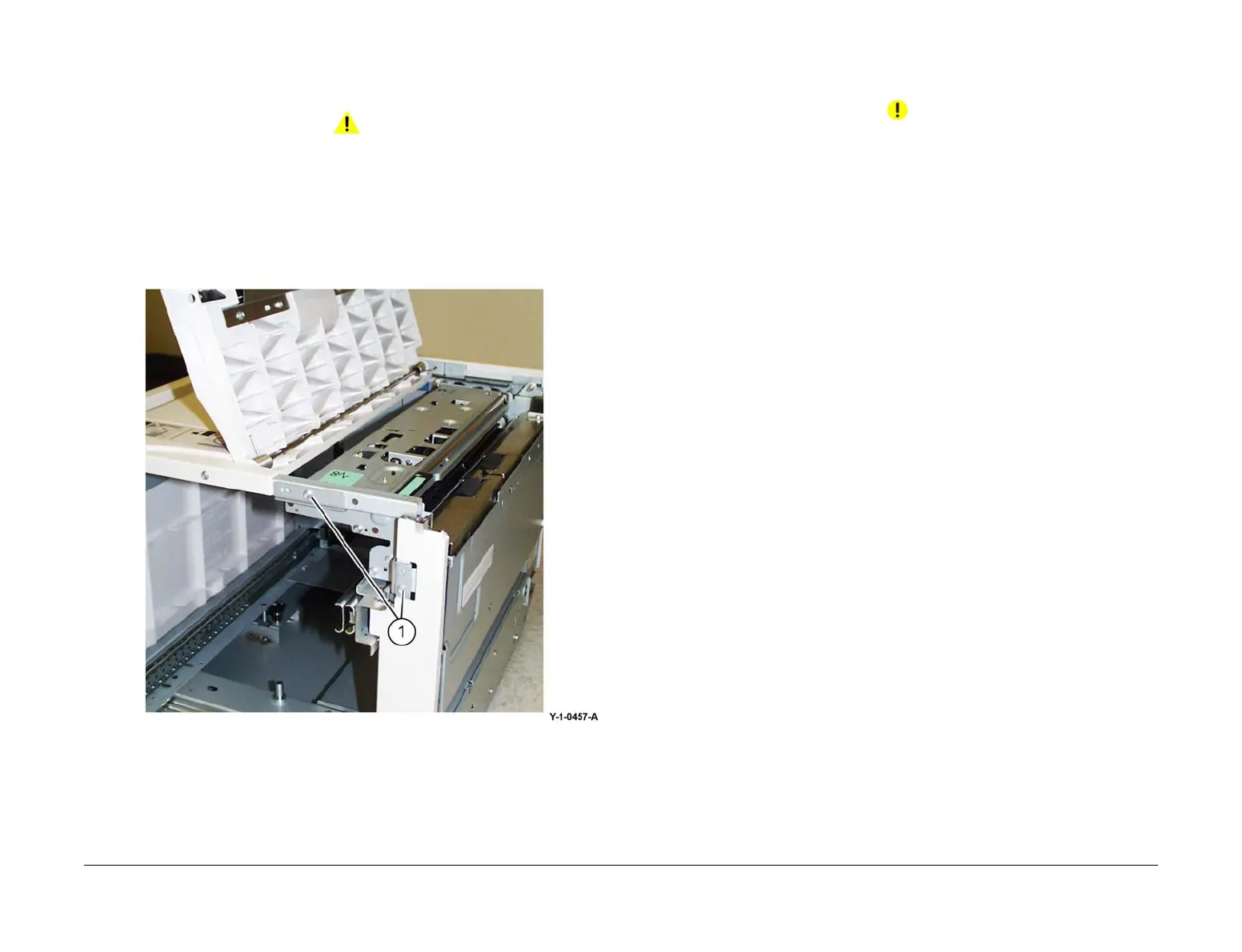

Figure 1 Feeder securing screws
4. Slide the HCF feeder forwards to remove.
Replacement
1. Position the HCF feeder guides onto the internal HCF rail.
2. Slide the HCF feeder back into the HCF until it seats.
CAUTION
Do not over tighten the HCF Feeder screws.
3. Reinstall the two securing screws.
