Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 13.33
Launch Issue
Repairs and Adjustments
REP 13.33 Booklet Rear Cover
Parts List on PL 13.50
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the booklet maker assembly from the finisher, REP 13.31.
2. Remove the booklet PWB cover, REP 13.35.
3. Prepare to remove the booklet rear cover, Figure 1:
a. Remove both self-tapping screws (1).
b. Remove the booklet side cover (2).

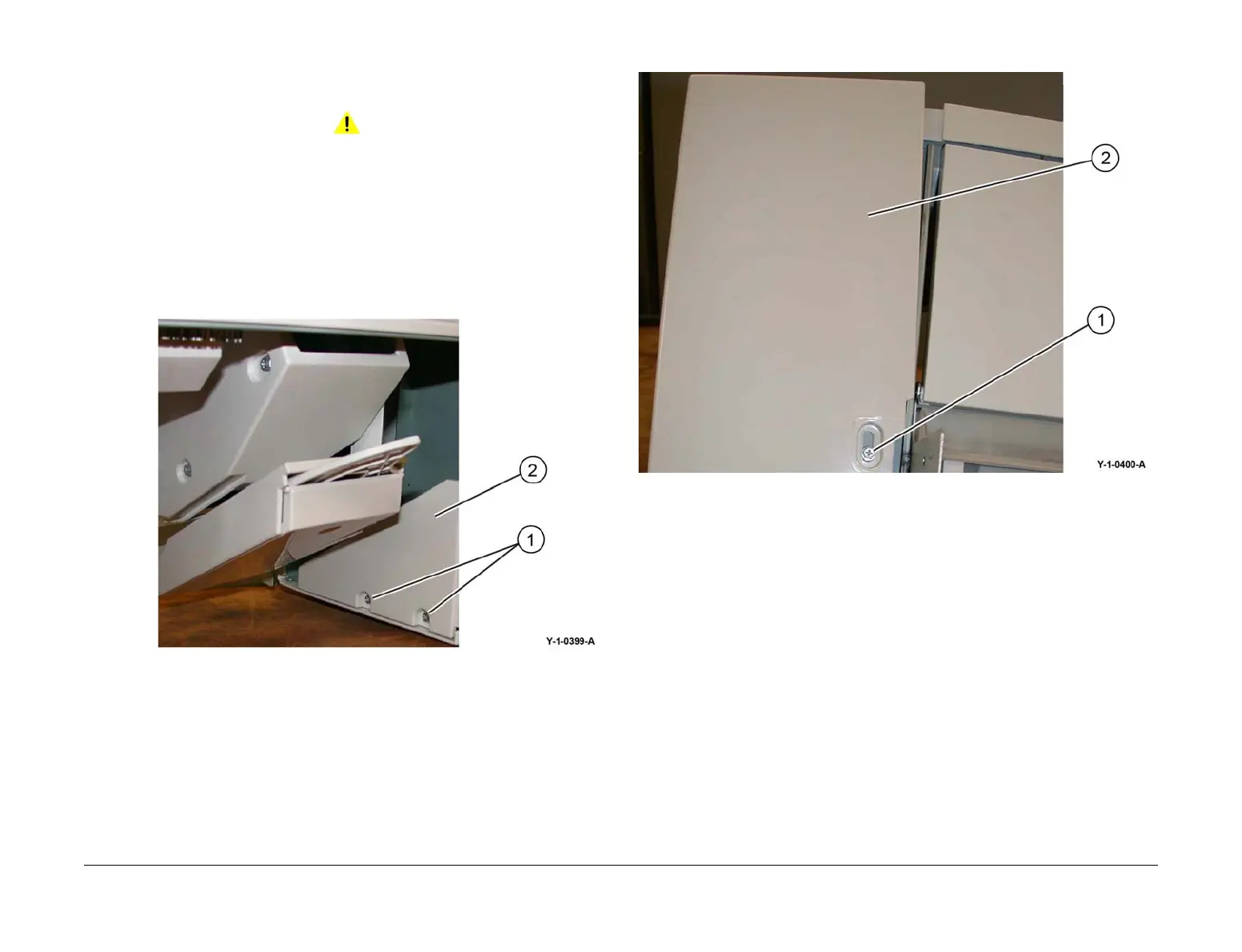

Figure 1 Preparation
4. Remove the screw (1), then the booklet rear cover (2), Figure 2.
Figure 2 Booklet rear cover removal
Replacement
The replacement is the reverse of the removal procedure.
