Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 90.2, REP 90.3
Launch Issue
Repairs and Adjustments
REP 90.2 Dispenser Pipe Assembly
Parts List on PL 90.05
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the drum cartridge, REP 90.4.
2. Remove the front cover, REP 28.1.
3. Remove the inner cover, REP 28.2.
4. Remove the print head assembly, REP 60.8.
5. Remove the AC housing assembly, REP 90.6.
6. Remove the dispenser pipe unit, REP 90.1.
7. Disengage two hooks (1), then remove the cartridge guide from the dispenser pipe
assembly, Figure 1.

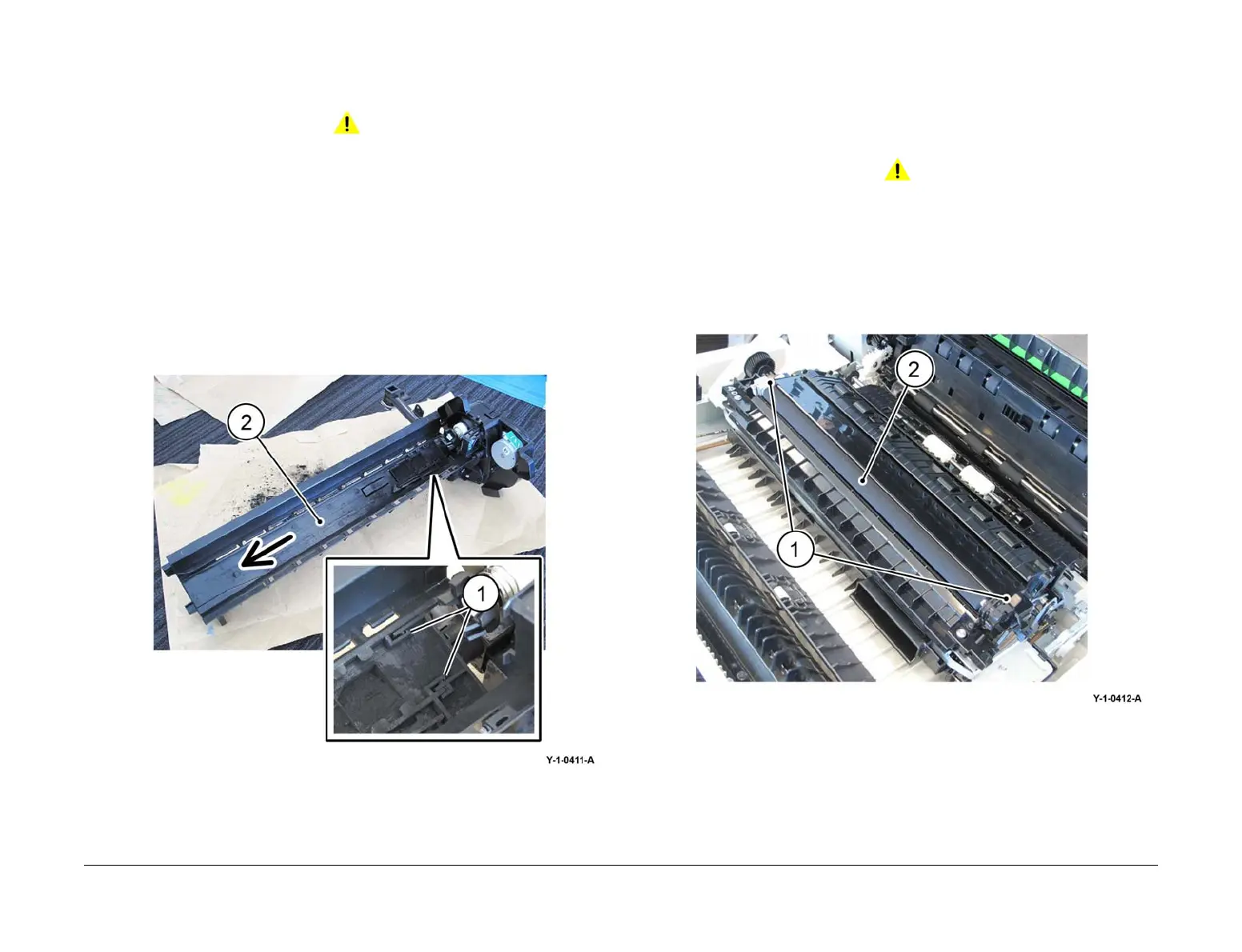

Figure 1 Dispenser pipe assembly removal
Replacement
The replacement is the reverse of the removal procedure.
REP 90.3 BTR Assembly
Parts List on PL 90.15
Removal
NOTE: A video of this procedure is available on the EDOC. The video is accessible from the
Library menu on the Service Interface.
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Open the LH transport assembly, PL 80.45 Item 1.
2. Disengage the hooks (1) on front and rear, then remove the BTR assembly (2), Figure 1.
Figure 1 BTR assembly removal
Replacement
1. The replacement is the reverse of the removal procedure.
2. If a new BTR assembly is installed, enter dC135 HFSI Counter. Reset the HFSI counter
954-820.
