Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 13.31
Repairs and Adjustments
Launch Issue
REP 13.31 Booklet Maker Assembly
Parts List on PL 13.10
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Prepare to remove the booklet maker assembly, Figure 1:
a. Unlatch the eject cover (1), then move it all the way to the left.
b. Remove the front and rear thumbscrews (2).

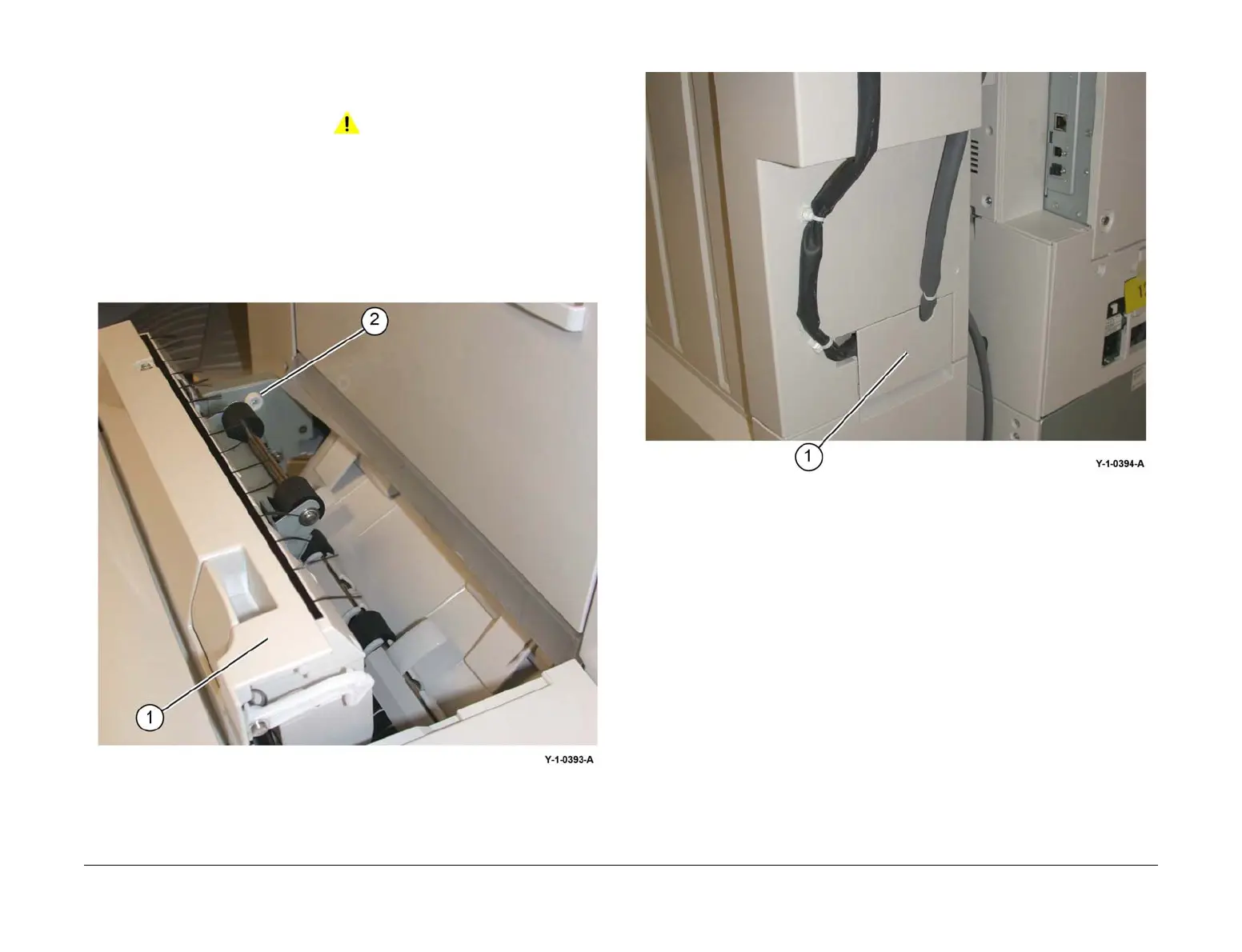

Figure 1 Preparation
2. Remove the connector cover (1), Figure 2.
Figure 2 Connector cover
To Next Page
