April 2017
4-35
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 5.10
Repairs and Adjustments
Launch Issue
REP 5.10 Feed/Nudger Roll Assembly
Parts List on PL 5.25
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
NOTE: A new feed/nudger roll assembly and retard roll assembly must both be installed at the
same time. Refer to REP 5.19.
1. Open the upper feeder assembly.
2. Remove the feed roll nudger roll assembly, Figure 1:
a. Release the hooks (1) of the feed front/rear handle.
b. Move the feed/nudger roll assembly (2) in the direction of the arrow, then remove it.

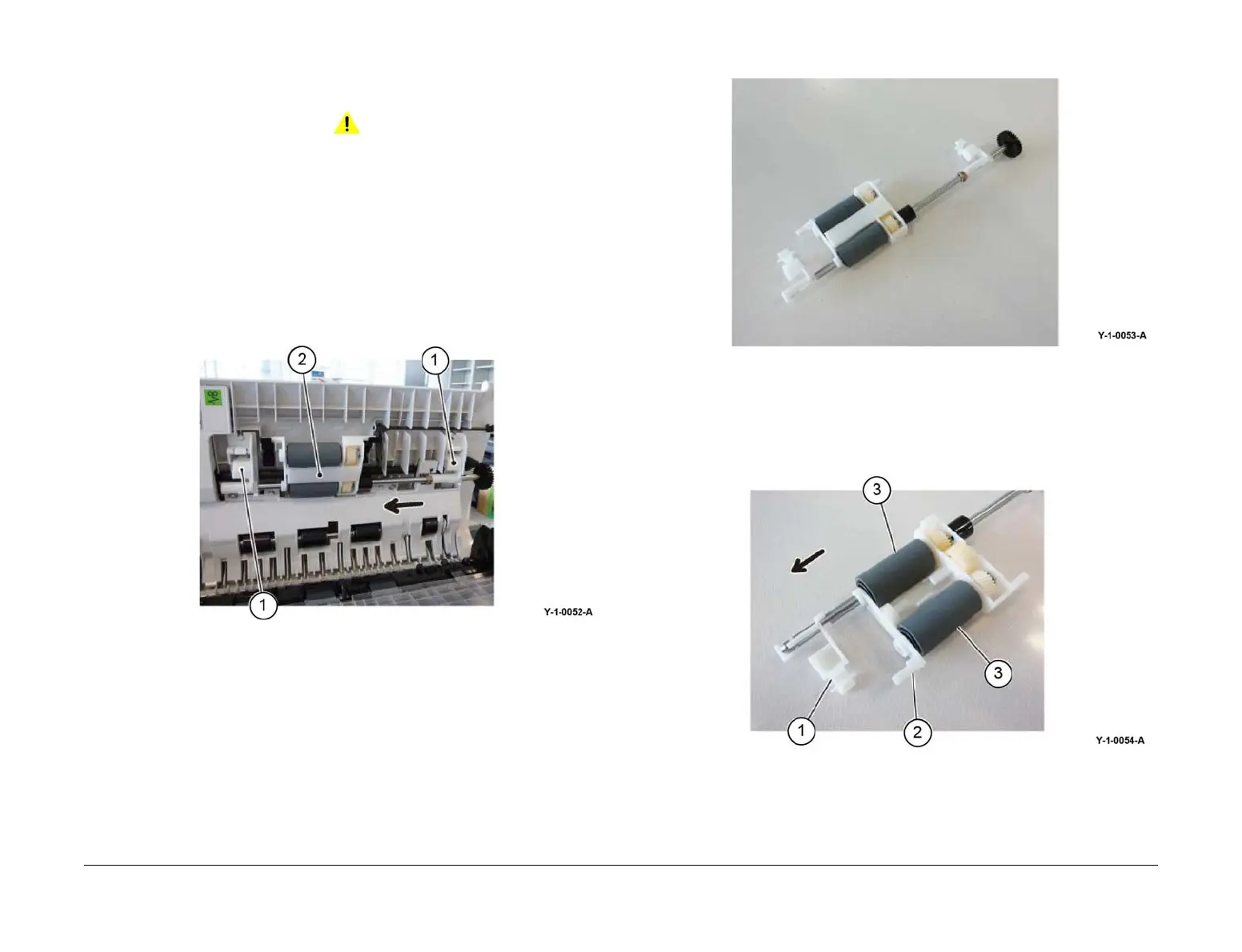

Figure 1 Assembly removal
NOTE: The removed feed/nudger roll assembly is shown in Figure 2.
Figure 2 Removed feed/nudger roll assembly
3. Remove the roll assemblies, Figure 3:
a. Release the hook to remove the feed front handle (1).
b. Release the hook to remove the nudger CRU housing (2).
c. Remove the roll assemblies (3).
Figure 3 Roll assembly removal
To Next Page
