REP 5.18 Sensor Bracket Assembly
Parts List on PL 5.50, PL 5.70
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the DADF front cover, REP 5.3
2. Remove the DADF rear cover, REP 5.4.
3. Remove the document tray, REP 5.14.
4. Remove the harness guide and wire harness, REP 5.11.
5. Remove the upper feeder assembly, REP 5.6.
6. Remove the DADF feeder assembly, REP 5.7.
7. Remove the retard chute assembly, REP 5.15.
8. Remove the invert chute assembly, REP 5.16.
9. Remove the DADF feed motor assembly, REP 5.12.
10. Remove the DADF takeaway roll, REP 5.17.
11. Remove the sensor bracket assembly, Figure 1:
a. Disconnect the connector (1).
b. Remove four screws (2).
c. Remove the wire harness (3) through the hole.
d. Remove the sensor bracket assembly (4).

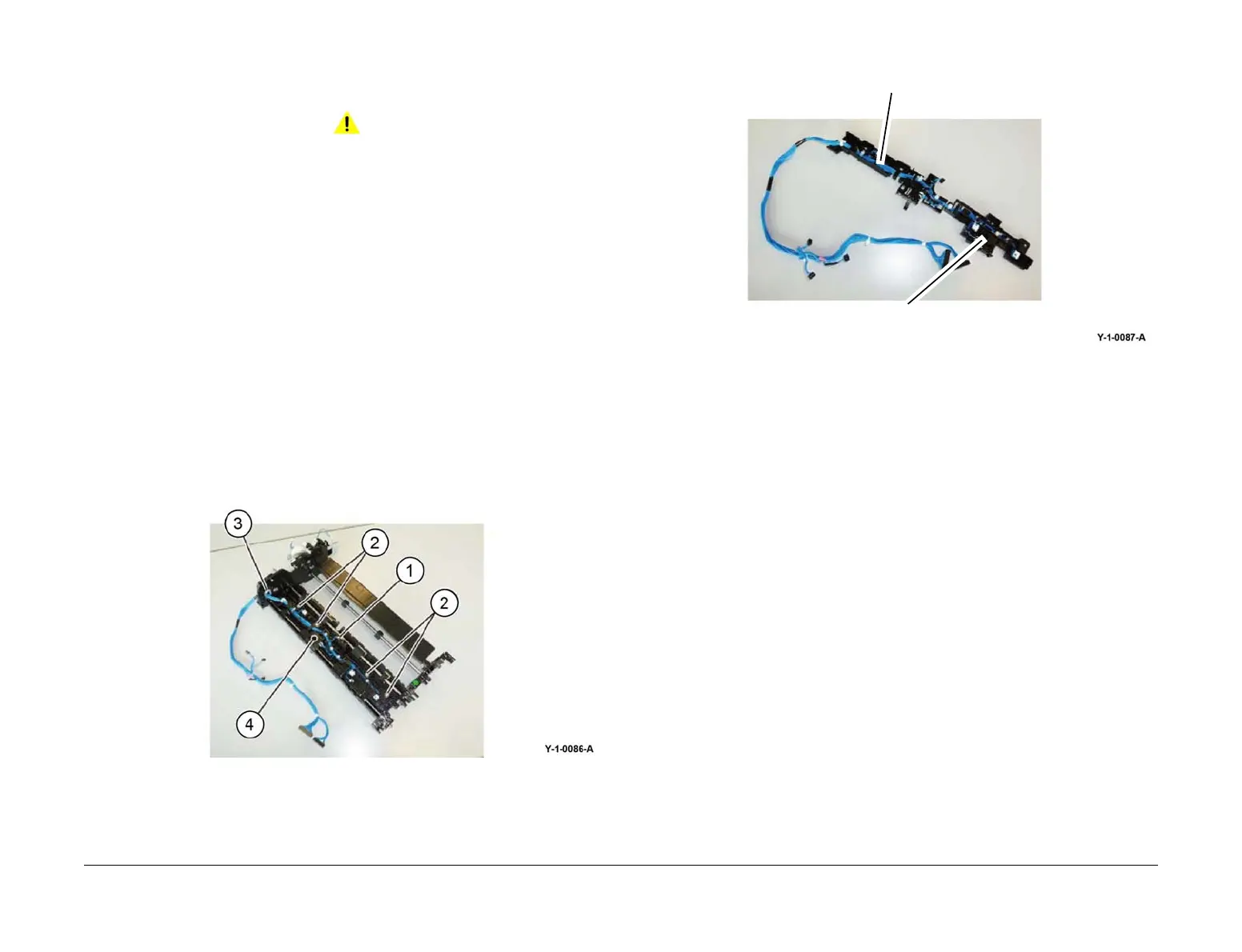

Figure 1 Sensor bracket assembly removal
NOTE: The removed sensor bracket assembly is shown in Figure 2.
Figure 2 Removed sensor bracket assembly
Replacement
The replacement is the reverse of the removal procedure.
Registration sensor bracket assembly
APS sensor bracket assembly
