April 2017
4-129
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 13.34, REP 13.35
Repairs and Adjustments
Launch Issue
REP 13.34 Booklet Top Cover
Parts List on PL 13.50
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the booklet front cover, REP 13.32.
2. Remove the booklet rear cover, REP 13.33.
3. Remove the booklet top cover, Figure 1:
a. Remove four screws (1).
b. Remove the booklet top cover (2).

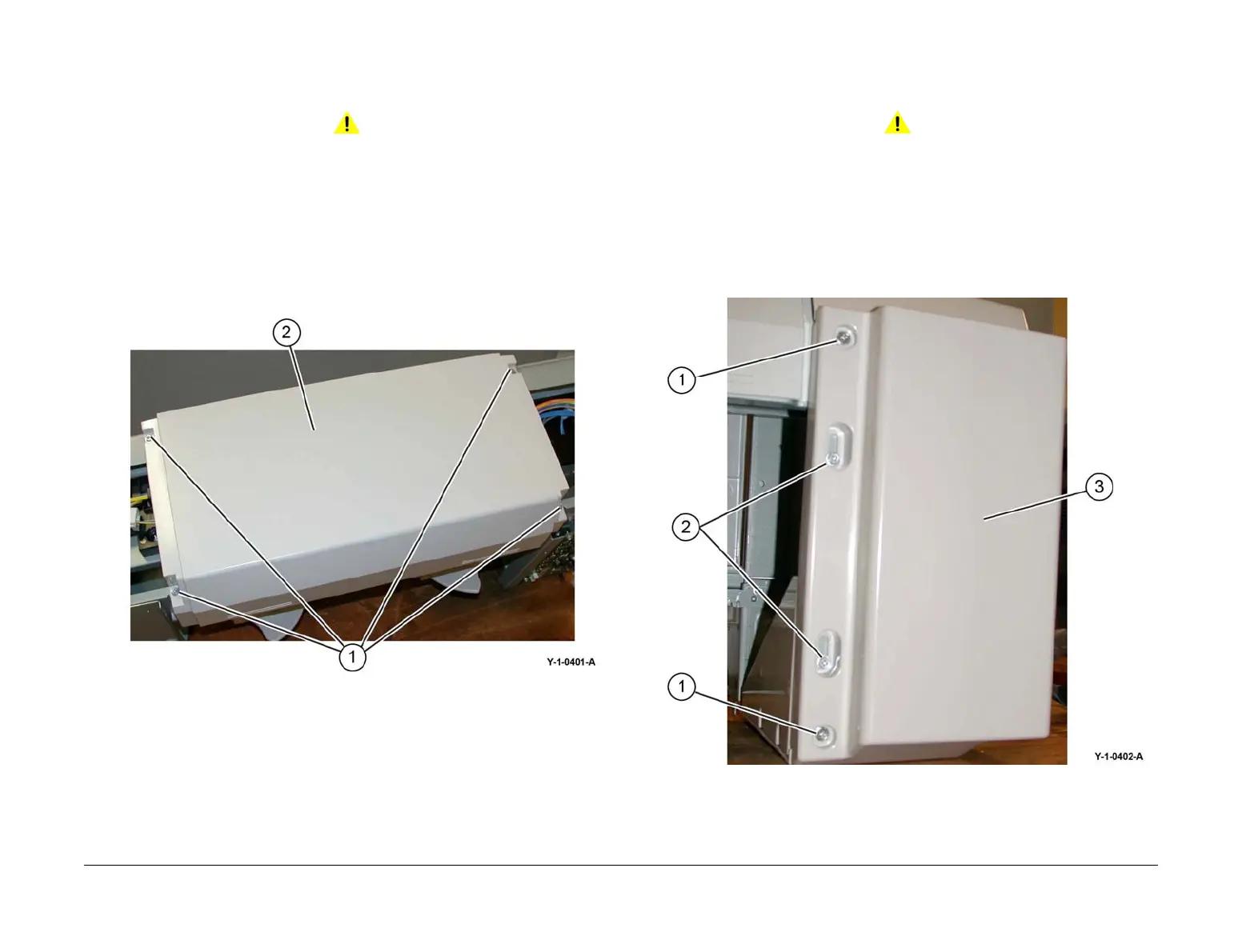

Figure 1 Booklet top cover removal
Replacement
The replacement is the reverse of the removal procedure.
REP 13.35 Booklet PWB Cover
Parts List on PL 13.50
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the booklet PWB cover, Figure 1:
a. Remove both self-tapping screws (1).
b. Remove both screws (2).
c. Remove the booklet PWB cover (3).
Figure 1 Booklet PWB cover removal
Replacement
The replacement is the reverse of the removal procedure.
