Xerox VersaLink B7030 Service Manual

April 2017
4-42
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 5.14, REP 5.15
Launch Issue
Repairs and Adjustments

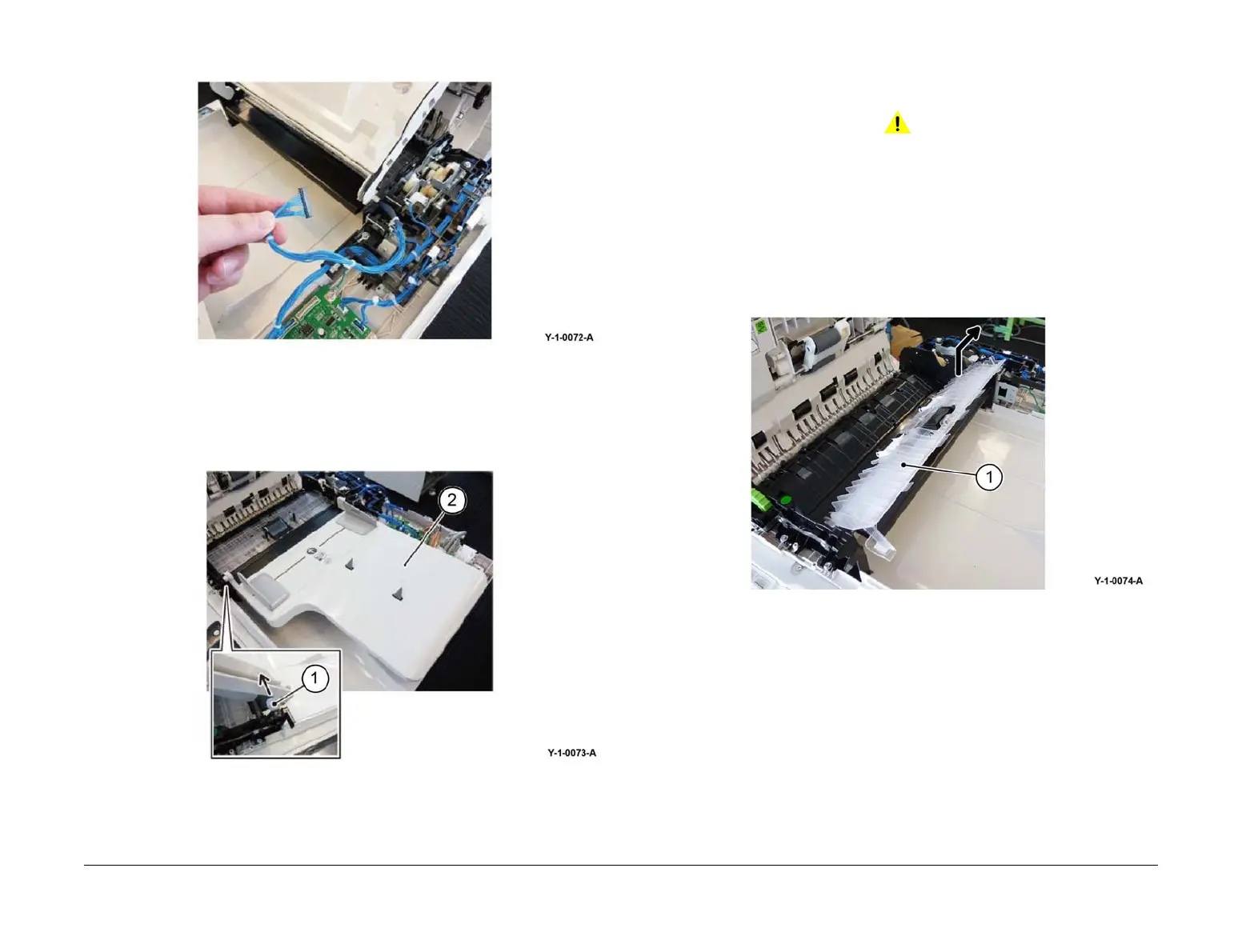

NOTE: The removed harness is shown in Figure 2.
Figure 2 Removed harness
4. Remove the document tray, Figure 3:
a. At the front, squeeze the boss (1) in the direction of the arrow, then remove it from
the hole.
b. Remove the document tray (2).
Figure 3 Document tray removal
Replacement
The replacement is the reverse of the removal procedure.
REP 5.15 Retard Chute Assembly
Parts List on PL 5.45
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the DADF front cover, REP 5.3.
2. Remove the DADF rear cover, REP 5.4.
3. Remove the document tray, REP 5.14.
4. Open the retard chute assembly.
5. Remove the retard chute assembly in the direction of the arrow, Figure 1.
Figure 1 Retard chute assembly removal
Replacement
The replacement is the reverse of the removal procedure.
