Xerox VersaLink B7030 Service Manual

April 2017
4-56
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 12.2
Launch Issue
Repairs and Adjustments
REP 12.2 Paddle Belts
Parts List on PL 12.10
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the integrated office finisher, REP 12.1.
2. Remove the compiler assembly, REP 12.19.

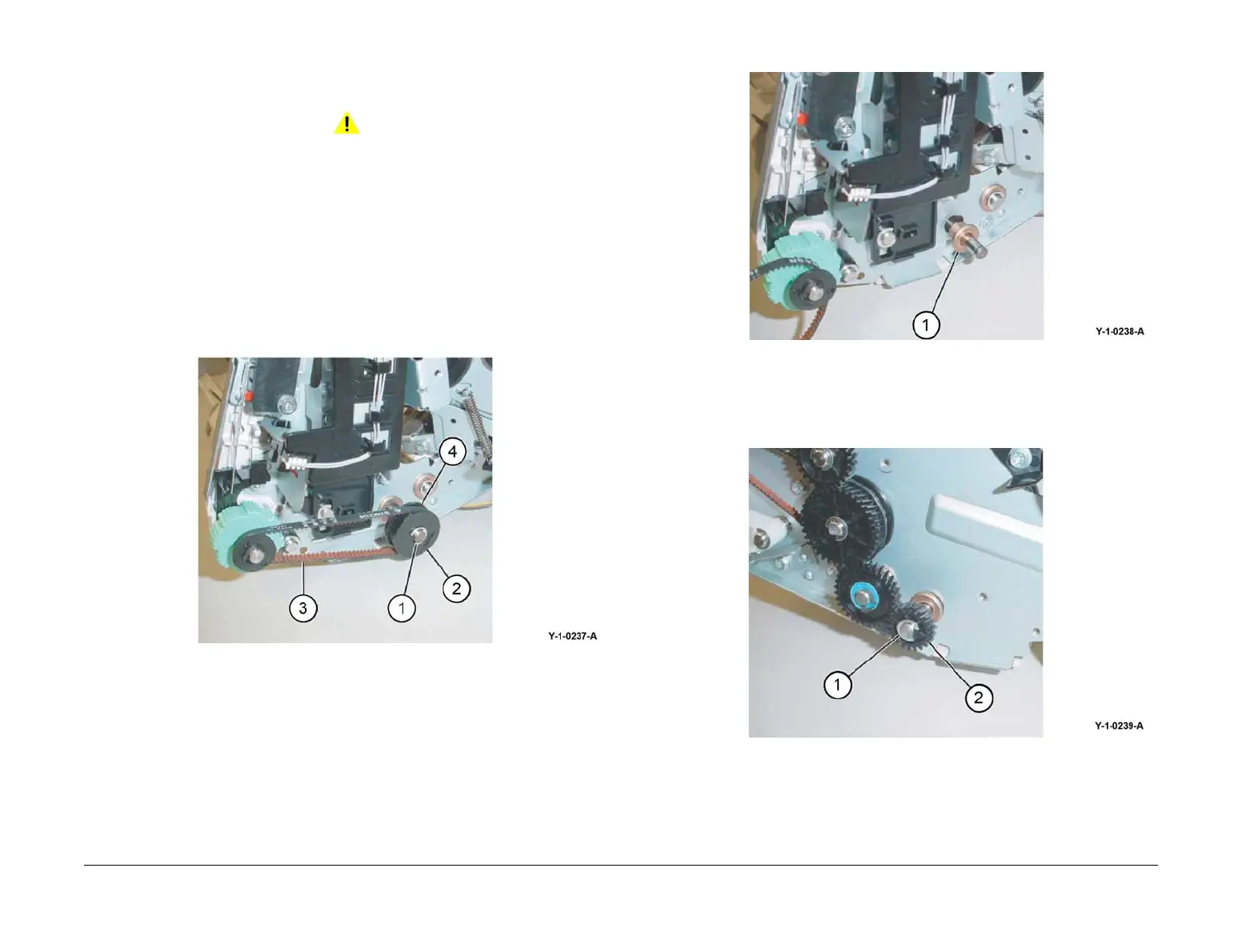

3. Remove the front pulley, Figure 1:
a. Remove the E-clip (1).
b. Remove the flange (2).
c. Disengage the front paddle belt (3) from the front pulley.
d. Remove the front pulley (4).
Figure 1 Front pulley removal
4. Remove the front bearing (1), Figure 2:
Figure 2 Front bearing removal
5. Remove the rear gear, Figure 3.
a. Remove the E-clip (1).
b. Remove the rear gear (2).
Figure 3 Rear gear removal
