Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 12.13
Launch Issue
Parts Lists

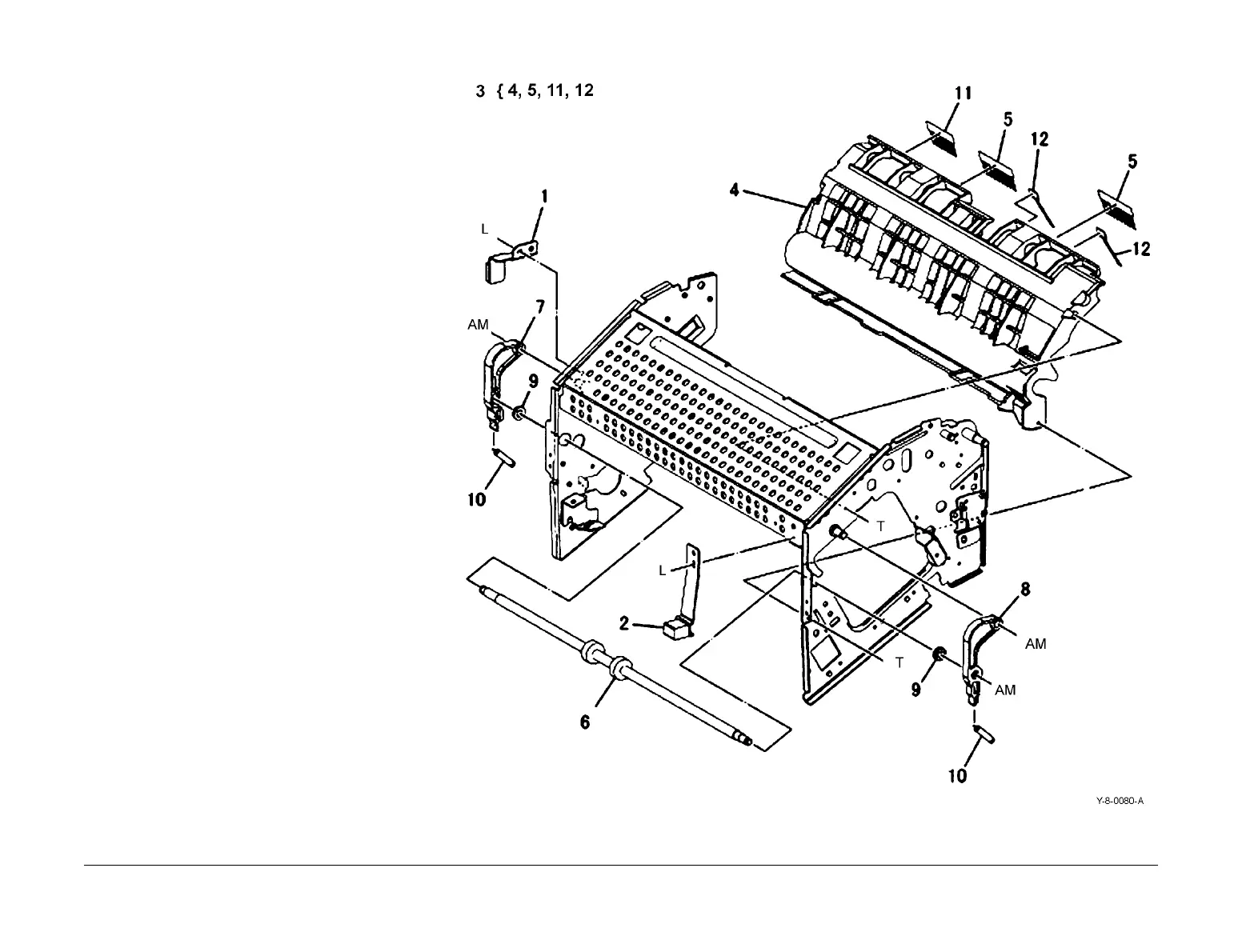

PL 12.13 Integrated Office Finisher
Base Assembly (4 of 5)
Item Part Description
1 – Bracket (Not Spared)
2 – Bracket (Not Spared)
3 054K42690 Upper chute assembly (REP 12.13)
4 – Upper chute (P/O PL 12.13 Item 3)
5 – Static eliminator (P/O PL 12.13
Item 3)
6 022K72782 Entry roll (REP 12.12)
7 – Rear arm (Not Spared)
8 – Front arm (Not Spared)
9 – Ball bearing (Not Spared)
10 – Spring (Not Spared)
11 – Static eliminator (P/O PL 12.13
Item 3)
12 – Paper guide (P/O PL 12.13 Item 3)
