Xerox VersaLink B7030 Service Manual

April 2017
5-19
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 5.55
Parts Lists
Launch Issue

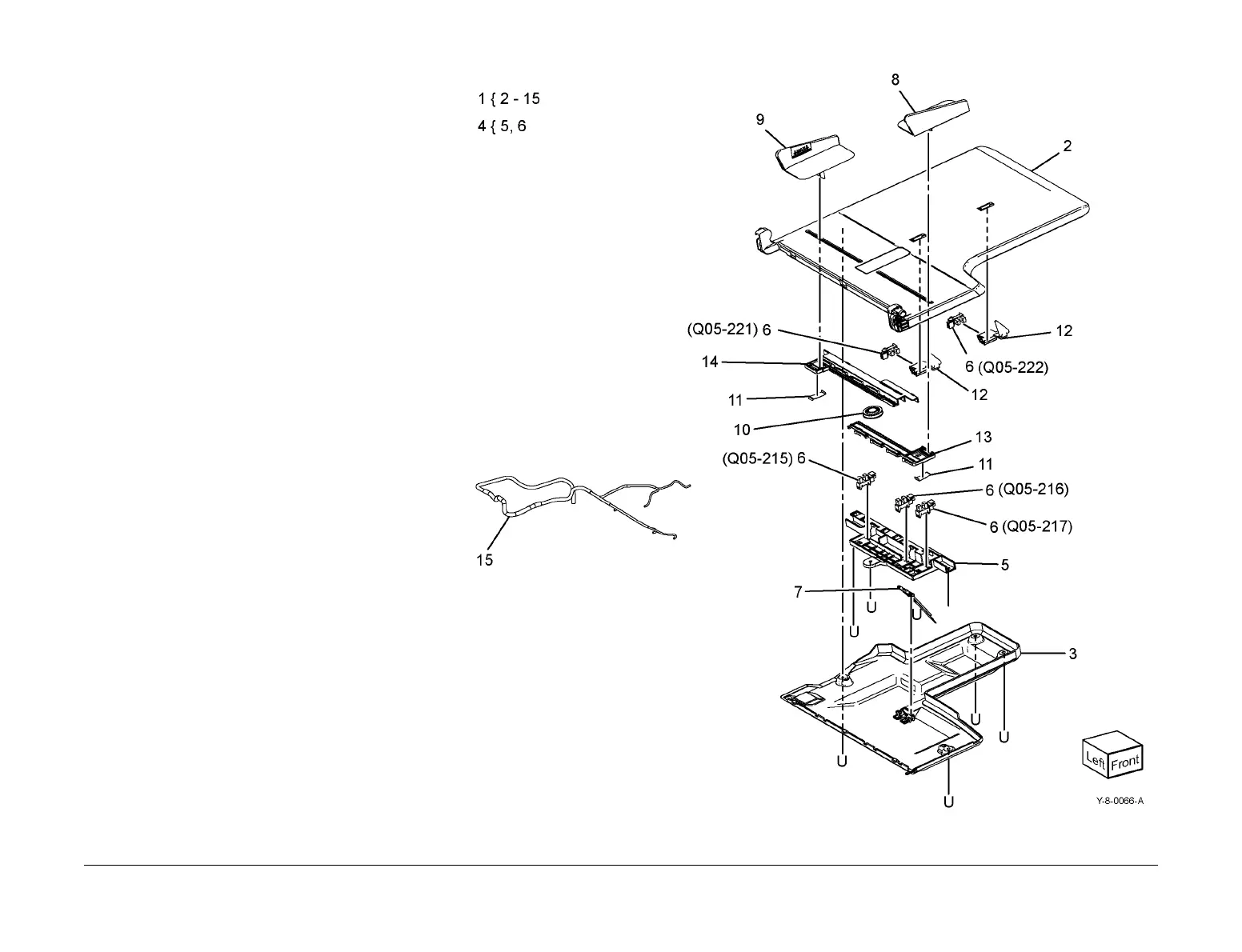

PL 5.55 Document Tray
Item Part Description
1 – Tray assembly (Not Spared)
2 – Upper tray (P/O PL 5.55 Item 1)
3 – Lower tray (P/O PL 5.55 Item 1)
4 – Sensor bracket assembly (P/O PL
5.55 Item 1)
5 – Sensor bracket (P/O PL 5.55 Item
4)
6 930W00121 Tray APS sensor 1 (Q05-215)/tray
APS sensor 2 (Q05-216)/tray APS
sensor 3 (Q05-217)/tray size
sensor 1 (Q05-221)/tray size
sensor 2 (Q05-222)
7 – Scatter guide assembly (P/O PL
5.55 Item 1)
8 – Front document guide (P/O PL 5.55
Item 1)
9 – Rear document guide (P/O PL 5.55
Item 1)
10 – Gear pinion (P/O PL 5.55 Item 1)
11 – Rack spring (P/O PL 5.55 Item 1)
12 – Actuator (P/O PL 5.55 Item 1)
13 – Front gear guide (P/O PL 5.55 Item
1)
14 – Rear gear guide (P/O PL 5.55 Item
1)
15 – Document tray harness (P/O PL
5.55 Item 1)
