Xerox VersaLink B7030 Service Manual

April 2017
4-142
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 40.1
Launch Issue
Repairs and Adjustments

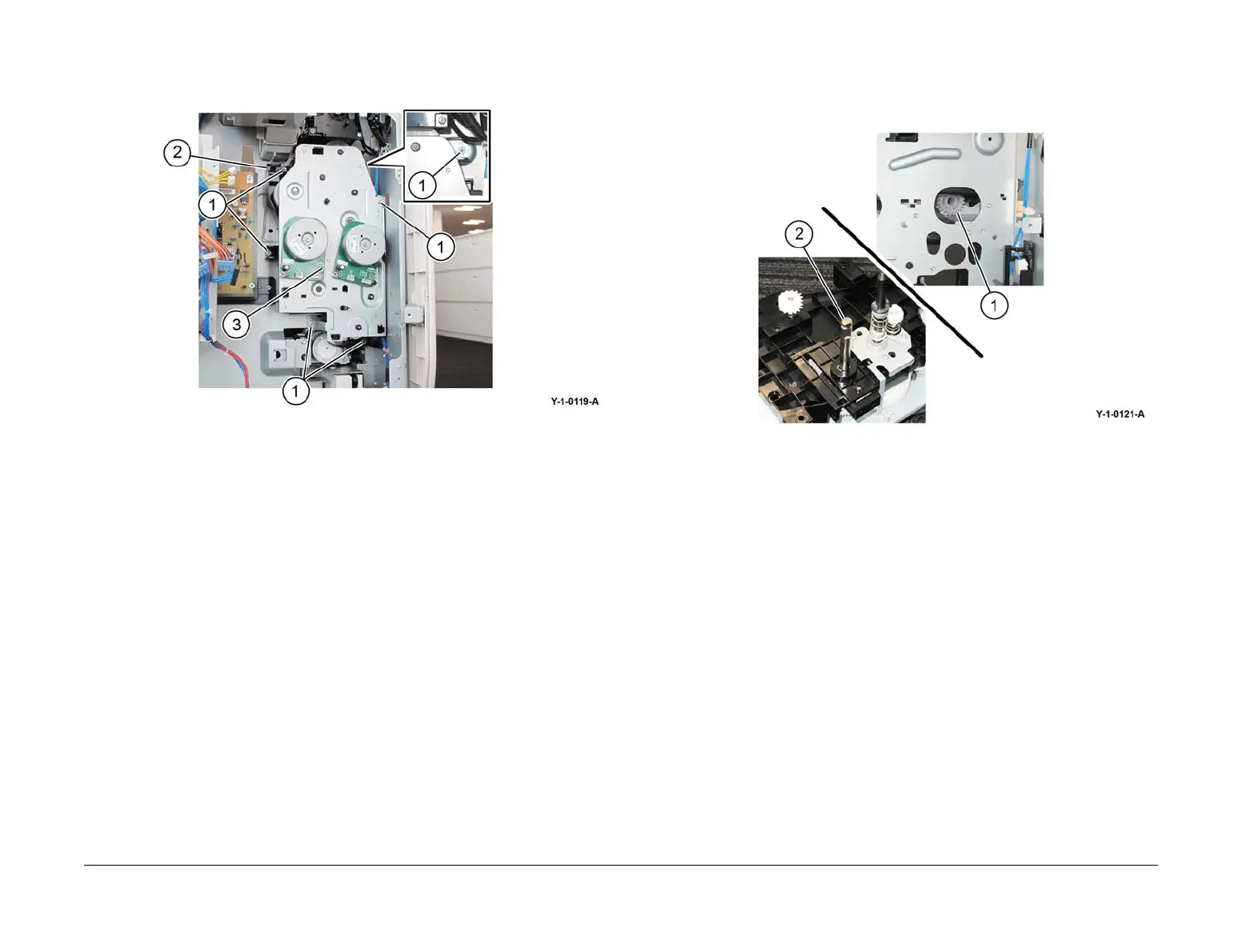

8. Remove the drive assembly, Figure 4:
a. Remove six screws (1).
b. Release the latch (2), then remove the drive assembly (3).
Figure 4 Drive assembly removal
Replacement
1. The replacement is the reverse of the removal procedure.
2. When installing the drive assembly, align the gear (1) with the flat on the shaft (2), Figure
5.
Figure 5 Gear alignment
