Xerox VersaLink B7030 Service Manual

April 2017
5-50
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 13.28
Launch Issue
Parts Lists

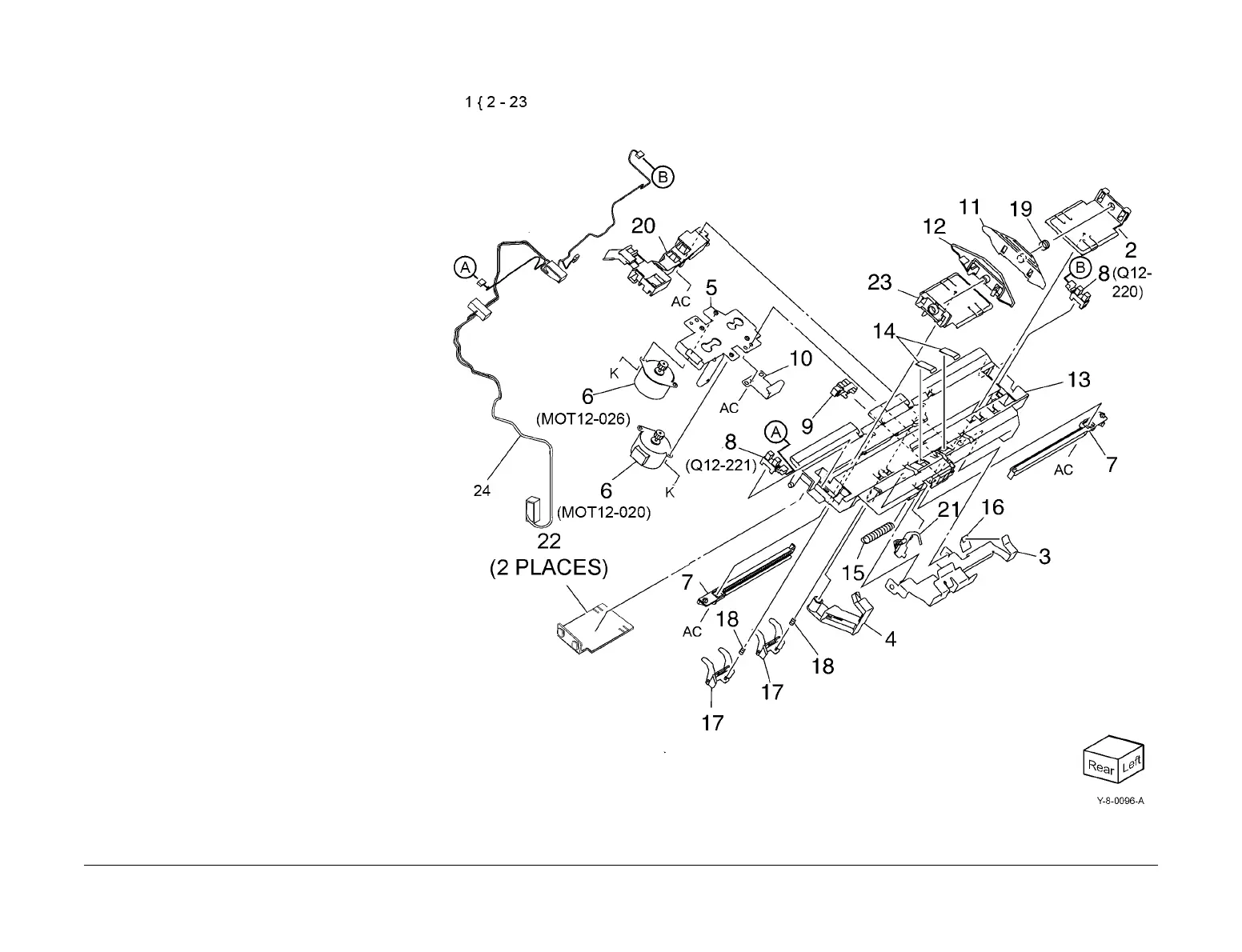

PL 13.28 Office Finisher LX Ejector (4
of 5)
Item Part Description
1 050K61092 Compiler tray assembly (REP
13.17)
2 – Rear tamper guide (P/O PL 13.28
Item 1)
3 – Compiler center paper guide (P/O
PL 13.28 Item 1)
4 – Compiler rear paper guide (P/O PL
13.28 Item 1)
5 – Bracket (P/O PL 13.28 Item 1)
6 127K58040 Front tamper motor (MOT12-020)/
rear tamper motor (MOT12-026)
(REP 13.26)
7 – Rack (front) (P/O PL 13.28 Item 1)
8 930W00111 Front tamper home sensor (Q12-
220)/rear tamper home sensor
(Q12-221) (REP 13.27)
9 930W00211 Compiler tray no paper sensor
(Q12-151) (REP 13.28)
10 – Spring (P/O PL 13.28 Item 1)
11 – Tamper front guide (P/O PL 13.28
Item 1)
12 – Tamper rear guide (P/O PL 13.28
Item 1)
13 – Compiler tray (P/O PL 13.28 Item
1)
14 – Paper paddle guide (P/O PL 13.28
Item 1)
15 – Spring (Not Spared)
16 – Paper end guide (P/O PL 13.28
Item 1)
17 – Paper tray guide (P/O PL 13.28
Item 1)
18 – Spring (P/O PL 13.28 Item 1)
19 – Spring (P/O PL 13.28 Item 1)
20 – Harness guide (P/O PL 13.28 Item
1)
21 – Actuator (P/O PL 13.28 Item 1)
22 – Tamper base (P/O PL 13.28 Item 1)
23 – Front tamper guide (P/O PL 13.28
Item 1)
24 962K60453 Wire harness
