Toner cartridge shutter actuator removal
1 Open the front door, and then remove the toner cartridge and imaging unit.

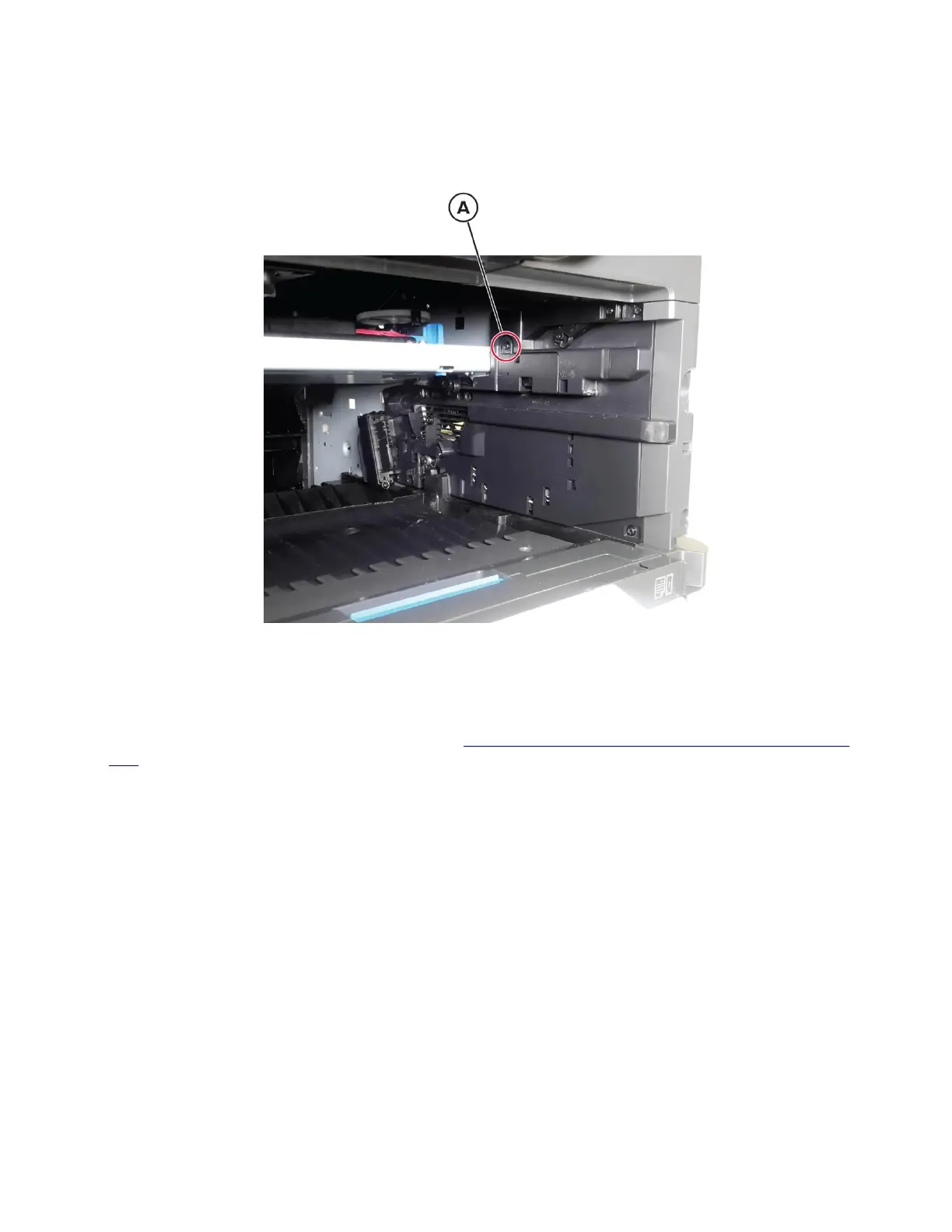

2 Remove the screw (A), and then remove the actuator.
Sensor (toner cartridge shutter) removal
1 Open the front door, and then remove the toner cartridge and imaging unit.
2 Remove the toner cartridge shutter actuator. See “Toner cartridge shutter actuator removal” on page
430.
