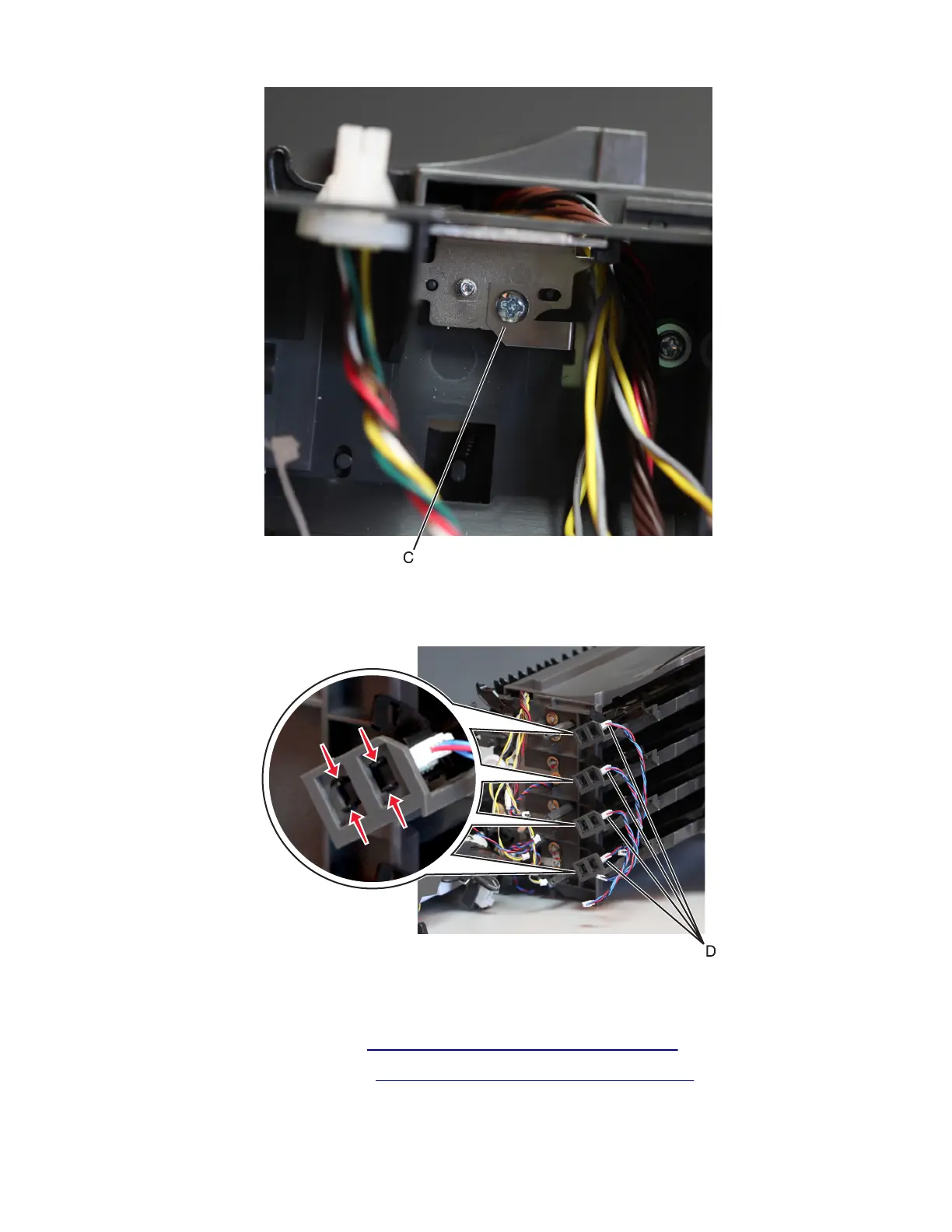

7 Slightly pull the left frame to access the sensors behind it.
8 Disconnect the sensor cable (D), and then remove the sensor.
Mailbox belt removal
1 Remove the mailbox top cover. See “Mailbox top cover removal” on page 648.
2 Remove the mailbox right cover. See “Mailbox right cover removal” on page 651.
4064
Parts removal
678
