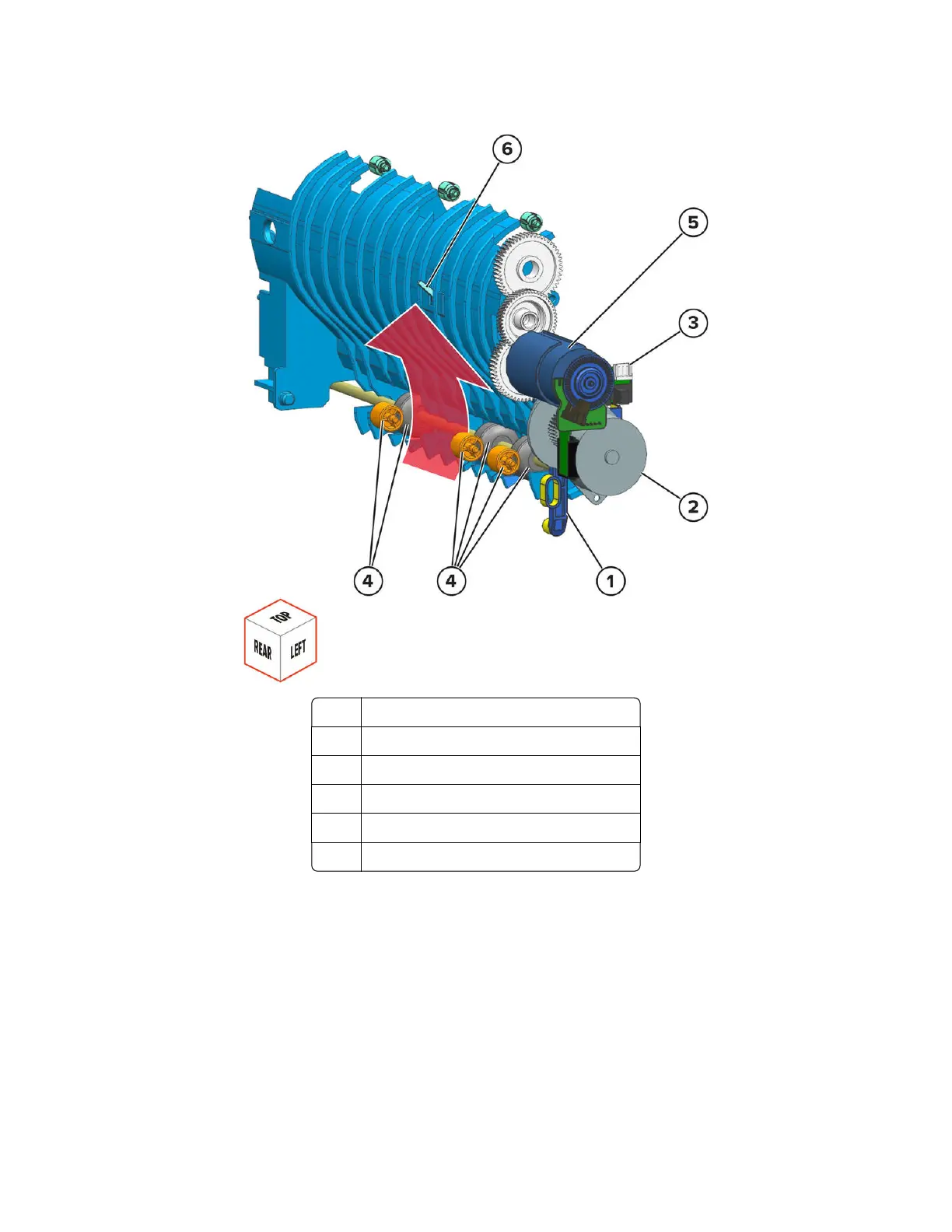

SF feed section
1 Diverter plunger
2 Motor (staple finisher diverter)
3 Sensor (staple finisher diverter plunger)
4 Entrance rollers
5 Motor (staple finisher transport)
6 Sensor (staple finisher pass‑through)
The feed section receives paper from the printer. The diverter plunger controls the movement of the diverter.
The diverter under the
finisher
switches to open up the paper path of the
finisher.
The motor (SF diverter) drives
the movement of the plunger. The sensor (SF diverter plunger) detects the position of the plunger.
The entrance rollers transport paper to the compiler section. The motor (SF transport) drives the entrance rollers.
The sensor (SF pass‑through) detects paper position along the rear door path.
