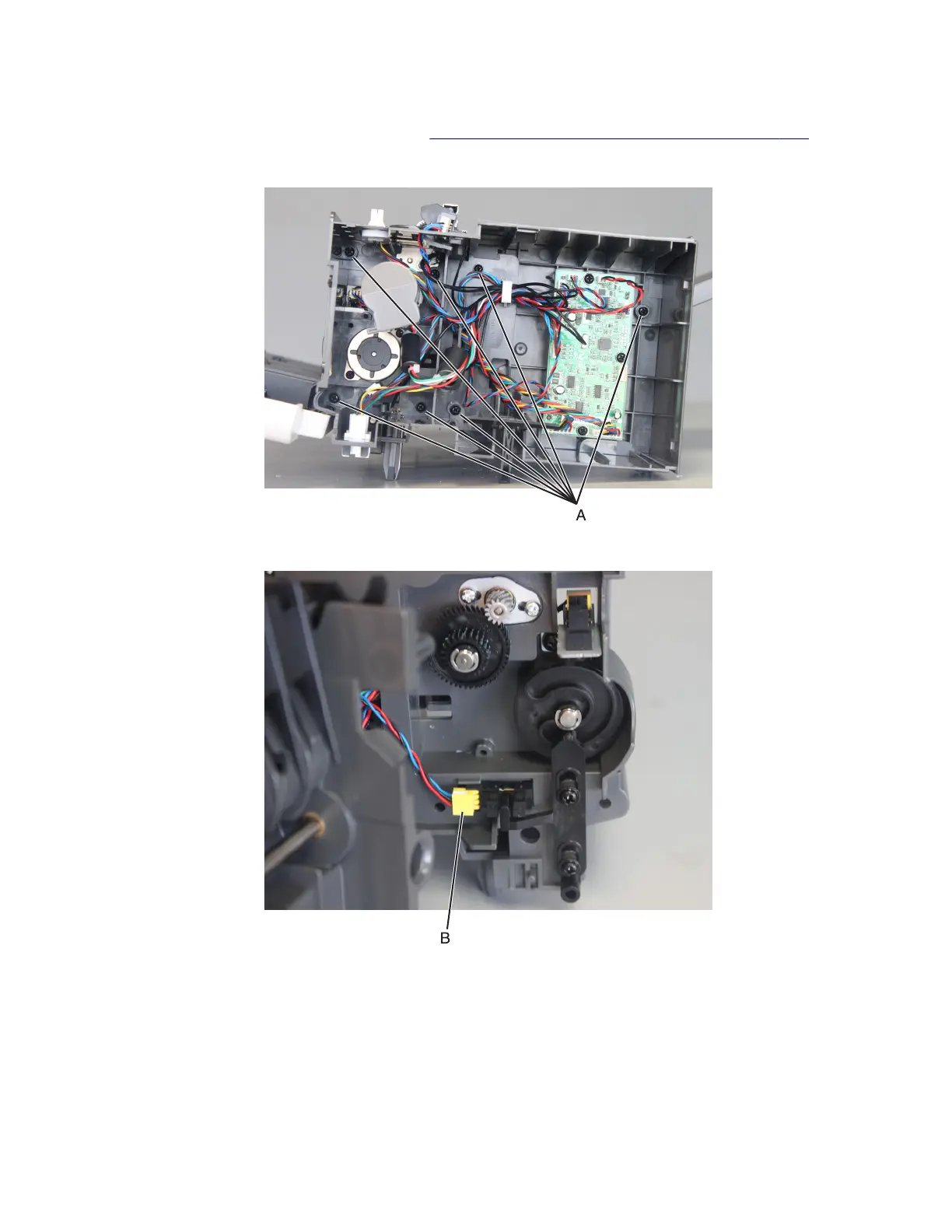

Sensor (OE diverter plunger) removal
1 Remove the output expander left cover. See “Output expander left cover removal” on page 522.
2 Remove the seven screws (A).
3 Slightly pull the frame to access the parts underneath it. Disconnect the cable (B).
4064
Parts removal
536
