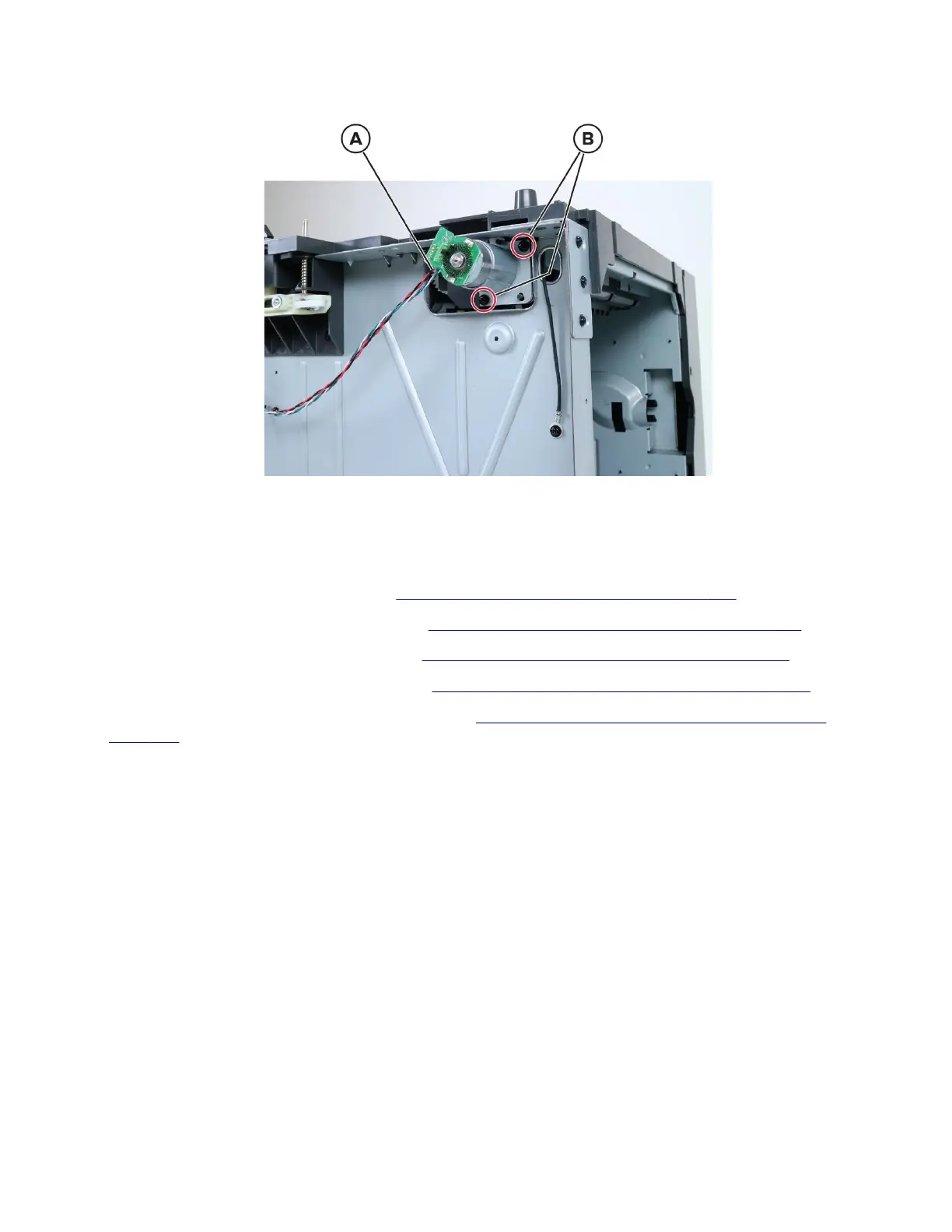

4 Disconnect the cable (A), and then remove the two screws (B).
5 Remove the motor.
2100-sheet tray top cover removal
1 Remove the 2100-sheet tray insert. See “2100-sheet tray insert removal” on page 472.
2 Remove the 2100-sheet tray rear cover. See “2100-sheet tray rear cover removal” on page 473.
3 Remove the 2100-sheet tray left cover. See “2100-sheet tray left cover removal” on page 473.
4 Remove the 2100-sheet tray right cover. See “2100-sheet tray right cover removal” on page 476.
5 Remove the motor (2100-sheet tray transport). See “Motor (2100-sheet tray transport) removal” on
page 478.
4064
Parts removal
479
