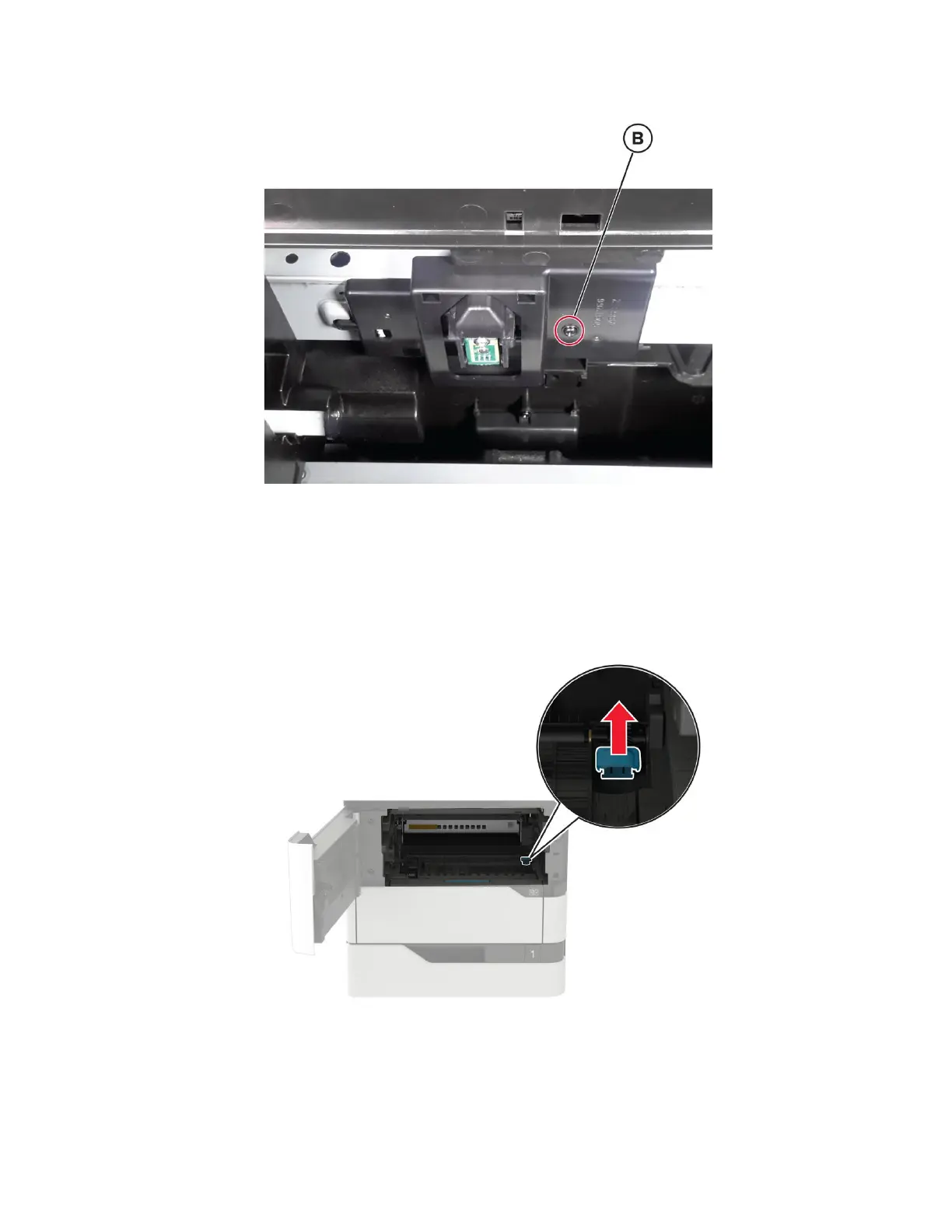

5 Inside the printer from the front side, remove the screw (B).
6 Remove the sensor.
Transfer roller removal
1 Open the front door, and then remove the toner cartridge and imaging unit.
2 Release the latch, and then remove the transfer roller.
4064
Parts removal
447
