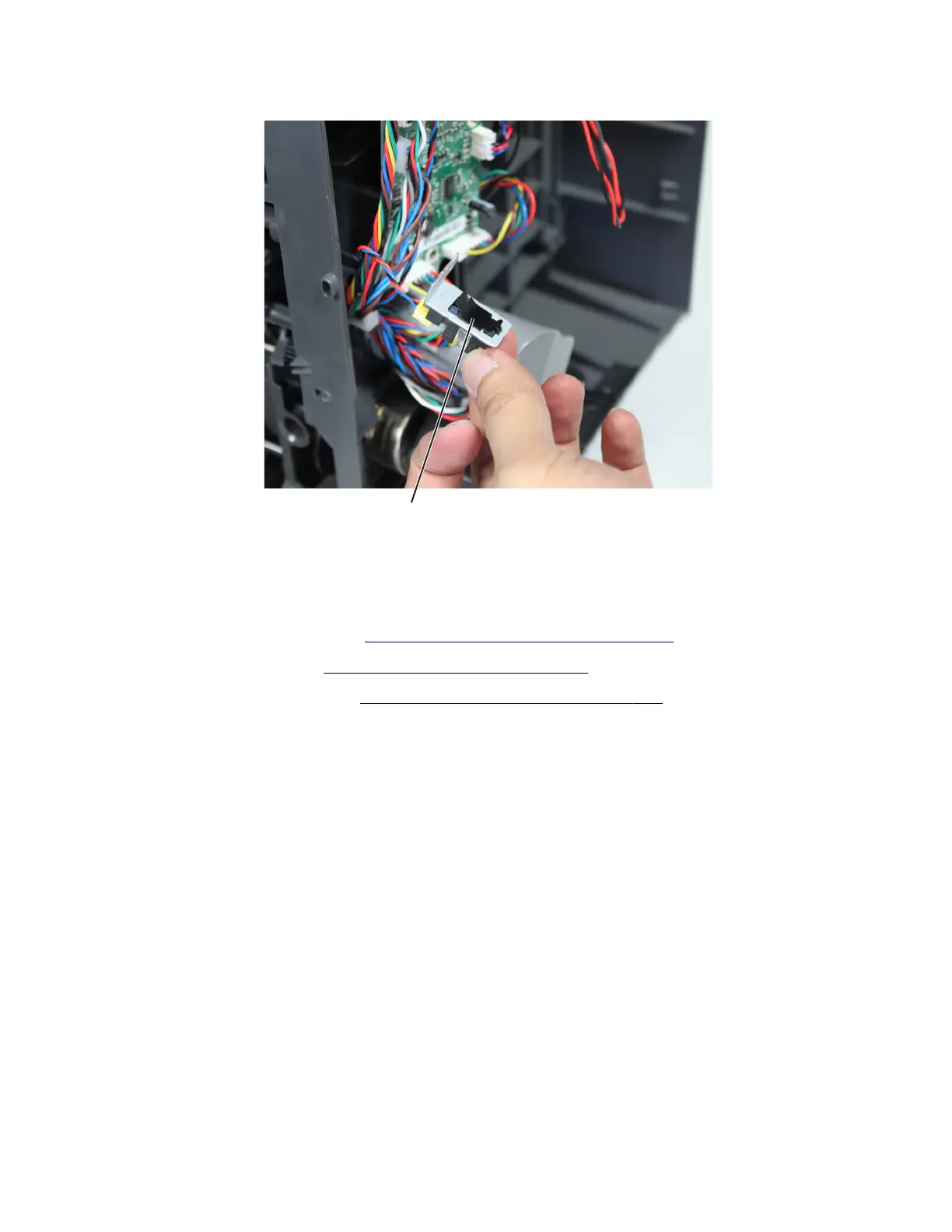

5 Disconnect the sensor cable, and then remove the sensor retainer (C).
C
6 Remove the sensor.
HCOE drive belt removal
1 Remove the HCOE right cover. See “HCOE right cover removal” on page 549.
2 Remove the HCOE latch. See “HCOE latch removal” on page 554.
3 Remove the HCOE bin pinion. See “HCOE bin pinion removal” on page 558.
4064
Parts removal
561
