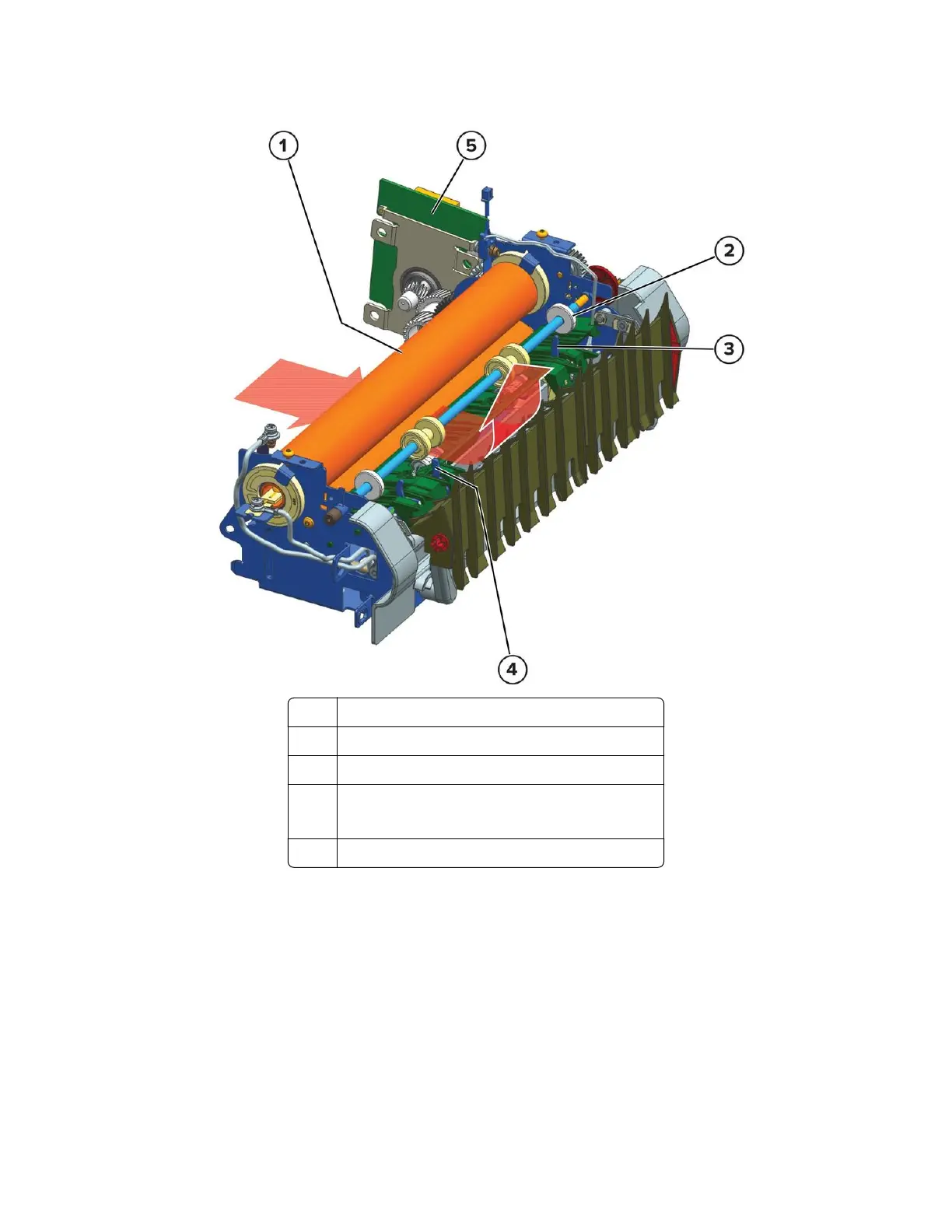

Fuser drive
1 Fuser roller/belt
2 Fuser exit roller
3 Sensor (fuser exit)
4 Sensor (narrow media)
Note: This parts is found in hot roll fusers only.
5 Motor (fuser)
As the paper passes the fuser roller, heat and pressure are applied to permanently bond the toner to the paper.
The fuser exit roller transports the paper to the exit path. The sensor (fuser exit) detects the paper. The sensor
(narrow media) is triggered if the paper is narrow.
The motor (fuser) drives the fuser roller and fuser exit roller.
4064
Theory of operation
