HCOE controller board removal
1 Remove the HCOE left cover. See “HCOE left cover removal” on page 550.

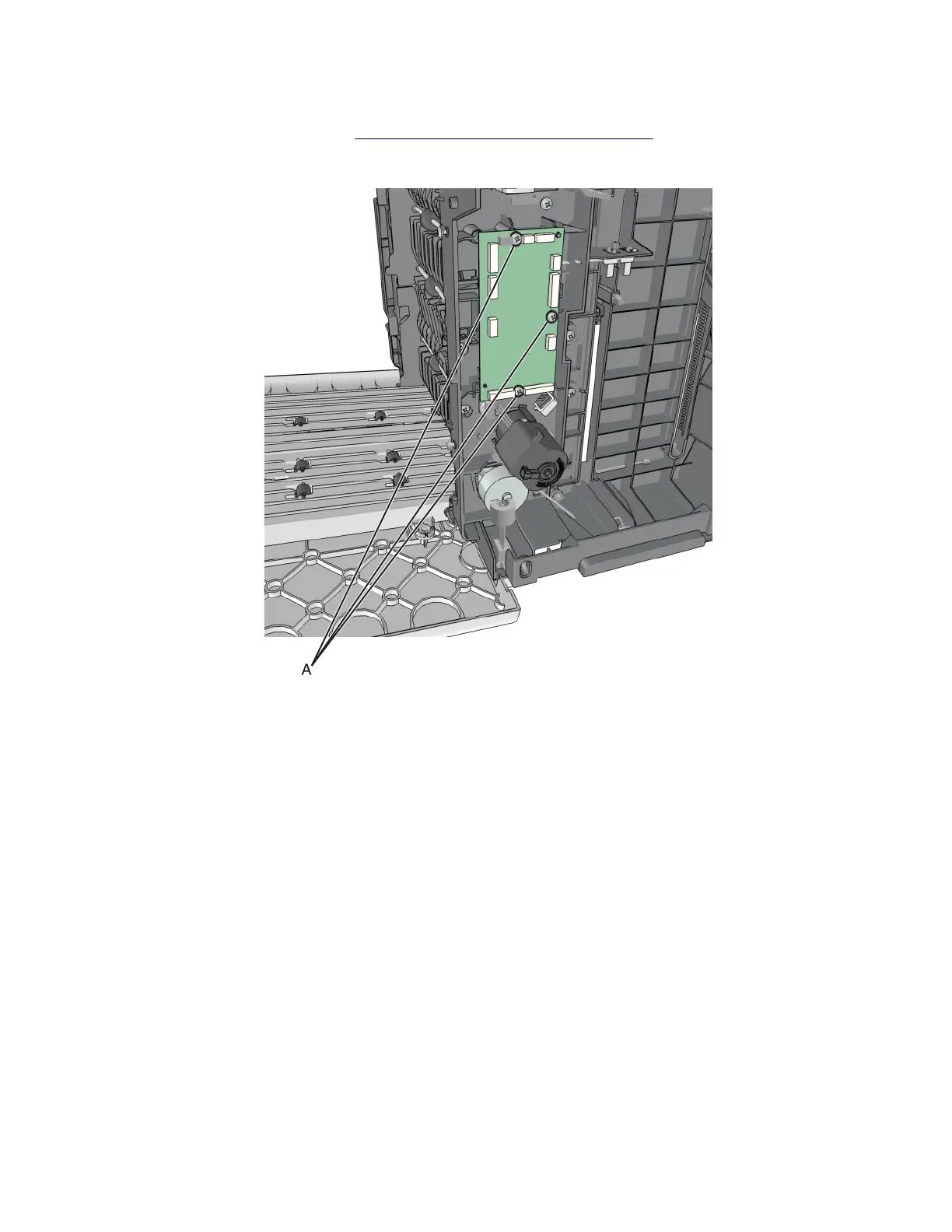

2 Disconnect all the cables from the controller board, and then remove the three screws (A).
3 Remove the controller board.
4064
Parts removal
552
