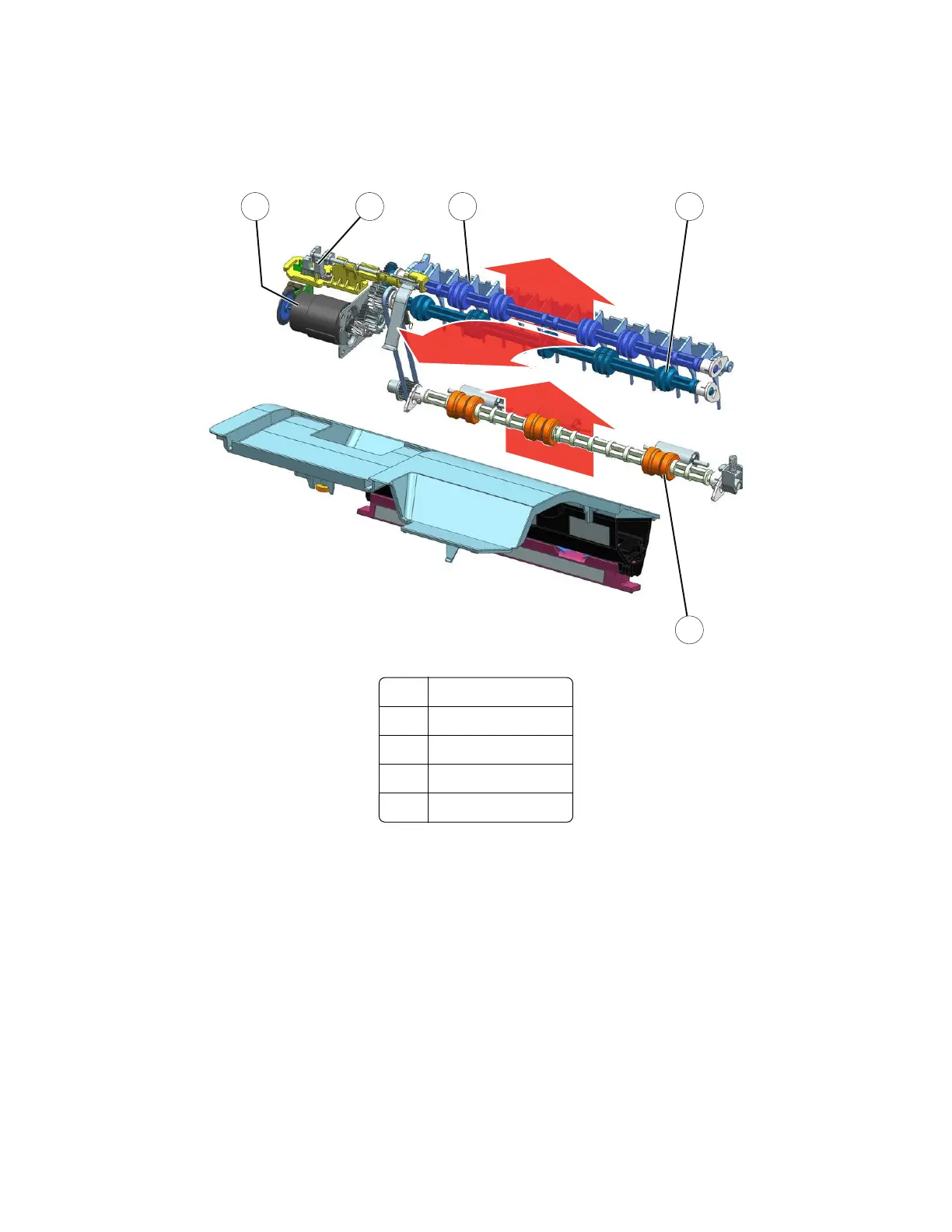

Upper redrive drive

Exit path

2345

1 Lower redrive roller

2 Upper redrive roller

3 Diverter

4 Sensor (bin full)

5 Motor (redrive)

Paper is ejected by the upper redrive rollers to the bin. By default, the diverter will direct the paper toward the

bin. If a plunger changes the position of the diverter, then the paper will move upwards to the optional bin.

The redrive rollers are controlled by the motor (redrive). The sensor (bin full) senses if the bin is already full.

4064

Theory of operation

879
