HCOE bin full flag removal
1 Remove the HCOE top cover. See “HCOE top cover removal” on page 545.
2 Remove the HCOE sensor cover. See “HCOE sensor cover removal” on page 547.

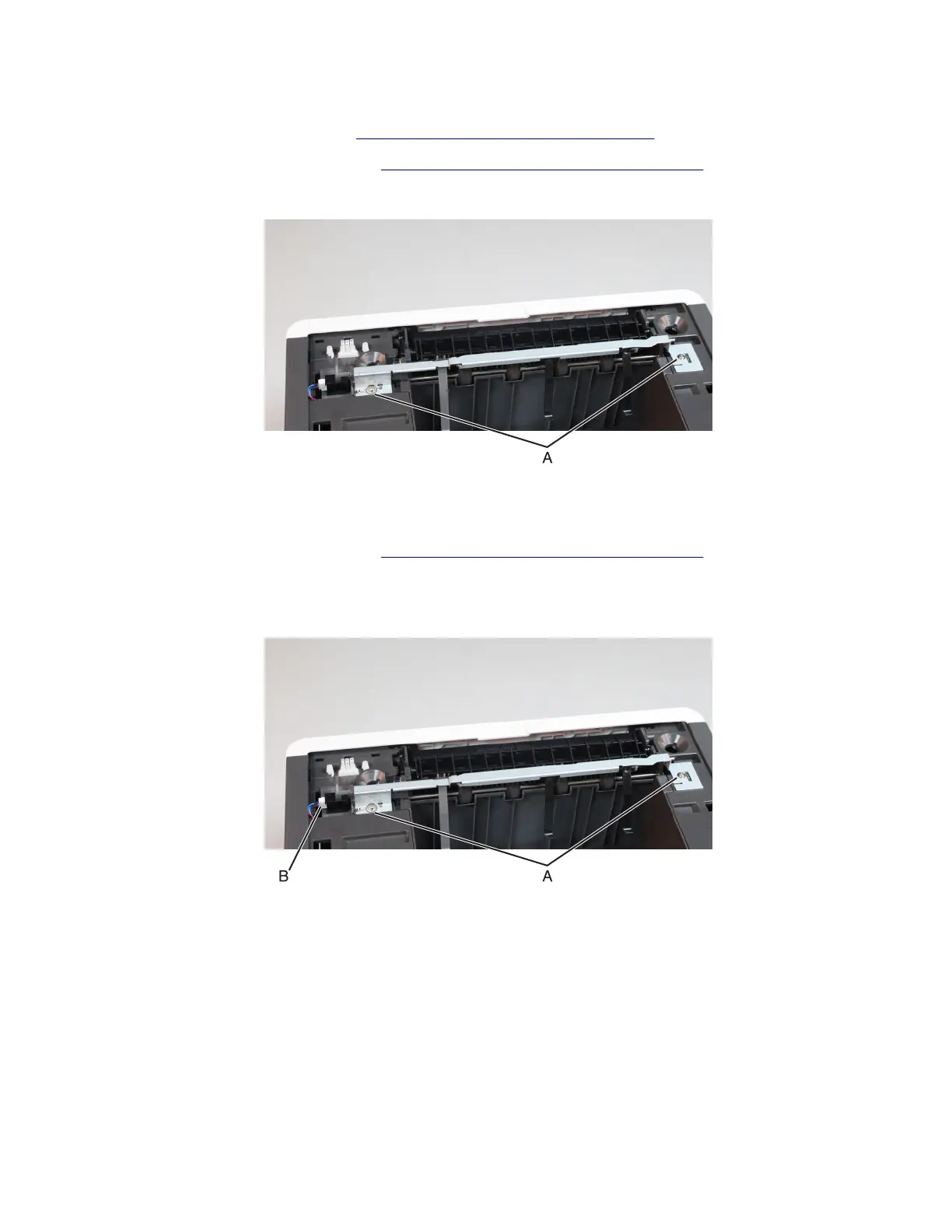

3 Remove the two screws (A), and then remove the bin full
flag.
Sensor (HCOE bin full) with flag removal
1 Remove the HCOE sensor cover. See “HCOE sensor cover removal” on page 547.
2 Remove the two screws (A), and then release the bracket.
3 Disconnect the cable (B), and remove the sensor with
flag.
