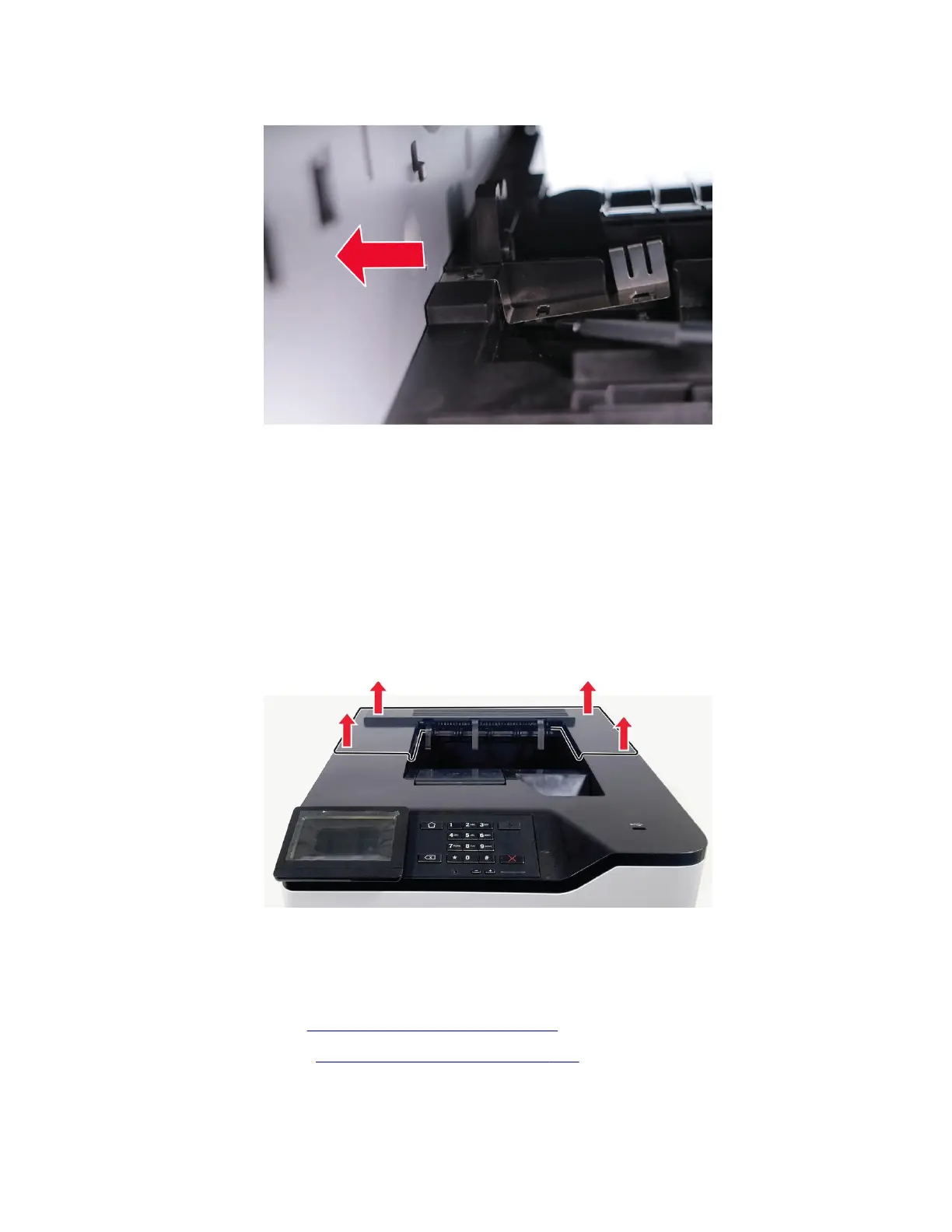

Installation note: Make sure the contact is properly engaged with its posts.
Top side removals
Top cover removal
1 Lift the cover to release.
2 Remove the cover.
Printhead removal
1 Remove the top cover. See “Top cover removal” on page 455.
2 Remove the right cover. See “Right cover removal” on page 420.
4064
Parts removal
455
