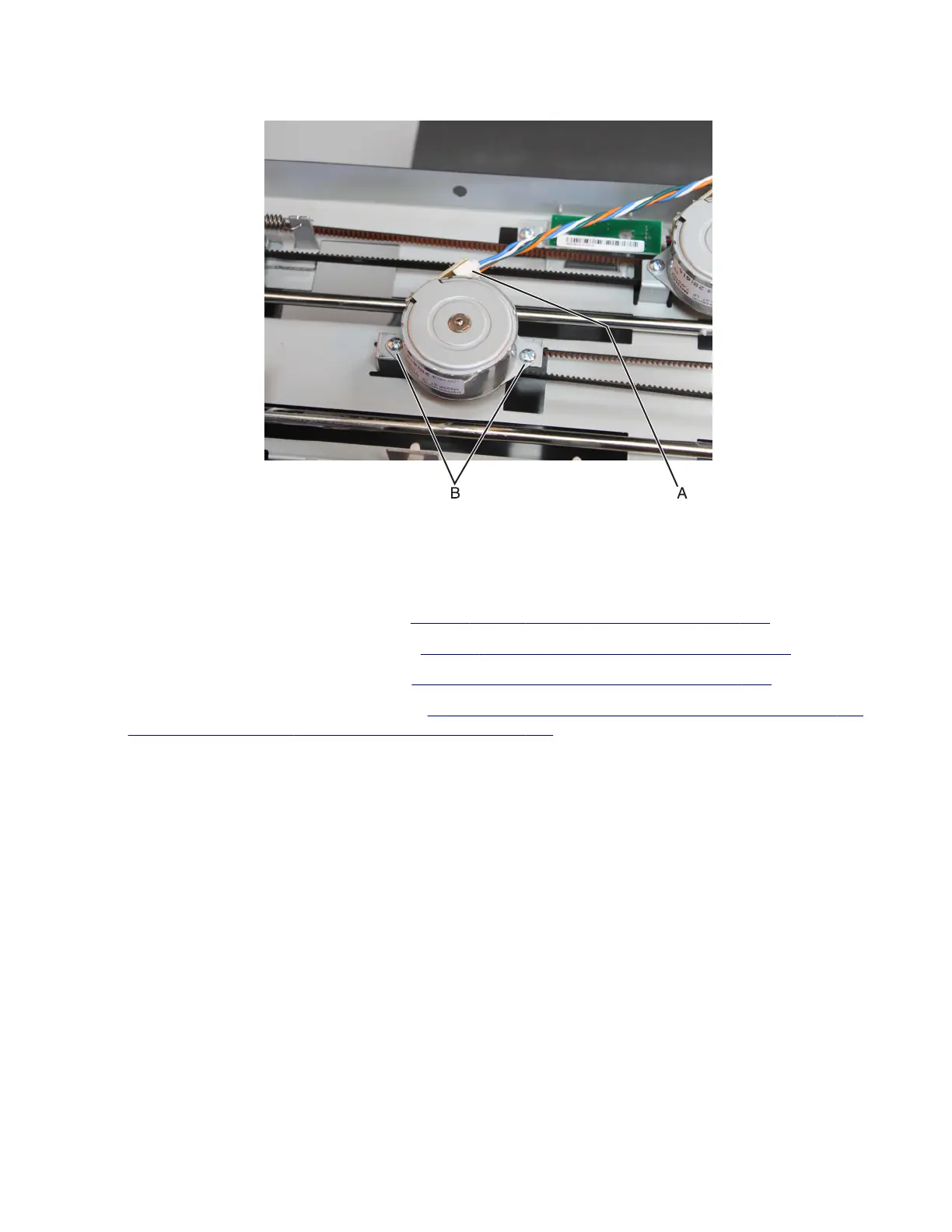

4 Disconnect the cable (A), and then remove the two screws (B).
5 Remove the motor.
Tamper drive belt removal
1 Remove the staple
finisher
left cover. See “Staple
finisher
left cover removal” on page 584.
2 Remove the staple finisher right cover. See “Staple finisher right cover removal” on page 586.
3 Remove the staple
finisher
top cover. See “Staple
finisher
top cover removal” on page 588.
4 Release the motor engaged to the belt. See “Motor (staple finisher right tamper) removal” on page 619
or
“Motor (staple finisher left tamper) removal” on page 619.
4064
Parts removal
620
